- Press the drive carrier latch to disengage the drive.

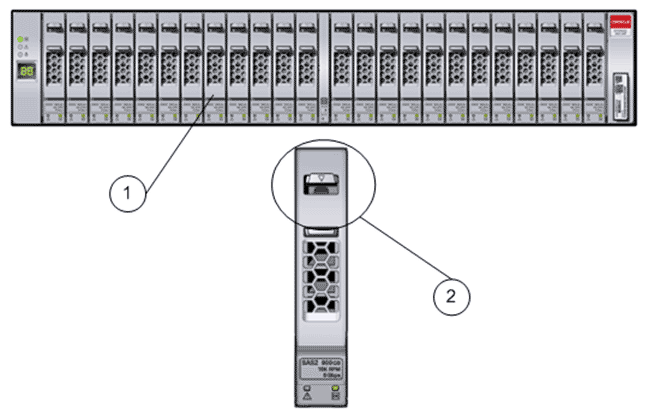

Figure 1: A DE2-24P Drive Enclosure drive and drive carrier latch
- Legend
1 A drive 2 Drive carrier latch (closeup)

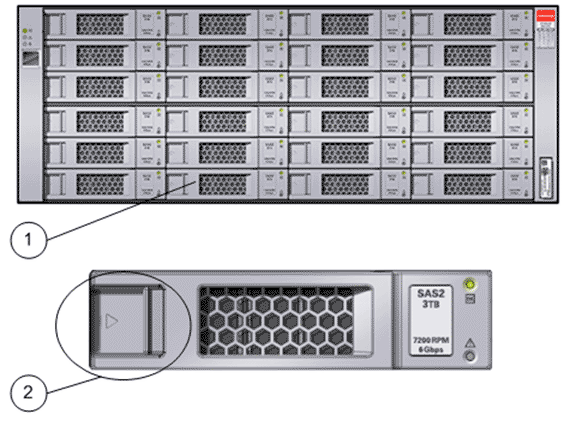

Figure 2: A DE2-24C Drive Enclosure drive and drive carrier latch
- Legend
1 A drive 2 Drive carrier latch (closeup)
- Pull the drive carrier handle fully open to unlock and partially eject the drive from the Drive Enclosure chassis. CautionDo not force open the drive carrier handle. You can damage the drive carrier handle if you apply too much force.

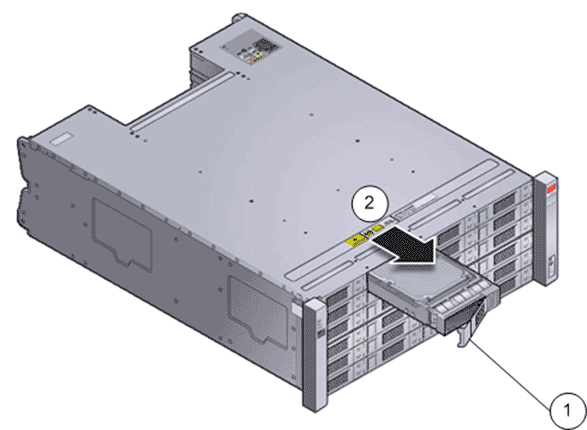

Figure 3: A drive removed from a DE2-24C Drive Enclosure
- Legend
1 Drive carrier handle 2 Removing the drive

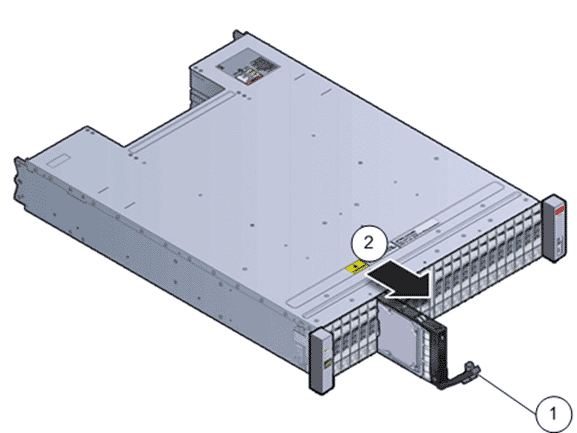

Figure 4: A drive removed from a DE2-24P Drive Enclosure
- Legend
1 Drive carrier handle 2 Removing the drive
- Grasp the middle of the drive body and pull the drive completely out of the Drive Enclosurechassis.Place the drive into an antistatic bag or on an ESD-qualified surface .
