- Remove the power supply by grasping the power supply handle and pushing the power supply latch to the left.

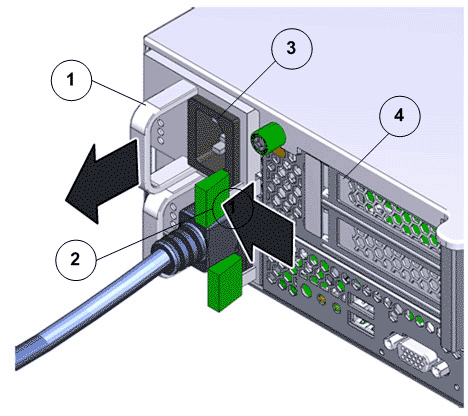

Figure 1: Controller power supply latch
- Legend
1 Power supply handle 3 Power supply 2 Power supply latch 4 Controller back

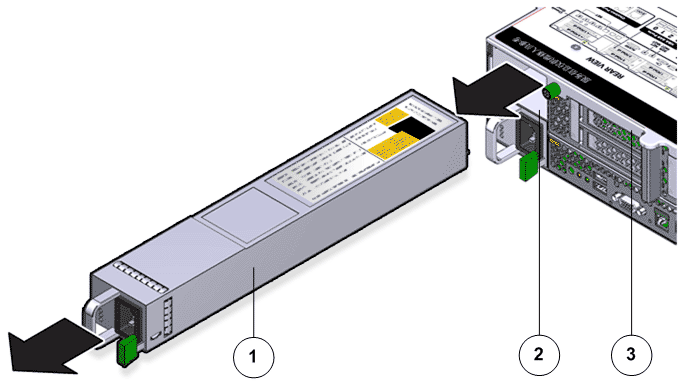

Figure 2: Remove power supply
- Legend
1 Power supply 2 Power supply compartment 3 Controller
- If both power supplies must be removed, label the power supplies with the slot numbers from which they are removed. Note: Removing both power supplies will result in the immediate powering off of the Controller. Do not pull both power supplies from an active and running Controller.Note: The power supplies must be reinstalled into the same slots from which they were removed.
- Pull the power supply out of the chassis and place it on an antistatic mat.
