Remove a Power Supply

Proceed to step 3 if you have already removed the power cord. Otherwise, from the back of the Pilot, remove the velcro that holds the power cord from the failed power supply.
Caution
Do not remove both power cords if it is not necessary. Removing both power cords might crash the Pilot.

Note: You might need to swing the cable management arm (CMA) out of the way to access the power supplies. If the CMA is still in the way, extend the Pilot approximately 20 cm (8 inches) out of the front of the rack.

Note: The fans of a failed power supply may still be spinning when the system is powered on. You can remove a power supply while the fans are still spinning.
Disconnect the power cord from the failed power supply.
While holding the power supply handle with one hand, use the other hand to push the power supply latch to the left.

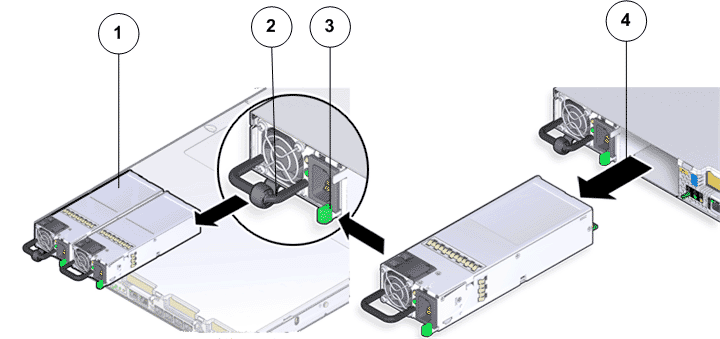

Figure 1: Power supply removal

Legend

1 Power supplies (PS0 and PS1)

2 Power supply handle

3 Power supply latch

4 Power supply compartment
Pull the power supply out of the chassis and place the power supply on an antistatic mat.
Caution
Whenever you remove a power supply, you should replace it with another power supply; otherwise, the Pilot might overheat due to improper airflow.
