- Remove the Controller ESM from the drive compartment by pushing the latch release button to open the latch.

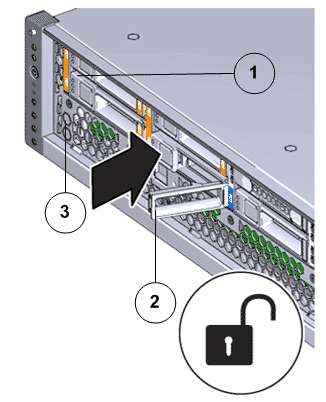

Figure 1: Open ESM latch
- Legend
1 ESM 2 Latch release button 3 Controller front
Important! Do not bend the latch too far to the right. Bending the latch can damage the latch. - Grasp the latch and pull the ESM out of the Controller drive compartment.

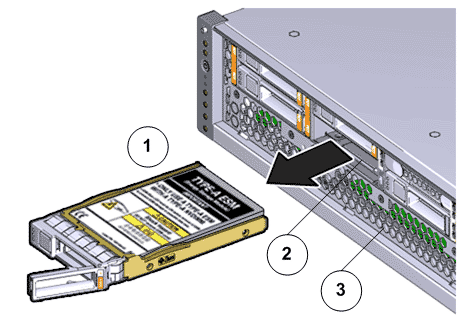

Figure 2: Remove ESM
- Legend
1 ESM 2 Controller drive compartment 3 Controller front
- Set the failed component aside.
