The LED indicators on the operator panel of the Drive Enclosures provide system status. The LED display identifies the Drive Enclosure by its numeric identifier.
The following figures show the operator panel LEDs for both types of Drive Enclosure.

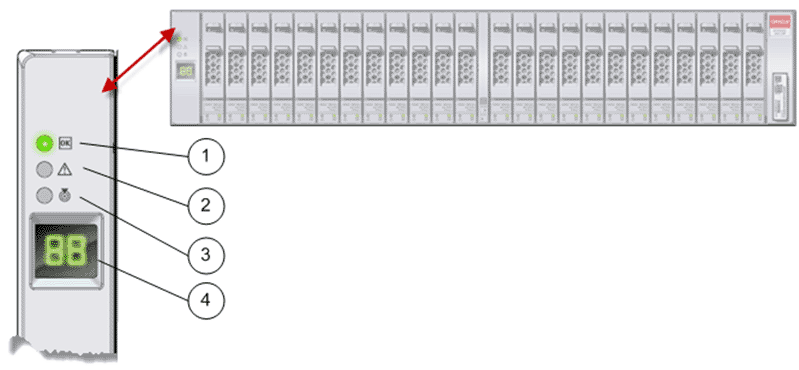

Figure: 1 Operator panel LEDs (DE2-24P Drive Enclosure)
- Legend
1 System power indicator 3 Locate indicator and logical fault indicator 2 Module fault indicator 4 Chassis ID

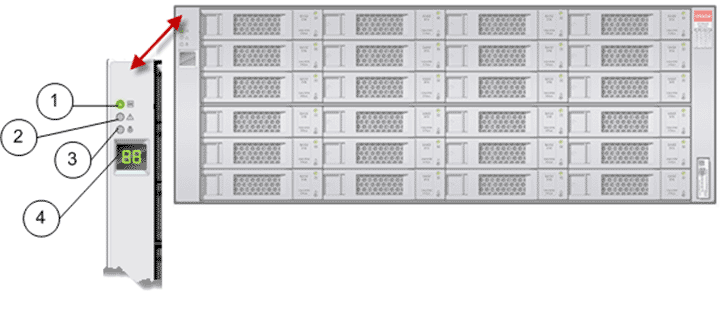

Figure: 2 Operator panel LEDs (DE2-24C Drive Enclosure)
- Legend
1 System power indicator 3 Locate indicator and logical fault indicator 2 Module fault indicator 4 Chassis ID
The following table provides status information on the operator panel LEDs.
LED |
LED color |
Status |
|---|---|---|
System power indicator |
Green |
The status is normal. |
Module fault indicator |
Amber |
A module fault is present. |
Locate indicator |
White |
The DE is located. |
LED display |
Green number between 01 and 30 |
The numeric identifier of a DE is displayed. |
