The LED indicators on the Drive Enclosure drives provide power activity status, locate indicators, and fault conditions of each drive.

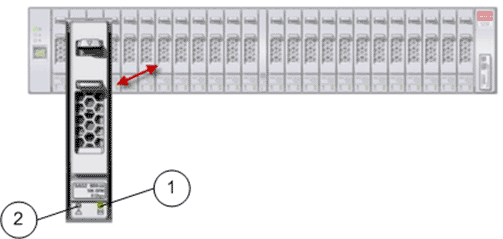

Figure: 1 Drive LEDs (DE2-24P Drive Enclosure)
1 Power and activity indicator | 2 Drive fault indicator |

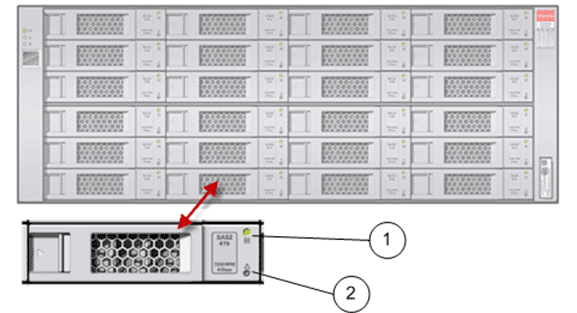

Figure: 2 Drive LEDs (DE2-24C Drive Enclosure)
1 Power and activity indicator | 2 Drive fault indicator |
Status |
Power/Activity Indicator (green) |
Drive Fault indicator (amber) |
---|---|---|
Drive is installed and operational. |
On and blinking with startup or activity |
Off |
The drive is located. |
On |
Flash one second on and one second off |
A drive fault is present. |
On |
On In addition to the continuous amber light on the Drive Fault LED, the Locate LED on the operator panel is also a continuous amber light. |
A failure occurred in the power control circuit. |
Off |
On In addition to the continuous amber light on the Drive Fault LED, the Module Fault LED on the operator panel is also a continuous amber light. |
A failure occurred in the disk array. |
On |
Flash three seconds on and one second off. In addition to the flashing amber light on the Drive Fault LED, the Locate LED on the operator panel is also a continuous amber light. |
