Included in the shipment of an Oracle FS System is a build map. The build map is a document that summarizes the configuration of the system and how the hardware components of the system were assembled and tested during the manufacturing process.
The part numbers of each Controller, Oracle MaxRep, and Drive Enclosure
The serial numbers and PCI slot assignments of each HBA
The serial numbers of the SFP+ transceiver modules
Each Drive Enclosure number and string assignment
The rack unit (RU) location of each Drive Enclosure

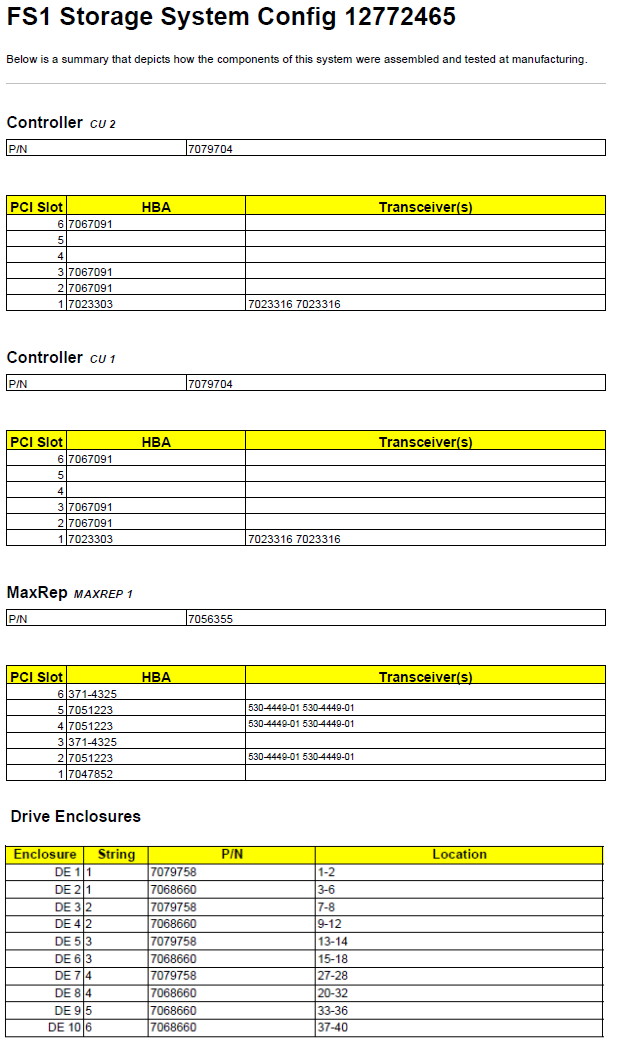

The following figure shows an example of a build map for a system configured with 10 Drive Enclosures.
Figure: 1 Build map
