Cabling the Pilot management interface involves connecting the two Pilot nodes, connecting the Pilots to the Controllers, and connecting the Pilots to the customer management network.

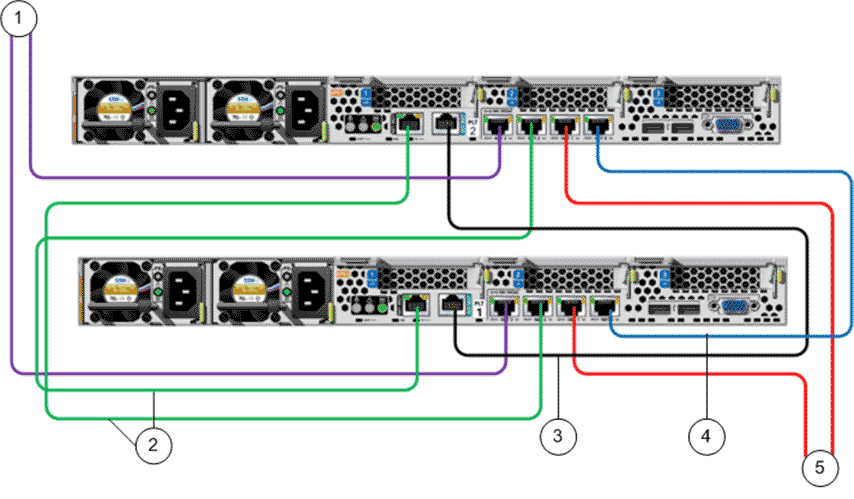

Figure: 1 Pilot wiring diagram (management connectivity)
1 NET 3 port to customer management network | 4 NET 0 port to NET 0 port |
2 NET MGT port to NET 2 port | 5 NET 1 port to Controller NET 3 port |
3 SER MGT port to SER MGT port |
