Controller LED Indicators

The LED alarm assembly is a high-level status indicator of the Controller and Controller components. Use these diagnostic LEDs to determine if a component has failed in the Controller. The LED alarm assembly also includes a power button to power on the Controller. Besides, the LED alarm assembly there is the Controller Identification Display (CID) that identifies the Controller by its numeric identifier.

The following figure shows the front display panel of the LED alarm assembly on the Controller:

Figure 1: LED alarm assembly front display

Legend

1 Chassis identification LED or Locator LED	5 Service processor LEDs
2 Service Action Required LED or Caution or Fault LED	6 Back power supply LED
3 Motherboard or Power or OK LED	7 Fault or Alarm LEDs (Critical, Major, Minor)
4 Power switch	8 User Alarm LED

The following table provides status information on the LEDs on the front display panel of the LED alarm assembly on the Controller:

Table 1 Controller LED status and description (front panel)
No.	LED	LED color	Status
1	Chassis identification LED or Locator LED button	White	The Locator LED can be turned on to identify a particular system. When on, the LED blinks rapidly. Pressing and holding the Locator button for 5 seconds lights up all the LEDs that are controlled by ILOM for 15 seconds.
2	Service Action Required LED	Amber	Indicates that service is required. Under some fault conditions, individual component fault LEDs are turned on in addition to the Service Required LED.
3	Controller OK LED	Green	Indicates these conditions: Off – Indicates that the system is not running in its normal state. System power might be off. The SP might be running. Steady on – Indicates that the system is powered on and is running in its normal operating state. No service actions are required. Standby blink: Indicates that the system is running in standby mode and can be quickly returned to full function. (200ms-On: 2800ms-Off) Slow blink: Indicates that a normal but transitory activity is taking place. Slow blinking might indicate that system diagnostics are running or that the system is booting.
5	Service processor LED	Green	Indicates the state of the service processor: Slow blink: Indicates the SP is booting. Steady: Indicates a steady state, no service action is required.
6	Back power supply LED	Amber	Indicates the state of the power supplies: Off – Indicates a steady state, no service action is required. On – Indicates a fault with one of the power supplies.
7	Fault or Alarm LEDs (Critical, Major, Minor)	Critical Alarm LED : Red Major Alarm LED: Red Minor Alarm LED: Amber	Note: The alarm indicators appear on the front panel of the Controller but are not applicable for the Oracle FS System.
8	User Alarm LED	Amber	Indicates a user alarm condition. Note: The alarm indicators appear on the front panel of the Controller but are not applicable for the Oracle FS System.

The following figure shows the LEDs at the back of the Controller:

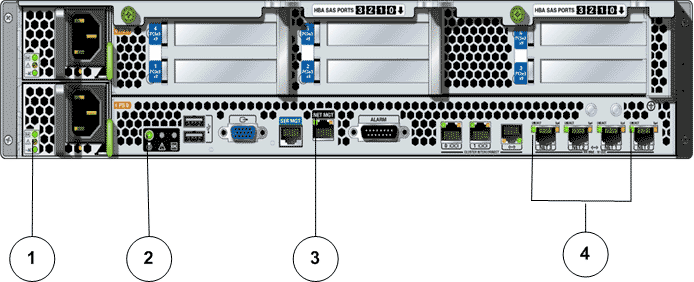

Figure 2: Controller back LEDs

Back view of the Slammer indicating CRUs and FRUs

Legend

1 Power supply status LEDs	3 Network management LED
2 Chassis Status LEDs	4 Net0 to Net3 status LEDs

The following table provides information on the LEDS at the back of the Controller:

Table 2 Controller LED status and description (back panel)
No.	LED	LED color	Status
1	Power supply status LEDs:	(Top) Output Power OK LED: Green (Middle) Service Action Required LED: Amber (Bottom) AC or DC Input Power OK LED: Green	Output Power OK LED: Indicates that output power is without fault. Service Action Required LED: Indicates that service for the power supply is required. AC or DC Input Power OK LED: Indicates that input power is without fault.
2	Chassis Status LEDs	(Left) Locator LED and button: White (Center) Service Action Required LED: Amber (Right) Main Power OK LED: Green	Locator LED and button: The Locator LED can be turned on to identify a particular system. Service Action Required LED: Indicates that service is required. Under some fault conditions, individual component fault LEDs are turned on in addition to the Service Required LED. Main Power OK LED: Indicates these conditions: Off – System is not running in its normal state. System power might be off. The SP might be running. Steady on – System is powered on and is running in its normal operating state. No service actions are required. Fast blink – System is running in standby mode and can be quickly returned to full function. Slow blink – A normal but transitory activity is taking place. Slow blinking might indicate that system diagnostics are running or that the system is booting.
3	Network management LED	(Left) Link and Activity LED: Green (Right) Speed LED: Green, amber, or OFF	Indicates these conditions: Link and Activity LED: On or blinking – A link is established. Off – No link is established. Speed LED: On or blinking – The link is operating as a 100-Mbps connection. Off – The link is operating as a 10-Mbps connection.
4	Net0 to Net3 status LEDs	(Left) Link and Activity LED: Green (Right) Speed LED: Amber	Indicates the state of the service processor: Link and Activity LED: On or blinking – A link is established. Off – No link is established. Speed LED: Amber – The link is operating as a Gigabit connection (1000-Mbps). Green – The link is operating as a 100-Mbps connection. Off – The link is operating as a 10-Mbps connection or there is no link.
