Retract the Anti-Tilt Legs

Retract the anti-tilt legs on the rack when you have completed installing or servicing a component inside the rack to ensure that no one trips over the anti-tilt legs.

1. Pull on the anti-tilt leg release pin to unlock the anti-tilt leg and lift it off of the floor.
   Tip: If necessary, retract the anti-tilt leg’s leveling foot by turning it counterclockwise.

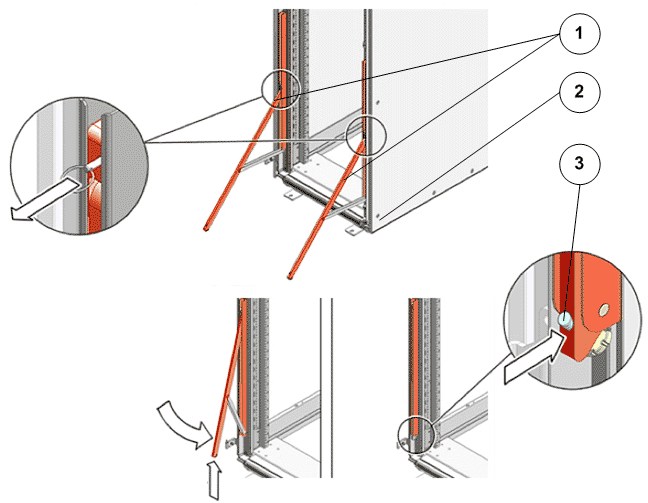

   Figure 1: Retract anti-tilt legs



   Legend

   1 Anti-tilt legs

   2 Rack

   3 Release pin

2. Push the anti-tilt leg securely into the rack.
   Note: The anti-tilt leg should lock into place.
3. Repeat steps 1 to 2 to retract the other anti-tilt leg.
