If the Time and Events Schedule page is large enough to require a vertical scroll bar, the header remains locked and visible while scrolling.
The status icons from the Case Report Books page are added to the visit banners and separate Complete, Verified, Frozen, and Locked data into columns. A number in these columns represents the percent of forms that have that particular status. When that number reaches 100%, a checkmark replaces the number.

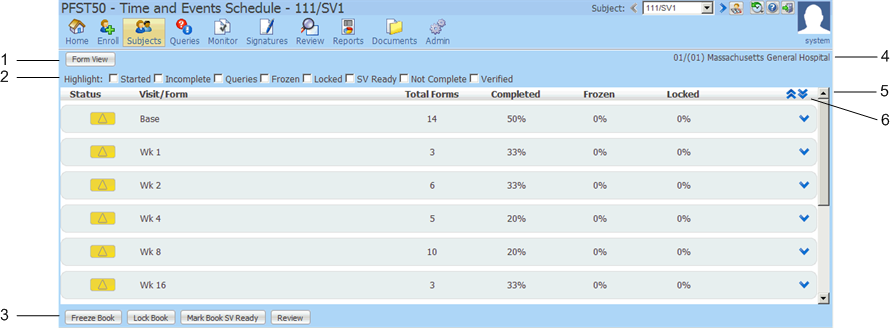

Components—Time and Events Schedule Visit view
|
Component |
Description |
|
|---|---|---|
|
1 |
Form View button |
Click to change to the Form view of the Time and Events Schedule. |
|
2 |
Highlight options |
Checkboxes to filter the display of status icons for forms that are started, incomplete, frozen, locked, or contain queries. Status icons for forms that match all of your selections are highlighted. If you have the appropriate rights, you can also filter for Source Verification status. |
|
3 |
Command buttons |
Buttons in the content pane to perform activities that affect the entire case report book for that subject. For example, as a CRC you might have the right to mark a case report book ready for source verification by clicking the appropriate command button in the Time and Events Schedule. |
|
4 |
Site |
Abbreviation of the site name. |
|
5 |
Data columns |
|
|
|
Status |
Visit status. |
|
|
Visit/Form |
Visit name or form name. |
|
|
Total Forms |
Total number of forms in the visit. |
|
|
Completed |
Percentage of forms with complete data. When the number reaches 100%, a checkmark replaces the number. |
|
|
Verified |
Percentage of verified forms. When the number reaches 100%, a checkmark replaces the number. Note: This column is visible to Sponsor users but not to Site users. |
|
|
Frozen |
Percentage of frozen forms. When the number reaches 100%, a checkmark replaces the number. |
|
|
Locked |
Percentage of locked forms. When the number reaches 100%, a checkmark replaces the number. |
|
6 |
Expand / Collapse indictor |
Expands or collapses all visits to display or hide their forms. |
