This chapter describes the post installation steps for secured setup of Oracle Retail infrastructure in WebLogic.
The following topics are covered in this chapter:
See the following sections for steps to improve security after an Oracle Retail Application has been installed.
Java batch programs communicate with Java applications deployed in WebLogic. For example, Oracle Retail Price Management (RPM) and Oracle Store Inventory Management (SIM). The communication needs to have SSL handshake with the deployed application. You need to import the SSL Certificates into the
JAVA_ HOME/jdk/jre/lib/security/cacerts keystore for successful running of the application batches.
Example 4-1 Importing Certificates into JDK Keystore
/u00/webadmin/product/jdk/jre/lib/security> cp -rp cacerts cacerts_ORIG /u00/webadmin/product/jdk/jre/lib/security> keytool -import -trustcacerts -alias verisignclass3g3ca -file ~/ssl/Primary.pem -keystore cacerts /u00/webadmin/product/jdk/jre/lib/security> keytool -import -trustcacerts -alias oracleclass3g3ca -file ~/ssl/Secondary.pem -keystore cacerts /u00/webadmin/product/jdk/jre/lib/security> keytool -import -trustcacerts -alias hostname -file ~/ssl/cert.cer -keystore cacerts
|
Note: The default password for the JDK keystore ischangeit. |
This section describes the steps for adding security to the asynchronous task JMS queue. Securing the queue will allow only recognized users of the Retail Application to publish tasks to the JMS queue.
Securing the JMS async task queue requires a special enterprise role and a special user to exist in the retailer's Oracle Internet Directory (OID) instance.
The RETAIL_ASYNC_TASK_JOB is an enterprise role that will be used to group users who will have access to the asynchronous task queue.
The RETAIL _ASYNC_TASK_USER is a special user that Retail Applications can use as a principal for executing their message-driven, bean-based consumer processes. This user is a member of the RETAIL_ASYNC_TASK_JOB.
The RETAIL_ASYNC_TASK_JOB and RETAIL_ASYNC_TASK_USER are included as part of the Retail Default Security Reference Implementation installed as part of the Retail Application.
Verify the existence of the job and user in the OID instance. You need to create them if they do not exist.
Securing the queue can be done through the Weblogic Administration Console by adding a JMS Queue Scoped role.
Log into the WebLogic Administration Console.
Navigate to the JMS Module where the asynchronous task queue belongs to and go to the module's Security tab.

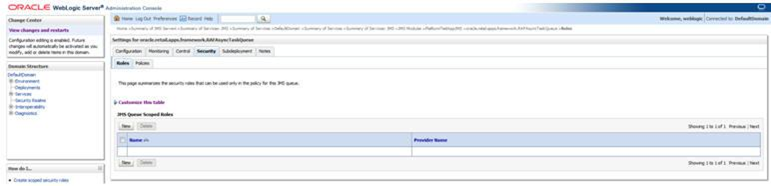

Specify a name for the JMS Queue Scoped Role. The suggested naming convention is [AppCode]AsyncJMSQueueAccessRole]. For example, AllocAsyncJMSQueueAccessRole. The JMS Queue Scoped Role will be created.Under the Roles section, add a new JMS Queue Scoped Roles.

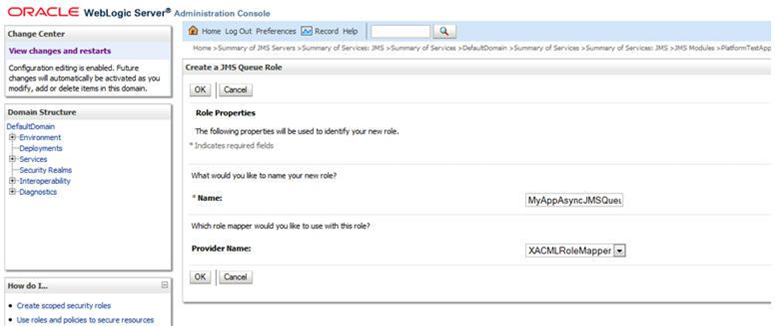

Specify a name for the JMS Queue Scoped Role. The suggested naming convention is [AppCode]AsyncJMSQueueAccessRole]. For example, AllocAsyncJMSQueueAccessRole.
The JMS Queue Scoped Role will be created.
Navigate back to the JMS Module's Security tab.
Click the JMS Queue Scoped role that was created and add a Group condition for RETAIL_ASYNC_TASK_JOB.
Navigate back to the JMS Module's Security tab.

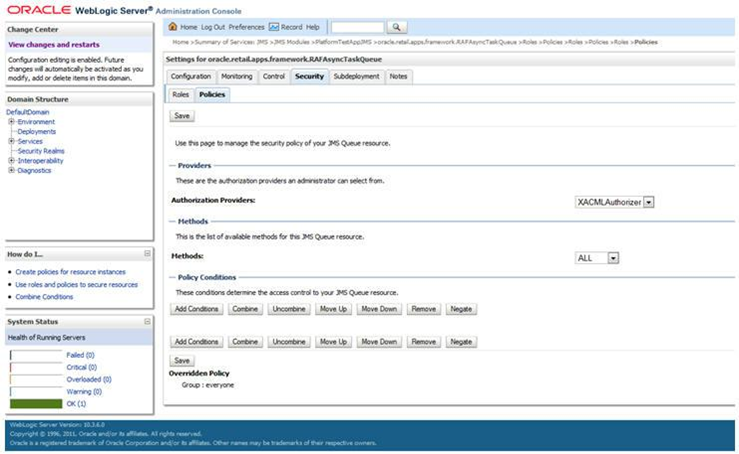

Go to the Policies section.

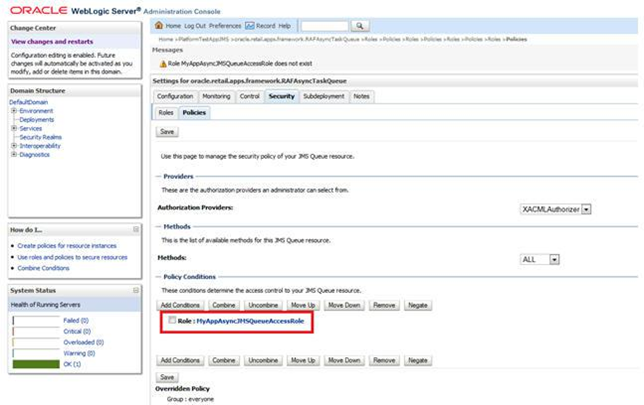

Add a new Role based condition specifying the JMS Queue Role created in the previous step.
Save the changes. The queue is now secured.
Proceed to the next section to allow the Retail Web Application to publish tasks to the queue.
Once the Asynchronous Task Queue has been secured with a JMS Queue Scoped Role as described in the previous section, further configuration is required to allow users of the Retail web application to publish tasks to the queue.
The JMS Queue Scoped Role was created to include an enterprise role,
RETAIL_ASYNC_TASK_JOB. Any users belonging to this enterprise role will be given access to publish tasks to the queue.
Instead of assigning users directly to the RETAIL_ASYNC_TASK_JOB, applications should identify specific enterprise job roles in their system whose users will be allowed to perform asynchronous processing. Those job roles should be configured to extend from the RETAIL_ASYNC_TASK_JOB group.
See the Oracle Internet Directory documentation for details on how to extend one group to another.
This section describes the steps for adding security headers in Web server layer and transport security settings in the Retail Applications web.xml file.
Navigate to Web server configuration file and add the following header configurations by restarting Web server:
# Header Settings to make sure no-store is active <IfModule mod_headers.c> Header set Cache-Control "private, no-cache, no-store, proxy-revalidate, no-transform" Header set Pragma "no-cache" </IfModule> # Guarantee HTTPS for 1 Year including Sub Domains # Header always set Strict-Transport-Security "max-age=31536000; includeSubDomains"
The X-Frame-Options header is appended automatically by the ADF framework. This header setting specifies whether content can be viewed through a third-party X-Frame. To protect against cross-site scripting, the ADF framework sets this value to SAMEORIGIN, which indicates that only websites within the same domain may frame content.
