Marking a shared study object as an in-place revision

The following examples illustrate two ways to apply an in-place revision to a shared study object, with the same results when deployed to the InForm application.

Method 1

Consider two forms, Vital Signs 1 and Vital Signs 2, which contain the shared item BP. You deploy the study and later edit both forms by adding mmHg as caption text on the BP item. Next, you create a single in-place revision on the Vital Signs 1 form, specifying that the change applies to the previously deployed Vital Signs 1 and Vital Signs 2 forms upon deployment.

The in-place revision icon appears only on the Vital Signs 1 form in the Central Designer application.

After deployment, the mmHg caption appears on both forms in the InForm application.

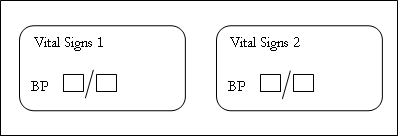

• Original forms in the Central Designer and InForm applications:

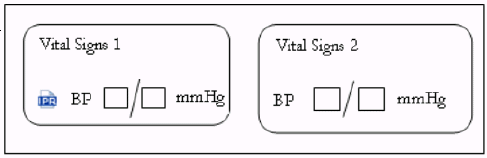

• Forms in the Central Designer application after the caption is updated and the in-place revision is created:

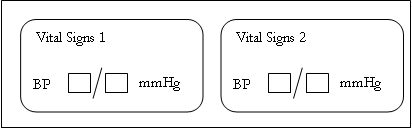

• Forms in the InForm application after deployment of the in-place revision:



Method 2

For the same set of forms with the same caption changes to the deployed study, you create:

• A single in-place revision on the Vital Signs 1 form, specifying that the change applies to the previously deployed Vital Signs 1 form upon deployment.
• A single in-place revision on the Vital Signs 2 form, specifying that the change applies to the previously deployed Vital Signs 2 form upon deployment.

The in-place revision icon appears on both the Vital Signs 1 and Vital Signs 2 forms in the Central Designer application.

After deployment, the mmHG caption appears on both forms in the InForm application.

• Original forms in the Central Designer and InForm applications:

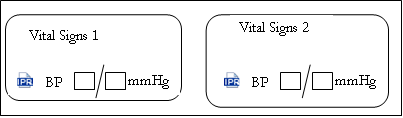

• Forms in the Central Designer application after the caption is updated and the in-place revision is created:



• Forms in the InForm application after deployment of the in-place revision:
