<af:inputDate>

af:inputDate inputDate input date

UIComponent class: oracle.adf.view.rich.component.rich.input.RichInputDate
Component type: oracle.adf.RichInputDate

The inputDate component creates a text field for entering dates and (optionally) a glyph which opens a popup for picking dates from a calendar.

The appearance of the popup depends on the converter, if any, associated with the InputDate.

When there is no converter (so that the inputDate creates a default converter with type Date), or if the converter supplied is for Dates only, e.g. by setting type="date", the inputDate displays a date-picker in an inline popup.

When the attached converter converts time, e.g. by setting type="time", the inputDate displays both date and time pickers in a modal dialog.

When the converter also converts timezone, e.g. by including the timezone placeholder 'z' in its pattern, a timezone picker will also be displayed within the dialog. When the dialog is closed the timezone displays to the right of (or left for RTL languages) the picker icon. The end user can only modify the timezone via the dialog.

It is not possible to show a picker for only time and/or timezone; date will always be displayed in the picker.

The inputDate will default its format to the "short" date format appropriate for the current locale; for example, in English, this is "mm/dd/yy". However, the format can be overridden by using a DateTimeConverter.

For this component, actionListener and returnListener attributes will only be fired on a PDA.

The value attribute accepts java.util.Date type, it does not accept java.lang.String nor java.util.Calendar. If no converter is specified, a default converter will be used to convert between Date and the display String. The String format comes from the default dateStyle of the DateTimeConverter, see javadoc for org.apache.trinidad.convert.DateTimeConverter. Developers should note that on the Javascript peer, the value returned is always in the user's timezone, even if the user has selected a different timezone in the picker. This is because Javascript does not provide information on timezone offsets of a different timezone.

To configure the timezone used for displaying the value, developers can attach a child dateTimeConverter and set its timeZone attribute. If there is no child dateTimeConverter, or the timezone attribute is not set, the timezone defaults to the value from the "time-zone" parameter in trinidad-config.xml. If not defined there, then it is defaulted to the value returned by TimeZone.getDefault(), which is usually the server JDK timezone.

Developers can programmatically attach a converter. That converter should be obtained by Application.createConverter(), rather than simply calling new DateTimeConverter(). Otherwise, some functionality will be missing, e.g. client conversion and validation, and the date picker will only display as an input field without the date-time popup (the popup relies on the client conversion and validation support)

Developers can supply their own custom converter, as long as it converts to a Date. To support time and timezone, the converter should be a subclass of the javax.faces.convert.DateTimeConverter. Otherwise, the date-picker popup will only display a calendar, since the Converter interface does not supply any information on handling time and timezone, and default values will be filled in for the time, timezone placeholders. For client-side conversion and validation, the converter should implement the org.apache.myfaces.trinidad.convert.ClientConverter interface. Otherwise, some functionality will be missing, e.g. client conversion and validation, and the date picker will only display as an input field without the date-time popup (the popup relies on the client conversion and validation support).

Geometry Management

This component cannot be stretched by a parent layout component.
This component does not display any children so there are no child stretching capabilities.

Screen Shot(s)

inputDate component as shown when rendered in a simple form

inputDate component showing popup to select a date

Date selector popup which is shown when user clicks glyph to select a date.

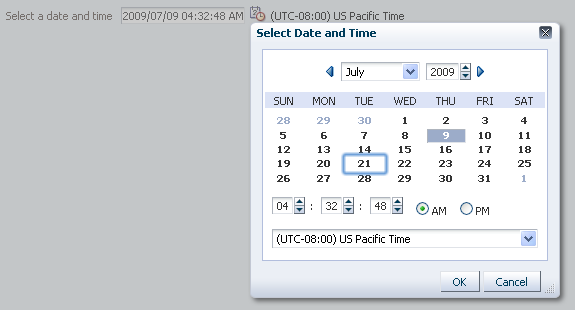

Date and time selector popup which is shown when user clicks glyph to select a date and time.

Code Example(s)

<af:inputDate label="Select a date:"
              id="iDate"
              value="#{demoInput.date}" />

Events

Type	Phases	Description
javax.faces.event.ActionEvent	Apply Request Values	Event delivered when the "action" of the component has been invoked; for example, by clicking on a button. The action may result in page navigation.
org.apache.myfaces.trinidad.event.ReturnEvent	Apply Request Values	Event delivered when the dialog has completed successfully.
javax.faces.event.ValueChangeEvent	Process Validations, Apply Request Values	The valueChange event is delivered when the value attribute is changed.
org.apache.myfaces.trinidad.event.AttributeChangeEvent	Invoke Application, Apply Request Values	Event delivered to describe an attribute change. Attribute change events are not delivered for any programmatic change to a property. They are only delivered when a renderer changes a property without the application's specific request. An example of an attribute change event might include the width of a column that supported client-side resizing.

Type

Phases

Description

javax.faces.event.ActionEvent

Apply Request Values

Event delivered when the "action" of the component has been invoked; for example, by clicking on a button. The action may result in page navigation.

org.apache.myfaces.trinidad.event.ReturnEvent

Apply Request Values

Event delivered when the dialog has completed successfully.

javax.faces.event.ValueChangeEvent

Process Validations,
Apply Request Values

The valueChange event is delivered when the value attribute is changed.

org.apache.myfaces.trinidad.event.AttributeChangeEvent

Invoke Application,
Apply Request Values

Event delivered to describe an attribute change. Attribute change events are not delivered for any programmatic change to a property. They are only delivered when a renderer changes a property without the application's specific request. An example of an attribute change event might include the width of a column that supported client-side resizing.

Name	Description
help	This facet is deprecated, helpTopicId should be used for providing help. This is a no-op for form components.

Name

Description

help

This facet is deprecated, helpTopicId should be used for providing help. This is a no-op for form components.

Attributes

Name	Type	Supports EL?	Description
accessKey	char	Yes	a character used to gain quick access to the form element specified by the `for`, if set (or this component itself, if it is a "non-simple" form element). If the same access key appears in multiple locations in the same page of output, the rendering user agent will cycle among the elements accessed by the similar keys. This attribute is sometimes referred to as the "mnemonic". Note that the accessKey is triggered by browser-specific and platform-specific modifier keys. It even has browser-specific meaning. For example, Internet Explorer will set focus when you press Alt+<accessKey>. Firefox sets focus on some operating systems when you press Alt+Shift+<accessKey>. Firefox on other operating systems sets focus when you press Control+<accessKey>. Refer to your browser's documentation for how it treats access keys.
action	javax.el.MethodExpression	Yes	a reference to an action method sent by the commandButton, or the static outcome of an action
actionListener	javax.faces.el.MethodBinding	Only EL	a method reference to an action listener
attributeChangeListener	javax.el.MethodExpression	Only EL	a method reference to an attribute change listener. Attribute change events are not delivered for any programmatic change to a property. They are only delivered when a renderer changes a property without the application's specific request. An example of an attribute change events might include the width of a column that supported client-side resizing.
autoComplete	String	Yes	Valid Values: on, off whether previous values of text fields in the form should be remembered and offered for auto completion.
autoSubmit	boolean	Yes	Default Value: false an attribute which if set to TRUE on a form element, the component will automatically submit when an appropriate action takes place (a click, text change, etc.). Since autoSubmit is a partial submit, also submitted and re-rendered are any other components with partialTriggers pointing to this component.
binding	oracle.adf.view.rich.component.rich.input.RichInputDate	Only EL	an EL reference that will store the component instance on a bean. This can be used to give programmatic access to a component from a backing bean, or to move creation of the component to a backing bean.
changed	boolean	Yes	Default Value: false an attribute which if set to true, the changed indicator icon will be displayed on the component.
changedDesc	String	Yes	the text commonly used by user agents to display tooltip text on the changed indicator icon. Default value is "Changed". The behavior of the tooltip is controlled by the user agent, e.g. Firefox 2 truncates long tooltips.
chooseId	String	Yes	the id of the chooseDate component which can be used to pick the Date value for this inputDate. If set, attributes maxValue, minValue, disabledDays, disabledDaysOfWeek and disabledMonths are ignored. Identifiers are relative to the source component (this component), and must account for NamingContainers. If your component is already inside of a naming container, you can use a single colon to start the search from the root of the page, or multiple colons to move up through the NamingContainers - "::" will pop out of the component's naming container (or itself if the component is a naming container) and begin the search from there, ":::" will pop out of two naming containers (including itself if the component is a naming container) and begin the search from there, etc.
clientComponent	boolean	Yes	Default Value: false whether a client-side component will be generated. A component may be generated whether or not this flag is set, but if client Javascript requires the component object, this must be set to true to guarantee the component's presence. Client component objects that are generated today by default may not be present in the future; setting this flag is the only way to guarantee a component's presence, and clients cannot rely on implicit behavior. However, there is a performance cost to setting this flag, so clients should avoid turning on client components unless absolutely necessary. For the components outputText and outputFormatted, setting the clientComponent to true will render id attribute for the html DOM. This ID attribute can alternatively be generated by setting oracle.adf.view.rich.SUPPRESS_IDS to "auto" in web.xml.
columns	int	Yes	the number of columns to display in the text control. If no value is specified, a default value will be derived from the current converter, if one is attached.
contentStyle	String	Yes	the style of the content piece of the component. You can style width by setting this attribute like this: width: 100px. Be aware that because of browser CSS precedence rules, CSS rendered on a DOM element takes precedence over external stylesheets like the skin file. Therefore skins will not be able to override what you set on this attribute.
converter	javax.faces.convert.Converter	Yes	a converter object
customizationId	String	Yes	This attribute is deprecated. The 'id' attribute should be used when applying persistent customizations. This attribute will be removed in the next release.
disabled	boolean	Yes	Default Value: false whether the element is disabled. Unlike a readonly component, a disabled component is unable to receive focus. If the component has the potential to have a scrollbar, and you want the user to be able to scroll through the component's text or values, use the 'readOnly' attribute, not the 'disabled' attribute.
disabledDays	org.apache.myfaces.trinidad.model.DateListProvider	Yes	a binding to an implementation of the org.apache.myfaces.trinidad.model.DateListProvider interface. The getDateList method should generate a List of individual java.util.Date objects which will be rendered as disabled. The Dates must be in the context of the given base Calendar. Note: this binding requires periodic roundtrips. If you just want to disable certain weekdays (e.g. Saturday and Sunday), use the disabledDaysOfWeek attribute!
disabledDaysOfWeek	java.util.Set	Yes	a whitespace delimited list of weekdays that should be rendered as disabled in every week. The list should consist of one or more of the following abbreviations: sun, mon, tue, wed, thu, fri, sat. By default all days are enabled.
disabledMonths	java.util.Set	Yes	a whitespace delimited list of months that should be rendered as disabled in every year. The list should consist of one or more of the following abbreviations: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec. By default all months are enabled.
editable	String	Yes	Valid Values: inherit, always, onAccess Default Value: inherit the editable look and feel to use for input components. 'always' indicates that the input component should always look editable. 'onAccess' indicates that the input will only look editable when accessed (hover, focus). 'inherit' indicates that we want to use the component parent's setting. None of the ancestor components define 'always' or 'onAccess', then 'always' will be used.
helpTopicId	String	Yes	the id used to look up a topic in a helpProvider.
id	String	No	the identifier for the component. Every component may be named by a component identifier that must conform to the following rules: They must start with a letter (as defined by the Character.isLetter() method) or underscore ( _ ). Subsequent characters must be letters (as defined by the Character.isLetter() method), digits as defined by the Character.isDigit() method, dashes ( - ), or underscores ( _ ). To minimize the size of responses generated by JavaServer Faces, it is recommended that component identifiers be as short as possible. If a component has been given an identifier, it must be unique in the namespace of the closest ancestor to that component that is a NamingContainer (if any).
immediate	boolean	Yes	Default Value: false whether the value is converted and validated immediately in the Apply Request Values phase, or is handled in the Process Validators phase, the default. By default, values are converted and validated together in the Process Validators phase. However, if you need access to the value of a component during Apply Request Values - for example, if you need to get the value from an actionListener on an immediate commandButton - then setting this to "immediate" makes that possible.
inlineStyle	String	Yes	the CSS styles to use for this component. This is intended for basic style changes. The inlineStyle is a set of CSS styles that are applied to the root DOM element of the component. Be aware that because of browser CSS precedence rules, CSS rendered on a DOM element takes precedence over external stylesheets like the skin file. Therefore skins will not be able to override what you set on this attribute. If the inlineStyle's CSS properties do not affect the DOM element you want affected, then you will have to create a skin and use the skinning keys which are meant to target particular DOM elements, like ::label or ::icon-style.
label	String	Yes	the label of the component. If you want the label to appear above the control, use a panelFormLayout.
labelAndAccessKey	String	Yes	an attribute that will simultaneously set both the "label" and "accessKey" attributes from a single value, using conventional ampersand notation. For example, setting this attribute to "T&ext" will set the label to "Text" and the access key to 'e'.
labelStyle	String	Yes	the CSS styles to use for the label of this component. The labelStyle is a set of CSS styles that are applied to the label DOM element of the component. This allows a label to be styled without requiring a new skin definition.
maxValue	java.util.Date	Yes	the maximum value allowed for the Date value. When set to a fixed value on a tag, this will be parsed as an ISO 8601 date. ISO 8601 dates are of the form "yyyy-MM-dd" (for example: 2002-02-15) and the created Date object will be in the application's timezone, with the time components (hours, minutes, seconds, milliseconds) maximized. All other uses require java.util.Date objects.When binding to Date objects, it is advised to create the Date object with maximum value for any date-time components that aren't displayed (usually hours, minutes, seconds, milliseconds) to allow the largest range of values to be accepted.
minValue	java.util.Date	Yes	the minimum value allowed for the Date value. When set to a fixed value on a tag, this will be parsed as an ISO 8601 date. ISO 8601 dates are of the form "yyyy-MM-dd" (for example: 2002-02-15) and the created Date object will be in the application's timezone, with the time components (hours, minutes, seconds, milliseconds) zeroed-out. All other uses require java.util.Date objects.When binding to Date objects, it is advised to create the Date object with zeroed-out values for any date-time components that aren't displayed (usually hours, minutes, seconds, milliseconds) to allow the largest range of values to be accepted.
partialTriggers	String[]	Yes	the IDs of the components that should trigger a partial update. This component will listen on the trigger components. If one of the trigger components receives an event that will cause it to update in some way, this component will request to be updated too. Identifiers are relative to the source component (this component), and must account for NamingContainers. If your component is already inside of a naming container, you can use a single colon to start the search from the root of the page, or multiple colons to move up through the NamingContainers - "::" will pop out of the component's naming container (or itself if the component is a naming container) and begin the search from there, ":::" will pop out of two naming containers (including itself if the component is a naming container) and begin the search from there, etc.
placeholder	String	Yes	Text to be displayed in the input component when a value is not present.
protectionKey	String	Yes	protection key for this component
readOnly	boolean	Yes	Default Value: false whether the control is displayed as an editable field or as an output-style text control. Unlike a disabled component, a readonly component is able to receive focus.
rendered	boolean	Yes	Default Value: true whether the component is rendered. When set to false, no output will be delivered for this component (the component will not in any way be rendered, and cannot be made visible on the client). If you want to change a component's rendered attribute from false to true using PPR, set the partialTrigger attribute of its parent component so the parent refreshes and in turn will render this component.
required	boolean	Yes	Default Value: false whether a non-null, non-empty value must be entered. If false, validators will not be executed when the value is null or empty.
requiredMessageDetail	String	Yes	the message to be displayed, if 'required' validation fails. Parameters: {0} the label that identifies the component
returnListener	javax.el.MethodExpression	Only EL	a method reference to an return listener
shortDesc	String	Yes	the short description of the component. The shortDesc text may be used in two different ways, depending on the component. For components with images, the shortDesc is often used to render an HTML alt attribute for the image. Please see the accessibility guidelines section for correct alt text usage of the shortDesc attribute. shortDesc is also commonly used to render an HTML title attribute, which is used by user agents to display tooltip help text. In this case the behavior for the tooltip is controlled by the user agent, e.g. Firefox 2 truncates long tooltips. For form components, the shortDesc is displayed in a note window. For components that support the helpTopicId attribute and are not using the shortDesc as image alt text, it is recommended that helpTopicId is used instead of shortDesc as it is more flexible and provides more accessible descriptive text than the use of the title attribute.
showRequired	boolean	Yes	Default Value: false whether the associated control displays a visual indication of required user input. If a "required" attribute is also present, both the "required" attribute and the "showRequired" attribute must be false for the visual indication not to be displayed. An example of when it can be desirable to use the showRequired property is if you have a field that is initially empty and is required only if some other field on the page is touched.
simple	boolean	Yes	Default Value: false a boolean value that controls whether the component provides label support; when set to "true", the component will not display the label (these may be ignored: label, labelAndAccessKey, accessKey, showRequired, help facet) and may use simpler layout primitives. One of the usecases can be when the component is used in repeatable elements like in table, for-each etc., where label is not required.
styleClass	String	Yes	a CSS style class to use for this component. The style class can be defined in your jspx page or in a skinning CSS file, for example, or you can use one of our public style classes, like 'AFInstructionText'.
timeZoneList	java.util.List	Yes	A list of timezones this inputDate exposes. If set, and the inputDate is set up to display timezones (by modifying the dateTimeConverter pattern), the timezone dropdown selector will contain this list in the order given.
unsecure	java.util.Set	Yes	A whitespace separated list of attributes whose values ordinarily can be set only on the server, but need to be settable on the client. Currently, this is supported only for the "disabled" attribute. Note that when you are able to set a property on the client, you will be allowed to by using the the .setProperty('attribute', newValue) method, but not the .setXXXAttribute(newValue) method. For example, if you have unsecure="disabled", then on the client you can use the method .setProperty('disabled', false), while the method .setDisabled(false) will not work and will provide a javascript error that setDisabled is not a function.
usage	String	Yes	Valid Values: auto, text, search Default Value: auto The usage attribute will set the type of the input to allow for different html types (such as search). Currently only auto, text and search are valid. auto is the default. Currently, auto will default to text but may in the future conditionally default to some other type.
validator	javax.faces.el.MethodBinding	Only EL	a method reference to a validator method
value	Object	Yes	the value of the component. If the EL binding for the "value" points to a bean property with a getter but no setter, and this is an editable component, the component will be rendered in read-only mode.
valueChangeListener	javax.faces.el.MethodBinding	Only EL	a method reference to a value change listener
visible	boolean	Yes	Default Value: true the visibility of the component. If it is "false", the component will be hidden on the client. Unlike "rendered", this does not affect the lifecycle on the server - the component may have its bindings executed, etc. - and the visibility of the component can be toggled on and off on the client, or toggled with PPR. When "rendered" is false, the component will not in any way be rendered, and cannot be made visible on the client. In most cases, use the "rendered" property instead of the "visible" property. Not supported on the following renderkits: org.apache.myfaces.trinidad.core

Name

Type

Supports EL?

Description

accessKey

char

Yes

a character used to gain quick access to the form element specified by the for, if set (or this component itself, if it is a "non-simple" form element). If the same access key appears in multiple locations in the same page of output, the rendering user agent will cycle among the elements accessed by the similar keys.

This attribute is sometimes referred to as the "mnemonic".

Note that the accessKey is triggered by browser-specific and platform-specific modifier keys. It even has browser-specific meaning. For example, Internet Explorer will set focus when you press Alt+<accessKey>. Firefox sets focus on some operating systems when you press Alt+Shift+<accessKey>. Firefox on other operating systems sets focus when you press Control+<accessKey>. Refer to your browser's documentation for how it treats access keys.

action

javax.el.MethodExpression

Yes

a reference to an action method sent by the commandButton, or the static outcome of an action

actionListener

javax.faces.el.MethodBinding

Only EL

a method reference to an action listener

attributeChangeListener

javax.el.MethodExpression

Only EL

a method reference to an attribute change listener. Attribute change events are not delivered for any programmatic change to a property. They are only delivered when a renderer changes a property without the application's specific request. An example of an attribute change events might include the width of a column that supported client-side resizing.

autoComplete

String

Yes

Valid Values: on, off

whether previous values of text fields in the form should be remembered and offered for auto completion.

autoSubmit

boolean

Yes

Default Value: false

an attribute which if set to TRUE on a form element, the component will automatically submit when an appropriate action takes place (a click, text change, etc.). Since autoSubmit is a partial submit, also submitted and re-rendered are any other components with partialTriggers pointing to this component.

binding

oracle.adf.view.rich.component.rich.input.RichInputDate

Only EL

an EL reference that will store the component instance on a bean. This can be used to give programmatic access to a component from a backing bean, or to move creation of the component to a backing bean.

changed

boolean

Yes

Default Value: false

an attribute which if set to true, the changed indicator icon will be displayed on the component.

changedDesc

String

Yes

the text commonly used by user agents to display tooltip text on the changed indicator icon. Default value is "Changed". The behavior of the tooltip is controlled by the user agent, e.g. Firefox 2 truncates long tooltips.

chooseId

String

Yes

the id of the chooseDate component which can be used to pick the Date value for this inputDate. If set, attributes maxValue, minValue, disabledDays, disabledDaysOfWeek and disabledMonths are ignored. Identifiers are relative to the source component (this component), and must account for NamingContainers. If your component is already inside of a naming container, you can use a single colon to start the search from the root of the page, or multiple colons to move up through the NamingContainers - "::" will pop out of the component's naming container (or itself if the component is a naming container) and begin the search from there, ":::" will pop out of two naming containers (including itself if the component is a naming container) and begin the search from there, etc.

clientComponent

boolean

Yes

Default Value: false

whether a client-side component will be generated. A component may be generated whether or not this flag is set, but if client Javascript requires the component object, this must be set to true to guarantee the component's presence. Client component objects that are generated today by default may not be present in the future; setting this flag is the only way to guarantee a component's presence, and clients cannot rely on implicit behavior. However, there is a performance cost to setting this flag, so clients should avoid turning on client components unless absolutely necessary.
For the components outputText and outputFormatted, setting the clientComponent to true will render id attribute for the html DOM. This ID attribute can alternatively be generated by setting oracle.adf.view.rich.SUPPRESS_IDS to "auto" in web.xml.

columns

int

Yes

the number of columns to display in the text control. If no value is specified, a default value will be derived from the current converter, if one is attached.

contentStyle

String

Yes

the style of the content piece of the component. You can style width by setting this attribute like this: width: 100px. Be aware that because of browser CSS precedence rules, CSS rendered on a DOM element takes precedence over external stylesheets like the skin file. Therefore skins will not be able to override what you set on this attribute.

converter

javax.faces.convert.Converter

Yes

a converter object

customizationId

String

Yes

This attribute is deprecated. The 'id' attribute should be used when applying persistent customizations. This attribute will be removed in the next release.

disabled

boolean

Yes

Default Value: false

whether the element is disabled. Unlike a readonly component, a disabled component is unable to receive focus. If the component has the potential to have a scrollbar, and you want the user to be able to scroll through the component's text or values, use the 'readOnly' attribute, not the 'disabled' attribute.

disabledDays

org.apache.myfaces.trinidad.model.DateListProvider

Yes

a binding to an implementation of the org.apache.myfaces.trinidad.model.DateListProvider interface. The getDateList method should generate a List of individual java.util.Date objects which will be rendered as disabled. The Dates must be in the context of the given base Calendar. Note: this binding requires periodic roundtrips. If you just want to disable certain weekdays (e.g. Saturday and Sunday), use the disabledDaysOfWeek attribute!

disabledDaysOfWeek

java.util.Set

Yes

a whitespace delimited list of weekdays that should be rendered as disabled in every week. The list should consist of one or more of the following abbreviations: sun, mon, tue, wed, thu, fri, sat. By default all days are enabled.

disabledMonths

java.util.Set

Yes

a whitespace delimited list of months that should be rendered as disabled in every year. The list should consist of one or more of the following abbreviations: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec. By default all months are enabled.

editable

String

Yes

Valid Values: inherit, always, onAccess
Default Value: inherit

the editable look and feel to use for input components. 'always' indicates that the input component should always look editable. 'onAccess' indicates that the input will only look editable when accessed (hover, focus). 'inherit' indicates that we want to use the component parent's setting. None of the ancestor components define 'always' or 'onAccess', then 'always' will be used.

helpTopicId

String

Yes

the id used to look up a topic in a helpProvider.

String

the identifier for the component. Every component may be named by a component identifier that must conform to the following rules:

They must start with a letter (as defined by the Character.isLetter() method) or underscore ( _ ).
Subsequent characters must be letters (as defined by the Character.isLetter() method), digits as defined by the Character.isDigit() method, dashes ( - ), or underscores ( _ ). To minimize the size of responses generated by JavaServer Faces, it is recommended that component identifiers be as short as possible. If a component has been given an identifier, it must be unique in the namespace of the closest ancestor to that component that is a NamingContainer (if any).

immediate

boolean

Yes

Default Value: false

whether the value is converted and validated immediately in the Apply Request Values phase, or is handled in the Process Validators phase, the default. By default, values are converted and validated together in the Process Validators phase. However, if you need access to the value of a component during Apply Request Values - for example, if you need to get the value from an actionListener on an immediate commandButton - then setting this to "immediate" makes that possible.

inlineStyle

String

Yes

the CSS styles to use for this component. This is intended for basic style changes. The inlineStyle is a set of CSS styles that are applied to the root DOM element of the component. Be aware that because of browser CSS precedence rules, CSS rendered on a DOM element takes precedence over external stylesheets like the skin file. Therefore skins will not be able to override what you set on this attribute. If the inlineStyle's CSS properties do not affect the DOM element you want affected, then you will have to create a skin and use the skinning keys which are meant to target particular DOM elements, like ::label or ::icon-style.

label

String

Yes

the label of the component. If you want the label to appear above the control, use a panelFormLayout.

labelAndAccessKey

String

Yes

an attribute that will simultaneously set both the "label" and "accessKey" attributes from a single value, using conventional ampersand notation. For example, setting this attribute to "T&ext" will set the label to "Text" and the access key to 'e'.

labelStyle

String

Yes

the CSS styles to use for the label of this component. The labelStyle is a set of CSS styles that are applied to the label DOM element of the component. This allows a label to be styled without requiring a new skin definition.

maxValue

java.util.Date

Yes

the maximum value allowed for the Date value. When set to a fixed value on a tag, this will be parsed as an ISO 8601 date. ISO 8601 dates are of the form "yyyy-MM-dd" (for example: 2002-02-15) and the created Date object will be in the application's timezone, with the time components (hours, minutes, seconds, milliseconds) maximized. All other uses require java.util.Date objects.When binding to Date objects, it is advised to create the Date object with maximum value for any date-time components that aren't displayed (usually hours, minutes, seconds, milliseconds) to allow the largest range of values to be accepted.

minValue

java.util.Date

Yes

the minimum value allowed for the Date value. When set to a fixed value on a tag, this will be parsed as an ISO 8601 date. ISO 8601 dates are of the form "yyyy-MM-dd" (for example: 2002-02-15) and the created Date object will be in the application's timezone, with the time components (hours, minutes, seconds, milliseconds) zeroed-out. All other uses require java.util.Date objects.When binding to Date objects, it is advised to create the Date object with zeroed-out values for any date-time components that aren't displayed (usually hours, minutes, seconds, milliseconds) to allow the largest range of values to be accepted.

partialTriggers

String[]

Yes

the IDs of the components that should trigger a partial update. This component will listen on the trigger components. If one of the trigger components receives an event that will cause it to update in some way, this component will request to be updated too. Identifiers are relative to the source component (this component), and must account for NamingContainers. If your component is already inside of a naming container, you can use a single colon to start the search from the root of the page, or multiple colons to move up through the NamingContainers - "::" will pop out of the component's naming container (or itself if the component is a naming container) and begin the search from there, ":::" will pop out of two naming containers (including itself if the component is a naming container) and begin the search from there, etc.

placeholder

String

Yes

Text to be displayed in the input component when a value is not present.

protectionKey

String

Yes

protection key for this component

readOnly

boolean

Yes

Default Value: false

whether the control is displayed as an editable field or as an output-style text control. Unlike a disabled component, a readonly component is able to receive focus.

rendered

boolean

Yes

Default Value: true

whether the component is rendered. When set to false, no output will be delivered for this component (the component will not in any way be rendered, and cannot be made visible on the client). If you want to change a component's rendered attribute from false to true using PPR, set the partialTrigger attribute of its parent component so the parent refreshes and in turn will render this component.

required

boolean

Yes

Default Value: false

whether a non-null, non-empty value must be entered. If false, validators will not be executed when the value is null or empty.

requiredMessageDetail

String

Yes

the message to be displayed, if 'required' validation fails.

Parameters:

{0} the label that identifies the component

returnListener

javax.el.MethodExpression

Only EL

a method reference to an return listener

shortDesc

String

Yes

the short description of the component. The shortDesc text may be used in two different ways, depending on the component.

For components with images, the shortDesc is often used to render an HTML alt attribute for the image. Please see the accessibility guidelines section for correct alt text usage of the shortDesc attribute.

shortDesc is also commonly used to render an HTML title attribute, which is used by user agents to display tooltip help text. In this case the behavior for the tooltip is controlled by the user agent, e.g. Firefox 2 truncates long tooltips. For form components, the shortDesc is displayed in a note window. For components that support the helpTopicId attribute and are not using the shortDesc as image alt text, it is recommended that helpTopicId is used instead of shortDesc as it is more flexible and provides more accessible descriptive text than the use of the title attribute.

showRequired

boolean

Yes

Default Value: false

whether the associated control displays a visual indication of required user input. If a "required" attribute is also present, both the "required" attribute and the "showRequired" attribute must be false for the visual indication not to be displayed. An example of when it can be desirable to use the showRequired property is if you have a field that is initially empty and is required only if some other field on the page is touched.

simple

boolean

Yes

Default Value: false

a boolean value that controls whether the component provides label support; when set to "true", the component will not display the label (these may be ignored: label, labelAndAccessKey, accessKey, showRequired, help facet) and may use simpler layout primitives. One of the usecases can be when the component is used in repeatable elements like in table, for-each etc., where label is not required.

styleClass

String

Yes

a CSS style class to use for this component. The style class can be defined in your jspx page or in a skinning CSS file, for example, or you can use one of our public style classes, like 'AFInstructionText'.

timeZoneList

java.util.List

Yes

A list of timezones this inputDate exposes. If set, and the inputDate is set up to display timezones (by modifying the dateTimeConverter pattern), the timezone dropdown selector will contain this list in the order given.

unsecure

java.util.Set

Yes

A whitespace separated list of attributes whose values ordinarily can be set only on the server, but need to be settable on the client. Currently, this is supported only for the "disabled" attribute. Note that when you are able to set a property on the client, you will be allowed to by using the the .setProperty('attribute', newValue) method, but not the .setXXXAttribute(newValue) method. For example, if you have unsecure="disabled", then on the client you can use the method .setProperty('disabled', false), while the method .setDisabled(false) will not work and will provide a javascript error that setDisabled is not a function.

usage

String

Yes

Valid Values: auto, text, search
Default Value: auto

The usage attribute will set the type of the input to allow for different html types (such as search). Currently only auto, text and search are valid. auto is the default. Currently, auto will default to text but may in the future conditionally default to some other type.

validator

javax.faces.el.MethodBinding

Only EL

a method reference to a validator method

value

Object

Yes

the value of the component. If the EL binding for the "value" points to a bean property with a getter but no setter, and this is an editable component, the component will be rendered in read-only mode.

valueChangeListener

javax.faces.el.MethodBinding

Only EL

a method reference to a value change listener

visible

boolean

Yes

Default Value: true

the visibility of the component. If it is "false", the component will be hidden on the client. Unlike "rendered", this does not affect the lifecycle on the server - the component may have its bindings executed, etc. - and the visibility of the component can be toggled on and off on the client, or toggled with PPR. When "rendered" is false, the component will not in any way be rendered, and cannot be made visible on the client. In most cases, use the "rendered" property instead of the "visible" property.
Not supported on the following renderkits: org.apache.myfaces.trinidad.core

<af:inputDate>

Geometry Management

Screen Shot(s)

Code Example(s)

Events

Supported Facets

Attributes
