Installing the Wireless Networking Module

The Workstation 6 Series supports an optional wireless networking module.

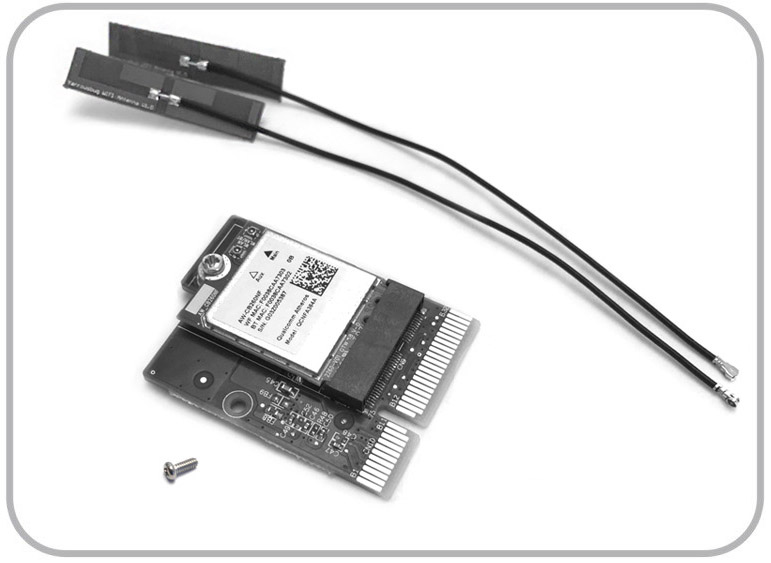

This figure shows the Workstation 6 Series Wireless Networking Module kit

This image shows the video icon. Watch the video

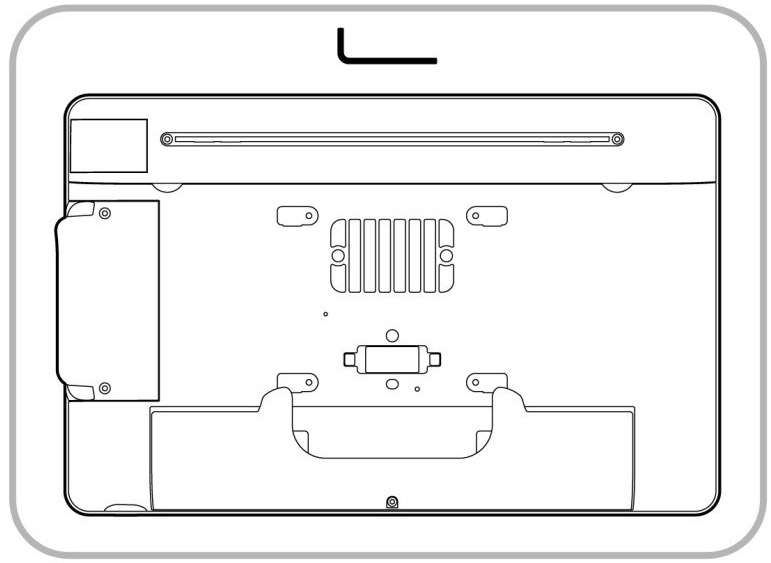

  1. Rear view of the workstation and hex key. Your workstation may differ in appearance, but the module installation process is the same.

    This figure shows a rear view of a workstation with hex key.

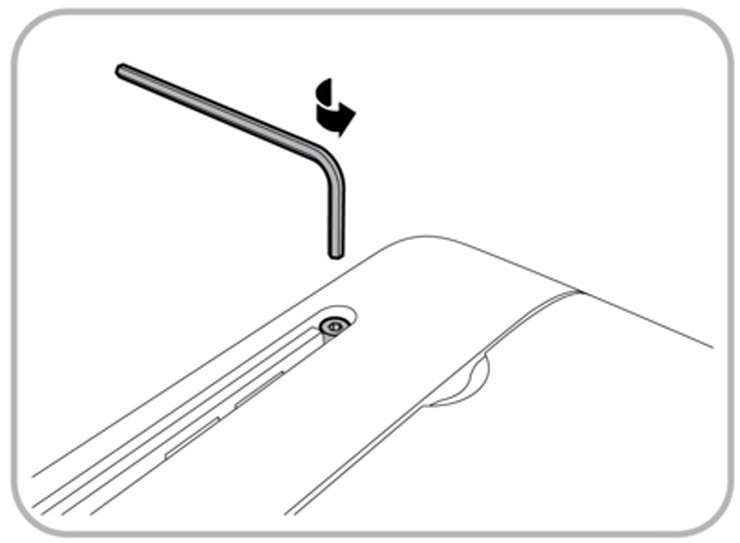

  2. Use the hex key to loosen the top cover screws.

    This figure shows how to use the hex key to remove the screws of the top cover of the Workstation 6.

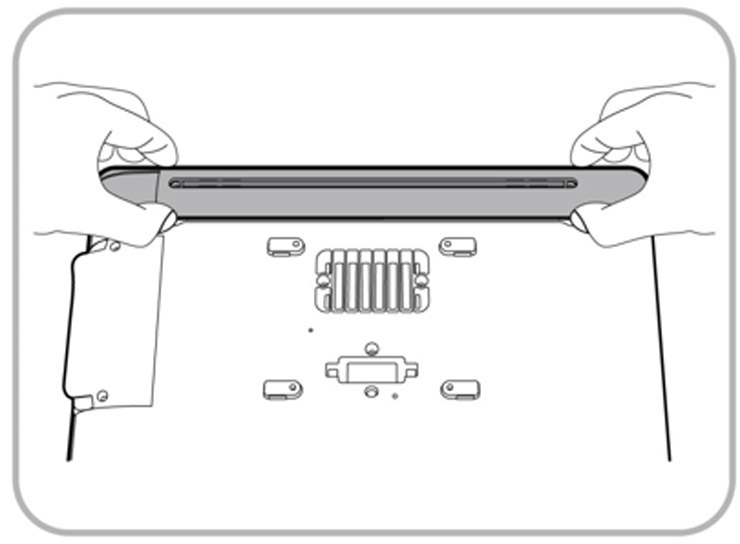

  3. Carefully remove the top cover from the workstation.

    This figure shows how to remove the cover of the Workstation 6.

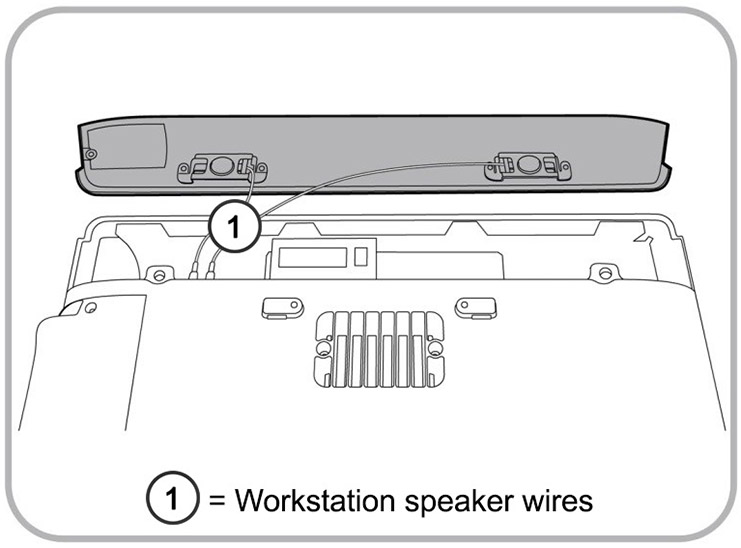

  4. Place the top cover in the position shown in the following image. Do not pull the cover away from the workstation with force. Doing so could damage the speaker wires.

    This figure shows how to remove the cover of the Workstation 6 and the location of the speaker wires.
  5. Slide the wireless module into the slot until secure.

    This figure shows how to insert the wireless module into the expansion slot of the Workstation 6.

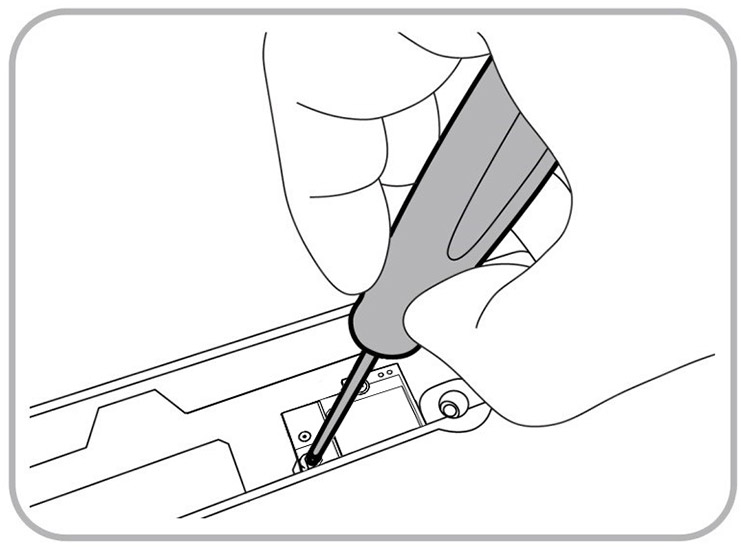

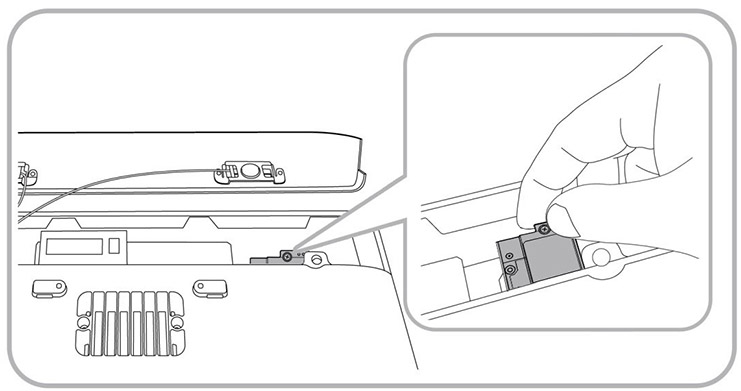

  6. Secure the wireless module with the provided screw.

    This figure shows a hand securing the wireless module with a screw.

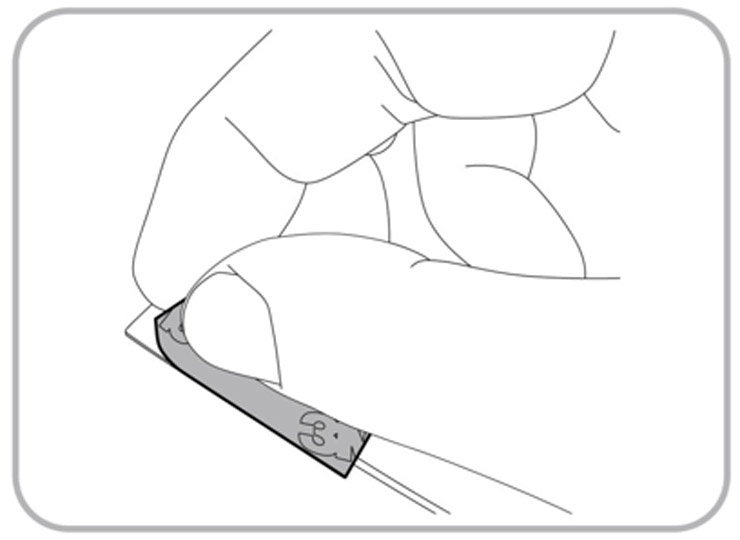

  7. Remove the adhesive strip from the bottom of each antenna.

    This figure shows a hand removing an adhesive strip from an antenna.

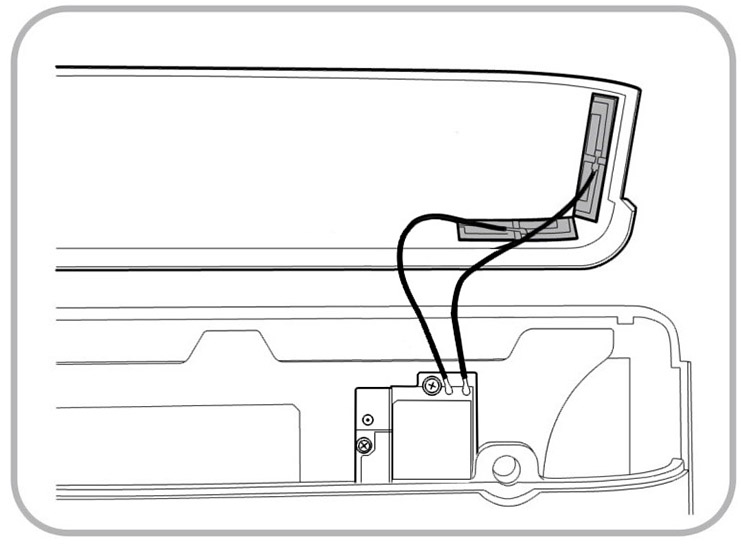

  8. Stick the wireless antennas to the top cover positions shown in the following image, and then connect the wires to the wireless module. The antenna wires can be oriented as needed.

    This figure shows the wireless antennas attached to the top cover interior of the Workstation 6.
  9. Replace the top cover and use the hex wrench to secure it. Ensure the cover does not pinch the antenna wires or speaker wires.
