2. Oracle FCUBS - FCIS Integration

The integration between FCIS and FCUBS enables banks to -

• transact on mutual funds
• post transactions from investor services to core banking
• seamlessly process corporate actions like dividend, liquidation and capital payout
• harmonize customer and accounts across core banking, investor services and online banking system
• provide mutual funds details in customer 360 degree view to core banking users/bank

The request from online banking system to view and transact mutual funds is also received by FCIS when integrated with FCDB. These transaction requests from online banking system are further processed with the same FCIS and FCUBS integration.

This chapter contains the following sections:

• Section 2.1, "Scope"
• Section 2.2, "Prerequisites"
• Section 2.3, "Data Flow and Integration Patterns"
• Section 2.4, "Integration Process"
• Section 2.5, "Investor Fund Details in 360 Degree Customer View"
• Section 2.6, "Assumptions"

2.1 Scope

This section describes the activities that take place in each system and its impact on the other.

This section contains the following topics:

• Section 2.1.1, "Integration Scope in Oracle FLEXCUBE Universal Banking System"
• Section 2.1.2, "Integration Scope in Oracle FLEXCUBE Investor Servicing System"

2.1.1 Integration Scope in Oracle FLEXCUBE Universal Banking System

The following integration activities take place in Oracle FLEXCUBE Universal Banking.

Core Entities Module

Following activities take place in Core Entities (CE) module:

• Notify FCIS about creation of a new investment customer and amendment of an existing investment customer
• Handoff the details of investment customer creation and amendment as a reconciliation batch to FCIS
• During investment customer closure, validate whether closure confirmation is received from FCIS
• Create and modify the customer FATCA classification records based on the details received from FCIS
• Notify FCIS about the customer FATCA classification creation and changes made in FCUBS
• During 360 degree retail customer view, display the mutual fund details received from FCIS

Current and Savings Account Module

Following activities take place in Current and Savings Account (CASA) module:

• While creating unit holder accounts, FCIS retrieves customer account details from FCUBS
• When there is a transaction request from FCIS, the FCUBS system debits the customer account based on availability of funds
• Based on the requests received from FCIS, place, modify and release amount blocks in FCUBS
• Post settlement accounting entries received from FCIS

Accounting Module

Following activities take place in accounting module:

• Online settlement of transaction amount
• Post allocation settlement and GL extract

2.1.2 Integration Scope in Oracle FLEXCUBE Investor Servicing System

The following integration activities that take place in Oracle FLEXCUBE Investor Servicing.

• Update the CIF details based on the customer creation and modification data received from FCUBS
• Validate whether a customer record can be closed and update the FCUBS data store accordingly
• Fetch customer account details from FCUBS while creating unit holder accounts
• Based on US Indicia changes in FCIS, FATCA classification is created and updated in FCUBS
• Update the unit holder details based on FATCA classification changes received from FCUBS
• Handoff the mutual fund details to FCUBS for displaying in 360 degree customer view
• Maintain markup percentage to decide the buffer percentage for amount block
• Request FCUBS to place, modify and release amount blocks
• Save/reject the transaction based on the response received from FCUBS for amount block
• Generate accounting entries as part of Mini EOD and EOD process
• Generate batch request to FCUBS for amount blocks for Systematic Investment Plan (SIP) transactions
• Pass reversal entries in case of settlement failure

2.2 Prerequisites

The prerequisites for this integration in each system are discussed below.

This section contains the following topics:

• Section 2.2.1, "Prerequisites in Oracle FLEXCUBE Universal Banking"
• Section 2.2.2, "Prerequisites in Oracle FLEXCUBE Investor Servicing"

2.2.1 Prerequisites in Oracle FLEXCUBE Universal Banking

The prerequisites for this integration are as follows.

2.2.1.1 Parameter Setup

In ‘CSTB_PARAM’ table, set the option ‘FCIS_INSTALLED’ to ‘Y’. If this parameter is set to ‘Y’ and ‘FCIS_DBLINK’ is setthen the customers in FCUBS system can have unit holder relationship with FCIS system. The system displays an error message if you try to close the customer account from FCUBS and the same account is an active unit holder in FCIS.

If the option ‘FCIS_INSTALLED’ is ‘Y’ and the parameter ‘FCIS_DBLINK’ is not set, then the system displays a configurable override message as ‘FCIS DBlink is Not Maintained’.

In ‘CSTB_PARAM’ table FCIS_USER and FCIS_MODULE should be maintained. This has to be maintained in FCIS also. These parameter values will be fetched by the system and used in the FCIS web service ‘FCISCustomerInquiry’ call from FCUBS for displaying the Fund Holdings of the given Customer.

2.2.1.2 Maintenances

Complete the following maintenances in Oracle FLEXCUBE Universal Banking to enable the integration.

• Bank parameters - basic information about the bank
• Branch parameters - details of head office, regional offices and branches
• Messaging queues - maintain the following queues:

  	Queue Name		Purpose
  	MDB_QUEUE_REQUEST		Online transaction request
  	MDB_QUEUE_RESPONSE		Online transaction response
  	CIFCREATION_DEST_QUEUE		Notification from Oracle FCUBS

For further details on these maintenances, refer to the Core Services user manual of Oracle FLEXCUBE Universal Banking.

Note

The following data in FCUBS must be in sync with those maintained in FCIS system.

• Bank code
• Branch code
• Currency
• Exchange rate source
• Investor category
• Investor type
• Title
• Country

2.2.1.3 Investment Customers

The Oracle FCUBS-FCIS integration is enabled only for customers who are marked as investment customers.

For further details on marking a customer as investment customer, refer to the section ‘Investment Customer Creation/Modification’ in this chapter.

2.2.2 Prerequisites in Oracle FLEXCUBE Investor Servicing

You must manually handle the maintenances and parameters that should have common values in FCUBS and FCIS systems.

Refer to the section ‘Prerequisites in Oracle FLEXCUBE Universal Banking’ for details on common data.

2.2.2.1 Parameter Setup

In ‘CSTB_PARAM’ table FCIS_USER and FCIS_MODULE should be maintained.

2.2.2.2 Maintenances

Complete the following maintenances in Oracle FLEXCUBE Investor Servicing to enable the integration.

• Client country codes
  • INT_FCUBS
  • DIRECT DEBIT

• Block allowed transaction reference types
• Param code for -
  • Transaction code
  • Mark up percent
  • Error code

• Integration parameter maintenances
• GL maintenance for events S and U
• GL maintenance trigger event S
• Client country -
  • bypassciff
  • CIFIDNTFCCHK
  • FATCAAPPLICABLE
  • DEDUPCHKFORCIF

• UH to be created with Direct Debit Applicable as Yes
• Scheduler maintenances -
  • CIF Creation (Import)
  • CIF Closure (Export)
  • FATCA (Import)
  • FATCA (Export)
  • Amount Block New (Export)
  • Amount Block Close (Export)
  • Amount Block Response (Import)
  • Accounting Export
  • Account Response (Import)

• Interface maintenances -
  • CIF Creation (Import)
  • CIF Closure (Export)
  • FATCA (Import)
  • FATCA (Export)
  • Amount Block New (Export)
  • Amount Block Close (Export)
  • Amount Block Response (Import)
  • Accounting Export
  • Account Response (Import)

2.3 Data Flow and Integration Patterns

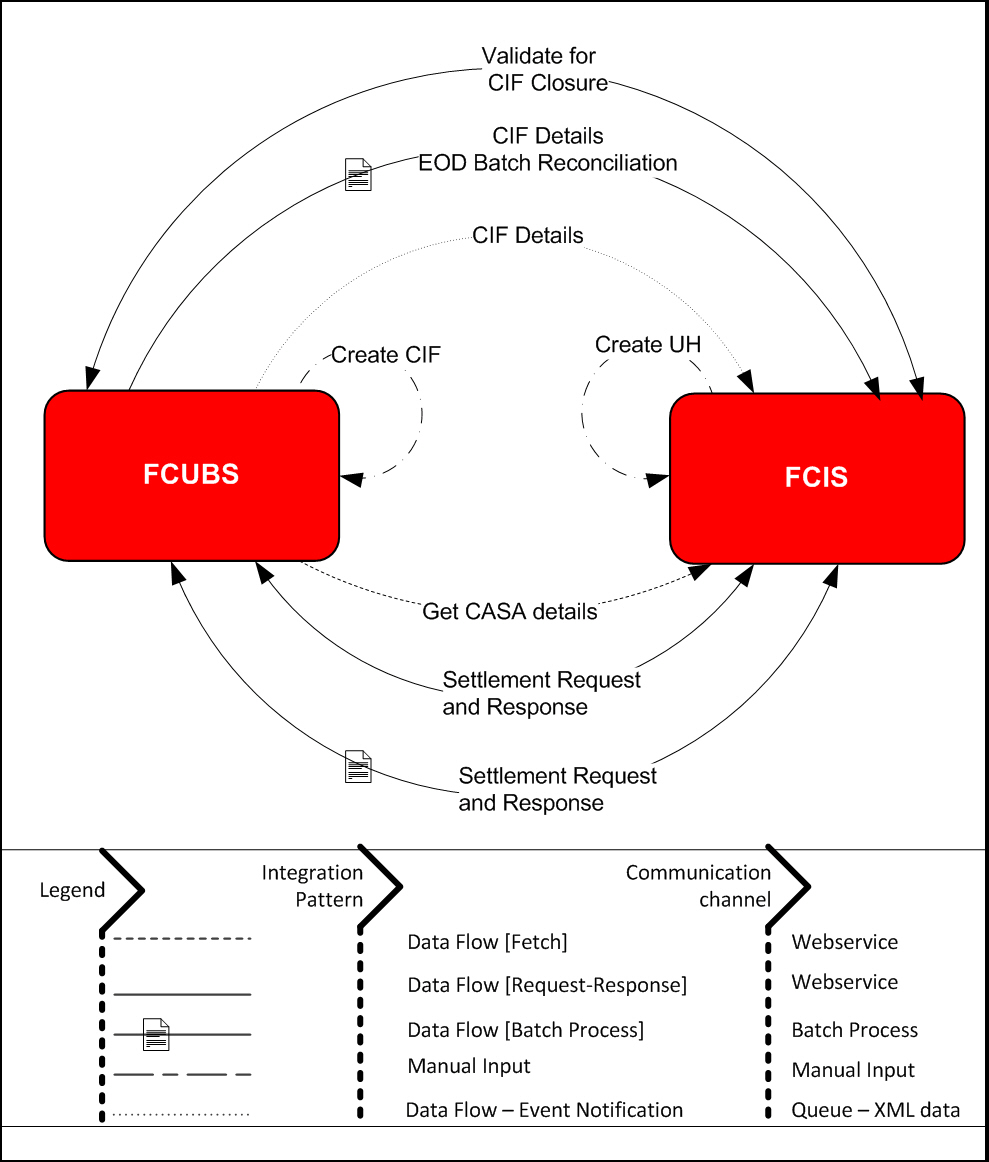

The following diagram provides a high-level information of the data flow and integration patterns used in FCIS-FCUBS integration.

The following table contains the integration processes, pattern of each process and the communication channels:

	Integration Process		From		To		Integration Pattern		Communication Channel
	Create CIF		FCUBS		NA		Manual input		Manual input
	Create UH		FCIS		NA		Manual input		Manual input
	Get CASA details		FCUBS		FCIS		Fetch (request-response)		Web service
	CIF details		FCUBS		FCIS		Event processing		Queue - XML data
	CIF details EOD batch reconciliation		FCUBS		FCIS		Transaction (batch process)		Batch process
	Validate CIF closure		FCUBS/FCIS		FCIS/FCUBS		Transaction (request-response)		Web service
	Settlement request and response		FCUBS/FCIS		FCIS/FCUBS		Transaction (request-response)		Web service
	Settlement request and response - Batch		FCUBS/FCIS		FCIS/FCUBS		Transaction (batch process)		Batch process

This integration uses -

• Web services for synchronous processes where request is sent and response is received in real-time
• Notifications when data is sent to the target system based on an event
• Batch processes for data reconciliation

2.4 Integration Process

The integration between FCUBS and FCIS enables you to create unit holder accounts and perform related transactions for customers maintained in FCUBS.

See “Annexure” on page 1. for the complete list of touch points of the integration process.

The activities involved in this integration are discussed under the following headings.

• Section 2.4.1, "Investment Customer Creation/Modification"
• Section 2.4.2, "Investment Customer Closure"
• Section 2.4.3, "Investment Customer US Indicia Modification"
• Section 2.4.4, "Investment Customer FATCA Classification Change"
• Section 2.4.5, "Unit Holder Creation"
• Section 2.4.6, "Unit Holder Amendment"
• Section 2.4.7, "Unit Holder Closure"
• Section 2.4.8, "Amount Block"
• Section 2.4.9, "Amount Settlement"

2.4.1 Investment Customer Creation/Modification

When an investment customer is created in Oracle FCUBS, a notification with the customer details is sent to FCIS system.

You can create a customer record in Oracle FCUBS using ‘Customer Maintenance’ (STDCIF) screen. The checkbox ‘Investment Customer’ under ‘Status’ details can be used for classifying a customer as an investment customer.

For further details on customer maintenance and description of fields on this screen, refer to the Core Entities user manual.

Online Notification

When an investment customer is created/modified, Oracle FCUBS sends a notification to FCIS system with the details of the new customer. Similarly, if an existing customer is classified as an investment customer during amendment, Oracle FCUBS sends a notification to FCIS with the customer details.

Batch Reconciliation

During FCUBS EOD operations, Oracle FCUBS generates a list of CIF IDs created/modified during that day and sends it to FCIS system. In case any customer creation/amendment is missed out in the online notification, it will be reconciled as part of the EOD batch process.

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synchronous/Asynchronous
	FCUBS		FCIS		Customer		Creation		Notification		NOTIF_IS_CUSTOMER		Asyn­chronous
	FCUBS		FCIS		Customer		Modifica­tion		Notification		NOTIF_IS_CUSTOMER		Asyn­chronous

2.4.2 Investment Customer Closure

In the integrated environment, closure of an investment customer is processed in FCUBS. An investment customer record can be closed only after closing all the unit holder accounts maintained in FCIS for that customer. If there is any active unit holder account associated with the customer, you will not be allowed to continue with the closure.

When all unit holder accounts associated with a customer is closed and authorized, FCIS triggers a web service process to update the data store in FCUBS. This process sets the option ‘Closure Allowed’ to ‘Yes’ in the screen ‘Closure Data from Channels (STSCUSCL) in FCUBS.

However, if the unit holder account is re-opened in FCIS, you can mark the option ‘Closure Allowed’ to ‘No’ as long as the customer record is in ‘Open’ status in FCUBS.

If the customer record is marked as ‘Closed’ in FCUBS, further changes will not be allowed.

If there is no linked unit holder accounts for in FCIS, you can close the customer record in FCUBS.

Following conditions should be satisfied to close a customer record:

• Record is available for the customer ID (entity id) in ‘Customer Closure Data’ (STSCUSCL) screen
• The option ‘Closure Allowed’ is set to ‘Yes’ in ‘Customer Closure Data’ (STSCUSCL)

Note

In case the customer record is already closed in FCUBS through web service requests, then the option ‘Closure Allowed’ cannot be set to ‘No’ in ‘Customer Closure Data’ screen (STSCUSCL).

For further details on ‘Customer Closure Data’ screen, refer to the section ‘Viewing Customer Closure Data from Channels’ in this chapter.

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synochronous/Asynchronous
	FCIS		FCUBS		Customer		Closure and reo­pen		Webser­vice		FCUBSCus­tomerSer­vice		Synchro­nous
	FCIS		FCUBS		Customer closure and reopen rec­onciliation		Recon­ciliation		Flat file		NA		Asynchro­nous

2.4.2.1 Viewing Customer Closure Data from Channels

In Oracle FLEXCUBE Universal Banking, you can view the details customer closure data received from external channels in ‘Customer Closure Data’ (STSCUSCL) screen. You can search for the closure records based on certain parameters.

2.4.3 Investment Customer US Indicia Modification

For a unit holder, when the option ‘US Indicia Available’ is modified (checked or unchecked), FCIS triggers a web service process to update the data in FCUBS. The web service is triggered after authorization of the change.

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synchronous/Asynchronous
	FCIS		FCUBS		FATCA US INDICIA flag		Change		Webser­vice		FCUBSCus­tomerSer­vice		Synchro­nous
	FCIS		FCUBS		FATCA US INDICIA flag change rec­onciliation		recon­ciliation		Flat file		NA		Asyn­chronous

2.4.4 Investment Customer FATCA Classification Change

For a CIF, when there is a change in FATCA classification, FCUBS triggers a notification to update the data in FCIS. The notification is triggered after authorization of the classification creation/change.

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synchronous/Asynchronous
	FCUBS		FCIS		FATCA Classifica­tion		Create		Notification		NOTIF_FAT­CA_CLASS		Asynchro­nous
	FCUBS		FCIS		FATCA Classifica­tion		Modify		Notification		NOTIF_FAT­CA_CLASS		Asynchro­nous

2.4.5 Unit Holder Creation

In FCIS, a unit holder account can be created for a customer record maintained in Oracle FCUBS.

While creating a unit holder account, you can validate the account details of the customer using ‘Validate’ button provided on the screen. You need to specify the branch code and account number in ‘Account Details’ tab of ‘Unit Holder Maintenance’ screen and then click ‘Validate’ button.

On clicking ‘Validate’ button, FCIS system will trigger a service request to FCUBS for enquiry of the account details. Following validations are applicable.

• Specified bank account number is a valid account number for the primary CIF
• Holding pattern of the bank account (single/joint) is same as the unit holder holding pattern (single/joint) with relevant CIF

If the validation is successful, the FCIS system will populate the following details on the screen:

• Account type
• Account name
• Account currency

Note

The above validation is applicable only to the account numbers belonging to the bank whose entity ID is maintained in ‘sttm_bank’.

The details of SWIFT and IBAN will not be automatically updated even after successful validation.You need to manually updated them at the unit holder level.

When you save the unit holder details, the system also validates the holding pattern.

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synchronous/Asynchronous
	FCIS		FCUBS		Settlement customer account vali­date		Query		Source - Http request from JS	Target - Webservice		FCUB­SAccSer­vice		Synchro­nous

2.4.6 Unit Holder Amendment

In the integrated environment, you can amend the customer details in FCUBS system. While creating or amending unit holder details in FCIS system, you can modify the attributes whose entity owner is identified as ‘CIF/UH’ or ‘UH’ in the following table.

You cannot modify the attributes whose entity owner is CIF.

	Attributes		Entity Owner
	CIF Number		CIF
	Customer Category		CIF/UH
	Investor Type		CIF
	First/Company Name		CIF
	Last Name		CIF
	Middle Name		CIF
	Title		CIF
	Minor		CIF
	Guardian Name		CIF/UH
	Relationship		CIF/UH
	Sex		CIF
	Father/Spouse Name		CIF
	DOB		CIF
	Marital Status		CIF
	Occupation		UH
	A/c operation type		UH
	Country of Incorporation		CIF
	Address Line 1		CIF/UH
	Address line 2		CIF/UH
	City		CIF/UH
	Country		CIF/UH
	Email		CIF/UH
	Contact person		UH
	Int dialing code		CIF/UH
	Telephone 1		CIF/UH
	Int Dialing Code		CIF/UH
	Fax Number		CIF/UH
	Identification Type		CIF/UH
	Identification Number		CIF/UH
	Date of Issue		CIF/UH
	Date of Expiry		CIF/UH
	Place of Issue		CIF/UH
	TAX ID		UH
	US Indicia Available		UH attribute to be propagated back to CIF level in FCUBS
	FATCA Status		CIF (This will be updated to 'Recalcitrant' if 'Recalcitrant' flag Is 'Yes' at FCUBS CIF level.)
	FATCA Classification		CIF

2.4.7 Unit Holder Closure

When all unit holder accounts associated with a customer is closed and authorized, FCIS triggers a web service process to update the data store in FCUBS. Along with that, the option ‘Investment Customer’ will be unchecked in the customer maintenance. However, you can manually check it again during customer amendment.

2.4.8 Amount Block

Amount Block Creation

FCIS places an amount block creation request if the following conditions are satisfied:

• Account details are validated
• Mode of payment is direct debit
• Bank is internal bank

FCIS system sends a request to FCUBS to place an amount block on the order amount (transaction amount + markup percentage) if there are sufficient funds in the account. The amount block happens on clear fund basis. The block request is auto authorized in FCIS.

On receiving the request, FCUBS verifies the following:

• The CASA account has sufficient balance to process the trade
• Account status allows debit transactions

If the above validations are successful, then the FCUBS system places the block for the amount sent by FCIS and generates a block reference ID. FCUBS then sends a block successful message to FCIS system. FCIS system generates a block reference ID for the amount block.

Amount Block Modification

If the subscription amount is modified before or after authorization, the amount block is also updated as the new amount. If the system cannot place the block on revised amount, the subscription transaction modification will not be allowed.

Amount Block Release

The amount block is automatically released in the following cases:

• Deletion of subscription transaction
• Reversal of subscription transaction
• Subscription transaction fails in FCIS after amount block is placed
• Change in settlement details before allocation (in this case, depending on the change in settlement details, the amount block may be applied on a different account)

Systematic Investment Plans (SIP)

During BOD process, the FCIS system generates amount block creation flat file for the SIP transactions whose payment is due on that day. The file is sent to FCUBS system. Based on successful response of amount block creation from FCUBS, SIP subscription transactions are created in FCIS.

Amount Block Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synchronous/Asynchronous
	FCIS		FCUBS		New Transac­tion -Amount block Crea­tion		Save		Webservice call from insulation layer		FCUB­SCustom­erService		Synchro­nous
	FCIS		FCUBS		Transaction Amendment and Change in amount -Amount block amendment		Save		Webservice call from insulation layer		FCUB­SCustom­erService		Synchro­nous
	FCIS		FCUBS		Online Amount block failure recon­ciliation		Recon­ciliation		Flat file		NA		Asynchro­nous
	FCIS		FCUBS		SIP process during BOD - amount block creation		BOD batch		Flat file		NA		Asynchro­nous

2.4.9 Amount Settlement

Settlement happens either online or in a batch process configured to run as part of Mini EOD or EOD process.

The settlement happens as described in the following table.

	Sl. No.		System		Process
	1		FCIS		Triggers a web service call to release the amount block
	2		FCIS		Sends the settlement entries to FCUBS system as a flat file as part of settlement batch
	3		FCUBS		Processes accounting entries flat file, posts the accounting entries in FCUBS to debit the customer account and credit the respective GL account(applicable to settlement of IN transactions only)
	4		FCUBS		Releases the amount block on passing the accounting entries
	5		FCUBS		Sends response to FCIS system as a flat file
	6		FCIS		If settlement process is successful, triggers payment clearing pro­cess
	7		FCIS		If settlement process is failed, triggers payment rejection process based on the error codes
	8		FCIS		Marks the status of the transaction as ‘Settled’

Note

Not the following:

• Payment rejection cases where FCIS has not automatically triggered reversals must be reversed manually
• Settlement related entries for redemption are triggered on confirmation

For settlement related accounting entries the debit/credit leg will be generated in the transaction currency and other leg will be in fund base currency.

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Operation Code/Synchronous
	FCIS		FCUBS		Transaction authorisa­tion - Online Settlement		Authori­zation		Webser­vice call from insula­tion layer		FCUB­SIFService		CreateEx­tAccEn­tries	Reverse­ExtAccEn­tries	Synchro­nous
	FCIS		FCUBS		Online clear­ing -Online Settlement		Authori­zation		Webser­vice call from insula­tion layer		FCUB­SIFService		CreateEx­tAccEn­tries	Reverse­ExtAccEn­tries	Synchro­nous
	FCIS		FCUBS		Post alloca­tion- settle­ment and GL extract		Intra day batch		Flat file		NA		Asynchro­nous
	FCIS		FCUBS		Post alloca­tion- settle­ment and GL extract		EOD batch		Flat file		NA		Asynchro­nous
	FCIS		FCUBS		Online settle­ment failure reconciliation		Recon­ciliation		Flat file		NA		Asynchro­nous

2.5 Investor Fund Details in 360 Degree Customer View

From Oracle FCUBS, you can view the fund details on an investment customer using ‘360 Degree Retail Customer View’ (STDCUSVW) screen.

FCIS system hands off the details of funds to FCUBS system during a query from ‘360 Degree Retail Customer View’ screen.

You can view the following investor fund details:

• Unit holder ID
• Fund ID
• Name of fund
• Fund base currency
• Number of units
• Average cost
• Current value

Data Exchange

	Source System		Target System		Operation		Action		Communication Channel		Webservice/Notification Name		Synchronous/Asynchronous
	FCUBS		FCIS		360 degree customer view screen - unit hold­ing details		Query		Webser­vice		FCISCus­tomerInquiry		Synchro­nous

2.6 Assumptions

The integration supports only one agency branch and one distributor module in FCIS.

EOD process in FCIS must be completed before triggering the EOD process in FCUBS.
