5 Configuration

This chapter describes the major configuration points in ORASE, including:


Note:

Since MBA is distinct from the other ORASE applications, much of what is described here is not applicable for MBA. For clarity, MBA implementation, configuration, operations and data model are described separately in "Market Basket Analysis Overview".

WebLogic Configuration

This section describes details regarding WebLogic configuration.

Prerequisites

The following are necessary before you configure WebLogic:

  • WebLogic Server 12c (12.1.3) must be installed on a supported server.

User Interface Authentication and Authorization

ORASE uses the Oracle Application Development Framework (ADF) for authentication and authorization. Authentication is done through the Oracle WebLogic-integrated LDAP service.

For authorization, ORASE modules have been built with role-based access. Access to application user interface components is done by assigning application roles. Application roles are defined as part of the application and deployed as part of the installation process. Application roles are mapped to enterprise roles during initial environment provisioning. Enterprise roles exist as LDAP groups in OID. Refer to the Oracle Retail Advanced Science Engine Installation Guide, Oracle Retail Advanced Science Engine User Guide, and Oracle Retail Assortment and Space Optimization User Guide for the definition of standard user roles.

After installing AC, ASO, CDT, and/or DT, a Customer Delegated Administrator uses Oracle Identity Manager create users and place them in appropriate groups.


Note:

Users cannot log into AC, ASO, CDT, and/or DT until the mapping is done.

This can be done through Oracle Enterprise Manager Fusion Middleware Control that is included with WebLogic Server Standard Edition, WebLogic Server Enterprise Edition, and WebLogic Suite Edition. It is also possible to specify this mapping through Oracle WebLogic scripting. Also, there is an option in the ORASE Installer to have the Installer perform the mapping automatically.

WebLogic User Management Configuration: Configuring Users and Roles

This section provides detailed instructions on setting up enterprise-level user management using Oracle WebLogic 12c with Enterprise Manager. ORASE user management configuration is handled using the WLS Console and the WLS Enterprise Manager (EM).

User Roles

ORASE supports the roles listed in Table 5-1.

Table 5-1 ORASE User Roles

Role Name Display Name Description

ACAdvancedRole

AC Advanced Analytic User

Responsible for analytical configuration, testing, and cluster analysis in the Advanced Clustering (AC) module.

ACBusinessRole

AC Business User

Responsible for analytical configuration, testing, and cluster analysis in the Advanced Clustering (AC) module.

CustomerDecisionTreeRole

Maintain Customer Decision Tree

Responsible for analytical configuration, testing, and cluster analysis in the Customer Decision Tree (CDT) module.

DemandTransferenceRole

Maintain Demand Transference

Responsible for analytical configuration, testing, and cluster analysis in the Demand Transference (DT) module.

MicroSpaceOptAnalyst

Micro Space Optimization Analyst

Responsible for day-to-day Micro ASO activities.

CategoryManagement

ASO Category Management User

Product Assortment-centric user who is interested in viewing ASO results and the translation of data between CatManAR and ASO.

Administrator

ASO Administrator

Responsible for general system setup and configuration tasks related to Micro ASO

AnalyticalSuperUser

ASO Analytical Super User

Responsible for analytical configuration, testing, and model diagnosis in MicroASO.


Configuring Users and Roles

The following steps describe how to set up users and application roles.

Create Users and Groups

  1. Log into your WebLogic Admin console as administration user.

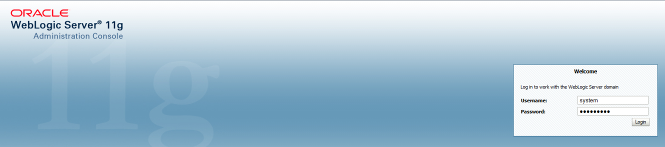

    Figure 5-1 Welcome

    Surrounding text describes Figure 5-1 .
  2. From the left pane, navigate to Security Realms, then select myrealm from the Realms list.

  3. Select the Users and Groups tab and click the New button to create a new user.

  4. Enter the desired user information for a new application user and click OK to confirm.

  5. Navigate to the Groups tab and click the New button to create a new group.

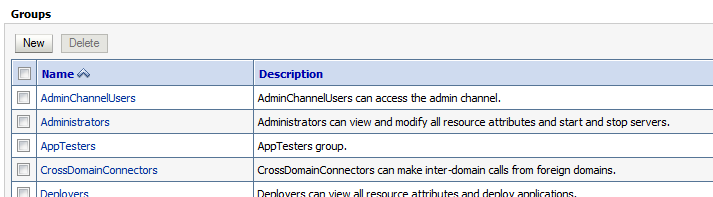

    Figure 5-2 Groups Tab

    Surrounding text describes Figure 5-2 .
  6. Enter a group name (for example, DT_business_users) for the group of users to be assigned to a specific application role (for example, DemandTransferenceRole) and click OK to confirm.

  7. Select the Users tab again and select the name of the new user. Select the Groups sub-tab and find the new group in the left-side multi-select list. Select the group and click the ">" icon in the center to add the Group to your User.

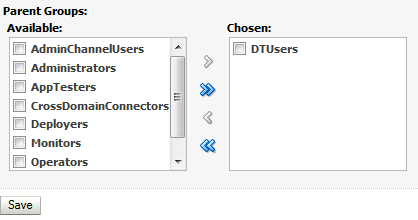

    Figure 5-3 Parent Groups

    Surrounding text describes Figure 5-3 .
  8. Click Save to persist your changes and log out of your Admin Console.

Assign Users and Groups to Roles

  1. Log into the Enterprise Manager console, locate the application, and right-click to find the Security Application Roles sub-menu.

  2. In the Search panel, click the blue and green arrow icon to search for all application roles.

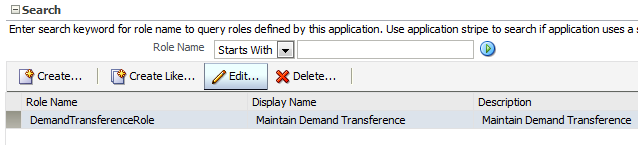

    Figure 5-4 Search Panel

    Surrounding text describes Figure 5-4 .
  3. Select the desired application role to add users to and click Edit. See User Roles for details.

  4. Select Group from the Type drop-down menu and then click the blue and green arrow button to search. Select the newly created group name in the list and click OK.

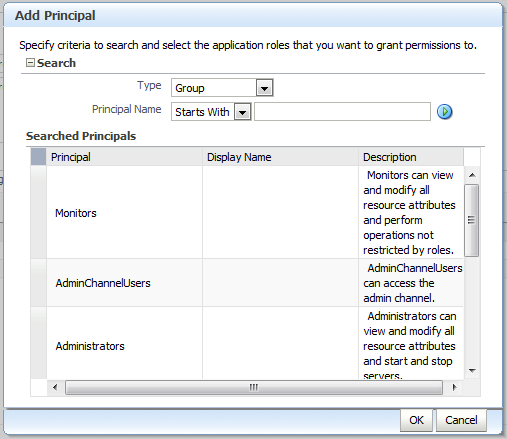

    Figure 5-5 Add Principal

    Surrounding text describes Figure 5-5 .
  5. Repeat the previous two steps for any additional users or groups you want to assign to roles. Note that if a user has been assigned to a group, then the user automatically inherits the role when a group is assigned to a role. It is not necessary to have both a group and a user assigned to the same role.

  6. When finished, click OK in the top right corner of the screen to complete the role mapping.You can now log out of the Enterprise Manager console or continue mapping roles for other applications.

  7. You can verify that the users have been successfully created by logging into the appropriate application as the new user.

WebLogic Clustering (Managed Server Versus Admin Server)

For ASO MicroApp, see the Oracle Retail Predictive Application Server Administration Guide for the Fusion Client for information about WLS clustering in the context of a Fusion Client installation.For AC, ASO standalone, CDT, or DT, WLS Clustering should be installed in a Managed Server setting.


Note:

In a Managed Server setting, the MDS Data Source must be targeted to all of the managed servers using it.

WebLogic (Middle-Tier)-Bound Component Execution Scaling

ORASE components that run WebLogic can be configured to use the available CPU/cores of the node they run on.

Configuration is done in each module's WEB-INF\*tojp-application-context.xml where * corresponds to the component. The configuration file itself is stored in the web archive (WAR) file. In RME's case, CDT/DT and AC applications are deployed as shared libraries. Unjar; edit the file, jar and re-deploy; restart WebLogic for changes to take effect.

CDT example:

The fixedThreadPoolSize value specifies the number of threads to spawn. The first bean processes the overall concurrent job requests (default is 2).

The second bean processes CDT step 3, which runs in the middle-tier. In this case, the default number of worker threads is 3 - 2 spawned plus the current one (useCurrentThread is true).

WEB-INF\cdttojp-application-context.xml :

<bean id="cdtLocalConcurrentService"
    class="oracle.retail.rse.common.jobprocessor.service.LocalServiceAdapter"
    scope="singleton" lazy-init="true" destroy-method="close">
        <constructor-arg name="logInDb" value="true"/>
        <constructor-arg name="useCurrentThread" value="false"/>
        <constructor-arg name="fixedThreadPoolSize" value="2"/>
</bean>
<bean id="cdtLocalSynchConcurrentServiceNoDbLog"
    class="oracle.retail.rse.common.jobprocessor.service.LocalServiceAdapter"
    scope="singleton" lazy-init="true" destroy-method="close">
        <constructor-arg name="logInDb" value="false"/>
        <constructor-arg name="useCurrentThread" value="true"/>
        <constructor-arg name="fixedThreadPoolSize" value="2"/>
</bean>

Note:

Each module (CDT, DT, AC and ASO) has its own *tojp-application-context.xml files that corresponds to the DB metadata configuration (tables RSE_PROC_TASK_TMPL.CTL and RSE_PROC_TMPL.CTL).

ORASE Database Configuration Details

The ORASE database includes a set of configurations in the table RSE_CONFIG.


Note:

Note: ORASE is called RSE in the database. AC is called CIS in the database.

Common RSE Database Configurations

Table 5-2 describes configuration variables common to all ORASE applications that can be changed by the user. Many of these items requiring initialization cannot be configured later. Most of the listed parameters have default values that are loaded as part of the seed data loading process. However, you should review the default values before you begin to use the application.

See Oracle Retail Advanced Science Engine Implementation Guide, Volume 2 - Data Processes and Configuration Variables for the complete list of which configurations are configurable, updateable by the application, and required at initialization.

Table 5-2 Common RSE Database Configuration Variables

Application Code Parameter Name Description Must Initialize Example Parameter Value

RSE

BATCH_INSERT_SIZE

Batch size for job processor-based processing.

N

512

RSE

CAL_HIER_TYPE

The ID of the calendar type that contains the primary calendar.

N

10

RSE

CAL_PERIOD_LEVEL

This is the calendar hierarchy level that is used to drive RSE processing.

Y

4

RSE

CAT_MAN_APP_ID

The application identifier to use for obtaining external IDs when communicating with CM.

N

1

RSE

CDM_helpInfo

Either a full URL or a partial URI (after the port) of the static help location. Note that if SSL is configured, full URL must be used.

N

/cdm-help/help/state?navSetId=cdm-help&navId=0

RSE

CHAIN_LEVEL_DESC

The description to use for any top level hierarchy element when one must be manually created.

Y

CHAIN

RSE

CMGRP_HIER_TYPE

The hierarchy ID to use for the CM Group (installation configuration).

Y

5

RSE

CMGRP_LEVEL_ID

The hierarchy level ID that contains the level of the product hierarchy where the CM Group level exists. (Installation configuration).

Y

2

RSE

CUSTSEG_HIER_TYPE

The ID of the hierarchy type that contains the customer segment hierarchy.

N

4

RSE

DEFAULT_APP_NAME

The default application that is invoked when RSE is run with multiple applications after login. Valid options are: set PARAM_VALUE = 'CDT' set PARAM_VALUE = 'CIS' set PARAM_VALUE = 'DT' set PARAM_VALUE = 'SO'

Y

DT

RSE

DEFAULT_SRG_DOP

The default configuration for any module that does not specify a degree of parallelism.

N

1

RSE

DEFAULT_SR_DOP

The default configuration for any module that does not specify a degree of parallelism.

N

1

RSE

DISPLAY_DATE_FORMAT

The default date mask to be used by the UI.

N

Mon dd, yyyy

RSE

FISCAL_CAL_HIER_TYPE

The ID of the hierarchy type that contains the fiscal calendar.

N

11

RSE

LOC_HIER_TYPE

The ID of the hierarchy type that contains the primary location hierarchy.

N

2

RSE

MT_TZ

Time zone that is used by application server(s), that is, by the middle-tier. Must match SELECT tzname FROM V$TIMEZONE_NAMES.

Y

America/New_York

RSE

PRIMARY_LANGUAGE_CODE

The name of the language code to use for all RSE data sourced from RA.

Y

EN

RSE

PROD_HIER_TYPE

The ID of the hierarchy type that contains the primary product hierarchy.

N

1

RSE

RA_APP_ID

The application identifier to use for obtaining external IDs when communicating with RA. This should align with RSE_APP_SOURCE.

N

1

RSE

RA_FISCAL_CAL_ID

The ID of the calendar to use from RA since RA supports multiple calendars.

Y

1240

RSE

RDF_APP_ID

The application identifier to use for obtaining external IDs when communicating with RDF.

N

1

RSE

RSE_SLS_TXN_SR_DOP

The number of weeks that can be simultaneously processed by the SLS_TXN_ETL.

N

1

RSE

ASO_helpInfo

Either a full URL or a partial URI (after the port) of the static help location. Note that if SSL is configured, full URL must be used.

N

/aso-help/help/state?navSetId=aso-help&navId=0

RSE

TRADE_AREA_HIER_TYPE

The hierarchy ID to use for the trade area (installation configuration).

Y

6

RSE

UI_TZ

Time zone for display. Must match SELECT tzname FROM V$TIMEZONE_NAMES.

Y

America/New_York


Advanced Applications Configuration

This section describes the advanced configuration available for or required by the ORASE applications.

  • CDT and DT configurations

  • AC Configuration

  • ASO configuration, which includes Gurobi configuration.

CDT and DT Configuration

This section describes the configuration and parameter settings for CDT and DT.

All ORASE applications have configurable parameters in the RSE_CONFIG table. All have default values and are configurable and editable by the administrator. In general, if the user does not select a value for a particular field, it will default to the value set in this table. Often the parameter is not selectable from the UI, and this value is used by the application until it is changed in the database. Note that some parameters must be initialized at setup. See Table 5-3. Many of these items that require initialization cannot be configured later. See Oracle Retail Advanced Science Engine Implementation Guide, Volume 2 - Data Processes and Configuration Variables for the complete list of which configurations are configurable, updateable by the application, and required at initialization.

The following are the major categories of CDT and DT parameters:

  • CDT and DT time scale, filter, and priority controls

  • CDT and DT UI field value and histogram report defaults

  • CDT calculation controls, including trees calculation, pruning, demand, and replenishment settings (the settings for demand and replenishment models)

  • DT default controls for attributes, similarities, and DT calculation

Table 5-3 URLs

Application Code Parameter Name Description Must Initialize Example Parameter Value

CDT

START_URL

CDT starting URL

N

/faces/oracle/retail/rse/cdm/fe/view/page/index.jspx

CDT

END_URL

CDT logout URL

N

/faces/oracle/retail/rse/cdm/fe/view/page/login.jspx

DT

START_URL

DT starting URL

N

/faces/oracle/retail/rse/cdm/fe/view/page/index.jspx

DT

END_URL

DT logout URL

N

/faces/oracle/retail/rse/cdm/fe/view/page/login.jspx


Table 5-4 CDT and DT

Application Code Parameter Name Description Must Initialize Example Parameter Value

CDT

CDT_CAL_HIER_TYPE

The hierarchy ID to use for the fiscal calendar. (Installation configuration).

Y

11

CDT

CDT_CAL_LEVEL_ID

The hierarchy level ID that contains the level of the calendar hierarchy that CDT operates on. (This should equate to Week - Installation configuration.)

Y

4

CDT

CDT_CMGRP_LEVEL_ID

The hierarchy level ID that contains the level of the product hierarchy that CDTs are created for. (Installation configuration.)

Y

5

CDT

CDT_CUSTSEG_HIER_TYPE

The hierarchy ID to use for customer segment. (Installation configuration.)

Y

4

CDT

CDT_CUSTSEG_LEVEL_ID

The hierarchy level ID that contains the level of the customer segment hierarchy that CDTs are created for. (Installation configuration.)

Y

2

CDT

CDT_ESC_PRIORITY

The default priority for escalation. Choices are LOC (location/trade area (default)) or CUST (customer segment).

N

LOC

CDT

CDT_EXPORT_START_DATETIME

Start date and time of CDT export. Format: yyyy-mm-dd hh24:mi:ss

N

11/10/2013 12:11

CDT

CDT_FILTER_SLS_TXN_SR_DOP

The number of parallel threads to use for processing data filtering steps.

N

1

CDT

CDT_LOC_HIER_TYPE

The hierarchy ID to use for location. (Installation configuration).

Y

2

CDT

CDT_LOC_LEVEL_ID

The hierarchy level ID that contains the level of the location hierarchy that CDTs are created for. (Installation configuration.)

Y

4

CDT

CDT_PROD_HIER_TYPE

The hierarchy ID to use for the CM Group. (Installation configuration.)

Y

1

CDT

CDT_SLS_TXN_SR_DOP

The number of weeks that can be simultaneously processed by the CDT SLS Txn ETL.

N

1

CDT

CDT_STATS_CALC_METHOD

The approach to use for calculating statistics on transient tables (CALC, NONE, or 0-10 for a fixed dynamic sampling level).

N

2

CDT

CDT_UI_DEF_CALC_PARENT_SEGMENT_FLG

UI default for the calculate-only parent customer segments flag.

N

Y

CDT

CDT_UI_DEF_CALC_PARENT_TRADE_AREA_FLG

UI default for calculate-only parent trade areas flag.

N

N

CDT

CDT_UI_DEF_CDT_SCORE_HIST_CNT

UI default for the number of histogram buckets for the CDT scores histogram.

N

20

CDT

CDT_UI_DEF_DATA_FILTER_HIST_CNT

UI default for the number of histogram buckets for the data filtering histograms.

N

20

CDT

CDT_UI_DEF_EXCLUDE_CUST_CNT

UI default for minimum required customer counts for pruning process.

N

1000

CDT

CDT_UI_DEF_EXCLUDE_MIN_SCORE

UI default for minimum CDT score required for the pruning process.

N

0.25

CDT

CDT_UI_DEF_EXCLUDE_SKU_CNT

UI default for minimum number of SKUs for the pruning process.

N

10

CDT

CDT_UI_DEF_EXCLUDE_TREE_LEVEL_CNT

UI default for minimum number of levels of the tree for the pruning process.

N

2

CDT

CDT_UI_DEF_LOWEST_EXPANSION_LEVEL

UI default for lowest number of levels allowed for a tree.

N

15

CDT

CDT_UI_DEF_MAX_CUST_AVG_DY_TXN

UI default for maximum number of times greater than average that a customer's daily transaction count can be.

N

100

CDT

CDT_UI_DEF_MAX_MISS_ATTR_CNT

UI default for maximum number of missing attributes a SKU can have.

N

3

CDT

CDT_UI_DEF_MIN_ATTR_SKU_CNT

UI default for minimum number of SKUs assigned to an attribute, to be used by the process.

N

5

CDT

CDT_UI_DEF_MIN_ATTR_VALUE_SKU_CNT

UI default for minimum number of SKUs assigned to an attribute value, to be used by the process.

N

5

CDT

CDT_UI_DEF_MIN_CUST_TXN_CNT

UI default for minimum number of transactions required for a customer, as a percent of the average number.

N

0.01

CDT

CDT_UI_DEF_MIN_NODE_ITEM_CNT_PCT

UI default for the minimum percent of SKUs required for a node of the tree before it is considered a terminal node.

N

0.05

CDT

CDT_UI_DEF_MIN_SKU_TXN_CNT

UI default for minimum number of transactions required for a SKU, as a percent of the average number.

N

0.01

CDT

CDT_UI_DEF_PRUNING_HIST_CNT

UI default for the number of histogram buckets for the pruning histograms.

N

20

CDT

CDT_XML_PRECISION

Default precision of weight field in CDT XML.

N

4

CDT

DEF_NUM_WEEKS_FOR_SIMILARITY

The default number of weeks of sales transaction data to be used by the similarity process. This is used when the user does not specify time intervals.

Y

15

CDT

HISTOGRAM_DEFAULT_BIN_APPROACH

The default histogram bin approach (C=Custom, W=Width)

N

C

CDT

HISTOGRAM_DEFAULT_NUM_BINS

The default number of bins to display for a CDT histogram.

N

7

CDT

MAX_NUM_WEEKS_FOR_SIMILARITY

The maximum number of weeks of sales transaction data to be used by the similarity process. This prevents the process from using too much data.

N

104

CDT

TREE_CALC_ALPHA_LEVEL

The default alpha level for CDT tree calculation. Available options are 1, 2, and 3.

N

2

CDT

TREE_CALC_METH_OVR

Override for the default approach for calculating the CDT. Available options are PEARSON and SPEARMAN.

N

PEARSON

DT

AE_CALC_INT_LENGTH

The number of weeks to group together for in an interval for the AE calculation.

Y

4

DT

AE_CALC_LOC_JOIN_METHOD

An identifier to define how the AE calculation should limit its joins of the location hierarchy. SELF=Limit data to same location. TA=Limit joins to locations in same Trade Area. FULL=Complete cross product of all locations.

N

SELF

DT

ATTRIBUTE_LIST_SEPARATOR

A separator to be used to display a list of attributes in the Similarity Calculation screen.

N


DT

CDT_SIMILARITY_AVAILABLE

Whether CDT similarity has been made available to DT.

N

Y

DT

DT_BASELINE_SR_DOP

The number of degrees of parallelism the baseline calculation should use.

N

1

DT

DT_CAL_HIER_TYPE

The hierarchy ID to use for the fiscal calendar.

Y

11

DT

DT_CAL_LEVEL_ID

The hierarchy level ID that contains the level of the calendar hierarchy that DT operates on. (It should equate to week.)

Y

4

DT

DT_CALC_AE_SR_DOP

The number of degrees of parallelism the DT AE calculation service should use.

N

1

DT

DT_CAT_LOC_SKU_CNT_DOP

The number of degrees of parallelism the Category/Location/Week SKU count routine should use.

N

1

DT

DT_CMGRP_LEVEL_ID

The hierarchy level ID that contains the level of the product hierarchy that DTs are created for.

Y

5

DT

DT_CUSTSEG_HIER_TYPE

The hierarchy ID to use for customer segment.

N

4

DT

DT_CUSTSEG_LEVEL_ID

The hierarchy level ID that contains the level of the customer segment hierarchy that DTs are created for.

N

2

DT

DT_ESC_PRIORITY

The default priority for escalation. Choices are LOC (location/trade area (default)) or CUST (customer segment).

N

LOC

DT

DT_FILTER_SR_DOP

The number of simultaneous threads to use while filtering data for DT.

N

1

DT

DT_LOC_HIER_TYPE

The hierarchy ID to use for location.

Y

2

DT

DT_LOC_LEVEL_ID

The hierarchy level ID that contains the level of the location hierarchy that DTs are created for.

Y

4

DT

DT_MDL_AP_EXP_WKS_BACK_END

The number of weeks back from the last date that range data has been loaded for (PR_LOC_STATUS_LAST_COMPLETED_WK) to end using for model apply export.

N

1

DT

DT_MDL_MIN_REQ_LC_SLS_WKS

The minimum number of weeks per location required for model build.

N

10

DT

DT_MDL_MIN_REQ_PR_LC_SLS_WKS

The minimum number of weeks per product/location required for model build.

N

10

DT

DT_PROD_HIER_TYPE

The hierarchy ID to use for the CM Group.

Y

1

DT

DT_REMOVE_REDUNDANCY

If set to Y, then remove redundancy while calculating attribute-based similarities.

N

N

DT

DT_SIM_DISPLAY_ROWNUM

The number of distinct similarity values to show in the UI pop-up. Setting too high a number effectively eliminates this limit.

N

9999999

DT

DT_STATS_CALC_METHOD

The approach to use for calculating statisitcs on transient tables (CALC, NONE, or 0-10 for a fixed dynamic sampling level).

N

2

DT

DT_WGT_CALC_SR_DOP

The number of degrees of parallelism the weight calculation script should use.

N

1

DT

GENERIC_SEPARATOR

A separator to be used to display a list of items, for example, SKU prod_ext_code name.

N


DT

HISTOGRAM_DEFAULT_BIN_APPROACH

The default histogram bin approach (C=Custom, W=Width).

N

W

DT

HISTOGRAM_DEFAULT_NUM_BINS

The default number of buckets used for the contextual BIs.

N

7

DT

MAX_NUM_WEEKS_FOR_ATTR_WGT

The maximum number of weeks of input data to use for calculating attribute weights.

N

104

DT

MAX_NUM_WEEKS_FOR_AVG_SLS

The maximum number of weeks of input data to use for calculating the average sales.

N

104

DT

MAX_NUM_WEEKS_FOR_FILTERING

The maximum number of weeks of input data to use for data filtering. Setting this value lower than the other MAX_NUM_WEEKS_FOR* configurations will override the other configurations.

N

104

DT

MAX_NUM_WEEKS_FOR_MDL_CALC

The maximum number of weeks that should be used during the model build calculation.

N

104

DT

MAX_NUM_WEEKS_FOR_MDL_UPDT

The maximum number of weeks that should be used during the model build update calculation.

N

104

DT

MAX_NUM_WEEKS_FOR_SIMILARITY

The maximum number of weeks of input data to use for calculating similarity.

N

104

DT

MAX_SIGNIF_SIM_CODE

Significant SKUs count is done from this code and up (see SIM_DISPLAY_CODE_PCT).

N

3

DT

MDL_AP_EXP_WKS_BACK_START

The number of weeks back from the last date that range data has been loaded for (PR_LOC_STATUS_LAST_COMPLETED_WK) to start using for model apply export.

N

4

DT

MDL_CALC_UPDT_MDL_DOP

The number of parallel threads that can be used to update individual models in a version during the auto update process.

N

1

DT

MDL_CALC_UPDT_SCHED_LIMIT

The percentage value (expressed as a decimal) of versions to be attempted to be updated each execution.

N

0.25

DT

MDL_CALC_UPDT_VERSION_DOP

The number of parallel threads that can be used to update version MDL AE values during the auto update process.

N

1

DT

POLLING_INTERVAL

Stage status polling interval (in seconds).

N

30

DT

PRUNED_CATEGORIES_SEPARATOR

A separator to be used to display a list of pruned attributes in the Calculation screen.

N


DT

PR_LOC_STATUS_CHG_WINDOW_LEN

The window length to use for product/location status changes.

N

1

DT

PR_LOC_STATUS_LAST_COMPLETED_WK

The last completed week for SKU/Store ranging data copying.

Y

1104005807

DT

SIM_DISPLAY_CODE_PCT

This configuration supports different codes, along with different percent limits for those codes.

N

0

DT

UI_DEF_CALC_PARENT_CS_ONLY_FLG

The UI default for the calculate only parent customer segments flag.

N

N

DT

UI_DEF_CALC_PARENT_TA_ONLY_FLG

The UI default for calculate-only parent trade areas flag.

N

N

DT

UI_DEF_MAX_MISS_ATTR_CNT

The maximum number of missing attributes to use for a SKU before requiring it to be filtered from use.

N

3

DT

UI_DEF_MIN_SKU_CNT

The UI default for minimum number of SKUs required for a segment/store.

N

10

DT

UI_DEF_MIN_SKU_TXN_LEN_PCT

The UI default for minimum SKU transaction length as a percent of the CM Group average.

N

0.01

DT

UI_DEF_MIN_TOT_SLS_UNIT_PCT

The UI default for minimum total sales units as a percent of the CM group average.

N

0.01

DT

WGT_CALC_INTERVAL_LENGTH

The number of weeks to group into an interval that is then used to perform weight calculations.

N

4


AC Configuration

This section describes the configuration and parameter settings for AC. AC can be installed individually and can be extensively configured using tables specific to AC.

As with CDT, DT, and ASO, AC shares the Common RSE Database Configurations for general configuration. It also has a number of additional tables, described in detail below, for additional configurability.

AC can be configured by:

  • Objective (currently only Store is supported),

  • Business objective (for example, Category Management), or

  • Type criteria (for example, (Consumer Profile/Store Attribute/Product Profile/Product Performance/Mixed Attribute)).

This section describes configurations for the following settings:

  • Basic or frequently used settings. These settings are applicable for Business Objective/Objective/Criteria.

  • Generic settings. These settings are applicable to the entire AC application. These settings are application-wide settings with pre-configured default values that should be updated at deployment.

  • Advanced analytic settings. These settings relate to the BaNG algorithm and are updated by advanced analytic users.

  • Rules-based settings. These settings allow extension of rules that are defined for outliers or new stores.

Basic or Frequently Used Configuration Settings

These configurations listed in Table 5-5 are the most frequently used during implementation and they are pre-populated as part of the application installation using the cis_master.ksh -a Attribute Maintenance option. Further updates to the clustering attributes can be performed using below documentation.

Table 5-5 Basic or Frequently Used Configuration Settings

Name Configuration Description Table

Flexibility to add and remove attributes in the application

Add attributes

Remove attributes

These attributes are a collection of attributes and can be applied to any criteria/objective/business objective.

See How to Insert, Update, or Disable a Field

CIS_TCRITERIA_ATTR


Enable criteria for an objective (for example, stores), business objective (for example, Category Management

Enable criteria for a objective/business objective by setting current_flg as on/off.

This table also holds settings that are specific to a criteria.

See How to Insert, Update, or Disable a Field

CIS_BUS_OBJ_TCRITERIA_XREF


Enable attributes for a objective (for example, stores), business objective (for example, Category Management), type criteria (for example, consumer profile/store attribute) and attributes applicable to them

Enable attributes for a objective/type criteria/criteria by setting participant flag to 'Y'.

Disable attributes for a objective/type criteria/criteria by setting participant flag to 'N.'

These attributes are a collection of attributes that are displayed in BI as KPI or attributes that are used for clustering process.

See How to Insert, Update, or Disable a Field

CIS_BUS_OBJ_TCRITERIA_ATT_XREF


Flexibility to enable or disable nested clustering for a specific criteria

This configuration enables nested criteria under another criterion for each objective/business objective.

Example: Consumer Segment can have Store Attribute or Store Attribute can have Store Attribute.

See How to Insert, Update, or Disable a Field

CIS_BUS_OBJ_NESTED_TCRITERIA


Flexibility to load predefined planning periods into Clustering Solution

Buying or planning periods can be loaded into the system using sqlldr.

See How to Insert, Update, or Disable a Field

CIS_EFFECTIVE_PERIOD



Generic Configurations

The settings listed in Table 5-6 are applicable only to AC and are generic settings that allows user to format and control AC. Note that the actual application code in RSE_CONFIG uses the acronym CIS instead of the acronym AC. For a complete list of abbreviations, see "Glossary of Acronyms".

Some parameters must be initialized at setup. See Table 5-6. Many of these items that require initialization cannot be configured later. See Oracle Retail Advanced Science Engine Implementation Guide, Volume 2 - Data Processes and Configuration Variables for the complete list of which configurations are configurable, updateable by the application, and required at initialization.

Table 5-6 Advanced Clustering

Application Code Parameter Name Description Must Initialize Example Parameter Value

CIS

START_URL

CIS starting URL

N

/faces/oracle/retail/rse/cdm/fe/view/page/index.jspx

CIS

END_URL

CIS logout URL

N

/faces/oracle/retail/rse/cdm/fe/view/page/login.jspx

CIS

ATTR_NAME_SEPARATOR

The separator character(s) to use to separate the different components of the attribute names in CIS_TCRITERIA_ATTR.

N


CIS

C_ALG_CLUSTER_CATEGORY

Constant declaration for algorithm cluster category.

N

4

CIS

C_ALG_SPEC_PROPS

Constant declaration for cluster-specific properties

N

4

CIS

C_ATTR_SCALE_PROPS

Constant declaration for retrieve attribute scale properties.

N

3

CIS

C_PERCENT_ATTR_TYPE_ID

Constant declaration for percentage clustering attributes type.

N

2

CIS

C_STMT_CLUSTER_PROPS

Constant declaration for retrieve cluster-specific properties.

N

1

CIS

C_STMT_SCALE_PROPS

Constant declaration for retrieve scale-specific properties

N

2

CIS

CIS_DFLT_CALENDAR_HIER_TYPE_ID

Default calendar hierarchy for clustering.

Y

11

CIS

CIS_DFLT_LOCATION_HIER_TYPE_ID

Default location hierarchy for clustering.

Y

6

CIS

CIS_DFLT_PRODUCT_HIER_TYPE_ID

Default product hierarchy for clustering.

Y

5

CIS

CIS_DFT_PIVOT_LVL

Default pivot level shown in explore data.

N

3

CIS

CIS_NUMERIC_DFT

Default value for numeric attributes shown in BI or UI when values are not available.

N

0

CIS

CIS_STRING_DFT

Default attribute value for string.

N

UNKNOWN

CIS

DEFAULT_APPL_USER_ID

Default user ID for batch processing records.

N

1

CIS

DEFAULT_CUST_ADVANCED_USER

Identifies the advanced user.

N

AdvancedUser

CIS

DEFAULT_CUST_BUSINESS_USER

Identifies the business user.

N

BusinessUser

CIS

DEFAULT_DYNAMIC_SAMPLING_LEVEL

Default level of dynamic sampling to apply to sessions

N

4

CIS

DEFAULT_NUM_ATTR_VALUE

Constant for number of discrete values allowed for store attr clustering

N

15

CIS

DEFAULT_NUM_BIN

Default number of bins

N

3

CIS

DEFAULT_STR_CATEGORICAL_ATTR

Default String description for row added in cis_tcriteria_attr_type_value table for unmatched grouping

N

UNKNOWN

CIS

DEF_DST_CENTRD_THRSLH_VAL

Default threshold for outlier rule for Distance from Centroid rule. This value can be changed by type criteria.

N

.95

CIS

DEF_PORTIO_OUTLR_THRSLH

Default threshold for outlier rule for % cluster size below a threshold rule. This value can be changed by type criteria.

N

5

CIS

INSIGHT_BI_SALES_AMT_MARGIN

Flag to show sales BI based on Sales Amount and Margin

N

N

CIS

INSIGHT_BI_SALES_AMT_UNIT

Flag to show sales BI based on Sales Amount and Units

N

Y

CIS

MAX_HIST_WEEK_CNT

The maximum number of weeks which should be selectable by the UI when processing historic data

N

104

CIS

MAX_ITEMS_IN_GRAPH_CLUSTER_DETAIL

Maximum number of clusters to be displayed in Cluster Details graph.

N

12

CIS

MAX_ITEMS_IN_GRAPH_CLUSTER_LIST

Maximum number of clusters to be displayed in Cluster List graph.

N

20

CIS

MNG_RUN_NO_WKS

ODisplay run for past n weeks

N

26

CIS

PERF_ATTR_TOPN_COUNT

The number of attribute values to be used per product category for performance based clustering

N

3

CIS

PERF_CIS_APPROACH

The approach to use for performance-based clustering. Available options are CDT and DT.

N

CDT

CIS

PERF_NUM_WEEKS_FOR_SLS_SHARE

The number of weeks to be used when calculating the sales share for the product attributes.

N

16

CIS

PERF_NUM_WEEKS_FOR_TOPN_CALC

The number of weeks to be used when identifying the top N attributes.

N

16

CIS

SELECT_ALL_MERCH_NODES

Flag to identify if all (or only first) merchandise node(s) to be selected by-default

N

N

CIS

SUMM_CAL_ALL_LVL

Flag to identify whether performance summarization is allowed at all available calendar levels.

N

N

CIS

SUMM_MERCH_ALL_LVL

Flag to identify whether performance summarization is allowed at all available merchandise levels.

N

N


Generic Configuration for Store Clustering

Table 5-7 lists the store clustering parameters.

Table 5-7 Store Clustering Parameters

Parameter Name Parameter Code Description Value

MERCH_HIER_TYPE

MERCH_HIER1

Hierarchy type available for selection in UI - for Primary hierarchy

1

MERCH_HIER_TYPE

MERCH_HIER2

Hierarchy type available for selection in UI - for alternate product hierarchy

5

LOC_HIER_TYPE

LOC_HIER1

Hierarchy type available for selection in UI - for primary location hierarchy

2

LOC_HIER_TYPE

LOC_HIER2

Hierarchy type available for selection in UI - for alternate hlocation hierarchy

6


Advanced Algorithm Settings

Table 5-8 lists the advanced algorithm settings.

Table 5-8 Advanced Algorithm Settings

Category Name Configuration Description Table

Advanced Algorithm

Flexibility to update algorithm properties

Change default distance metric or scaling methods. For example, update distance metric, scaling methods, and default properties of the algorithm.

Advanced Algorithm Settings: cis_algorithm_attr


Advanced Algorithm

Flexibility to override algorithm property by each criteria.

Can have Euclidean distance and seasonality can have correlation. Override default settings of the algorithm by criteria. For example, have the Euclidean distance metric for consumer profile criteria and have correlation metric for criteria having seasonality or time-driven attributes.

Advanced Algorithm: cis_bus_obj_tcrit_algo_attr



Outlier and New Store Rules

Outlier rules and new store rules can be configured by defining Oracle types.

Table 5-9 Outlier and New Store Rules

Category Name Configuration Setting Table

Advanced

Flexibility to enable or disable outlier rules to indicates outliers in the cluster set.

Example: Supported rules are "X Percent Less Than Total Size" or distance from centroid greater than x value.

Update statement to enable or disable a record.

UPDATE cis_outlier_rules

SET current_flg = 'N',

cis_outlier_rules

Advanced

Flexibility to allocate new stores or stores with poor profiles.

Example: Supported rules are:

Post Algorithm:

Assign to the largest cluster

Assign to the cohesive cluster

Assign to like location

cis_newstr_rules


ORASE Advanced Clustering SQL Reference

Table 5-10 contains all the possible attributes in the clustering process.

Table 5-10 CIS_TCRITERIA_ATTR

Column Name Data Type Comments Nullable?

ID

NUMBER(10)

FK for this table.

N

NAME

VARCHAR2(50)

Name for the criteria attribute.

N

DESCR

VARCHAR2(200)

Additional descriptive text for the criteria attribute.

Y

SRC_ENTITY_NAME

VARCHAR2(30)

Name of table or view that holds the attribute information and value coming from RA or an external system.

Y

SRC_COLUMN_NAME

VARCHAR2(30)

Name of the column in RA or external system table or view.

Y

SRC_ENTITY_ALIAS

VARCHAR2(30)

Alias of the column in the RA or external system table or view.

Y

ATTR_TYPE_ID

NUMBER(10)

Type of the attribute.

N

CURRENT_FLG

VARCHAR2(1)

A flag to indicate whether this row is the most recent row (Y) or if it a historical row (N).

Y

CREATED_BY_USER

VARCHAR2(255)

User who created the record.

N

DELETE_FLG

VARCHAR2(1)

A flag to indicate whether the row is considered deleted (Y) or not (N).

Y

CREATED_ON_DT

TIMESTAMP(6)

Record creation date.

N

CHANGED_BY_USER

VARCHAR2(255)

User who last changed the record.

Y

CHANGED_ON_DT

TIMESTAMP(6)

Last changed date.

Y

BUS_OBJ_ATTR_MD_ID

NUMBER(10)

Business object attribute MD ID.

Y

UI_DISPLAY_NAME

VARCHAR2(200)

The value to display in the UI when showing this criteria attribute.

Y

DISPLAY_FORMAT_ID

NUMBER(10)

Foreign key to the RSE_DISPLAY_FORMAT table, to enable control of how the attribute should be formated for display.

Y

TCRITERIA_ATTR_SRC_XREF_ID

NUMBER(10)

Field contains the reference to the PK of the of the object which this attribute definition belongs to. For example, if an attribute is representative of a specific consumer segment, then this column will contain the FK to that consumer segment.

Y


How to Insert, Update, or Disable a Field

A few routines can perform maintenance of the data in the CIS_TCRITERIA_ATTR and CIS_BUS_OBJ_TCRITERIA_ATT_XREF tables. These routines use the information defined in applicable source tables to set up fields in these tables.A table called CIS_TCRITERIA_SRC_XREF can also help define what attributes should be configured for the different type criteria.

The first task to perform to customiz the different attributes for the different type criteria is to modify the data in CIS_TCRITERIA_SRC_XREF so that it identifies what data sources should be used for a given business object, objective, and type criteria. A default configuration is provided as seed_data for this table. The maintenance routines use the data in this table to determine what attributes should be used by a given business object, objective, and type criteria.

The data in CIS_TCRITERIA_SRC_XREF can be manipulated by reloading data from the SQL*Loader control file, or it can be manipulated directly with SQL. To load a new copy of the control file, you must first update all existing rows so that they are deleted (UPDATE cis_tcriteria_src_xref SET delete_flg = 'Y'; ). Then you must load a modified version of the file via SQL*Loader ( SQLLDR USER/PASSWORD@DB control=cis_tcriteria_src_xref.ctl).

The next step is to run the maintenance routines to populate the attributes into the appropriate tables. These can be performed by executing the following UNIX scripts:

To load consumer segment attributes, use:

  • cis_conseg_attr_maint.ksh

  • exec cis_maint_util.tcriteria_attr_cs_maint;

To load performance attributes, use:

  • cis_perf_attr_maint.ksh

To load product attributes, use:

  • cis_prod_attr_maint.ksh

To load store location attributes, use:

  • cis_store_attr_maint.ksh

Table name: cis_bus_obj_tcriteria_att_xref

Description: CIS_BUS_OBJ_TCRITERIA_ATT_XREF

After the above maintenance routines are complete, you can manually adjust the data in CIS_BUS_OBJ_TCRITERIA_ATT_XREF (BOTAX) in order to customize which attributes should be used and how. When adjusting the data in CIS_BUS_OBJ_TCRITERIA_ATT_XREF, consider the following:

  • Any attribute that is a participating attribute (PARTICIPATING_ATTR_FLG =Y) with a non-zero weight (DFLT_ATTR_WEIGHT) will be considered a primary attribute.

  • An attribute that you do not want to use can be marked as deleted by setting its DELETE_FLG=Y.

  • An attribute that is not participating, but is informational (INFORMATIONAL_ATTR_FLG=Y) cannot be used by the clustering algorithm, but is available for review within the UI.

  • The ATTR_SEQ column facilitates the ordering of attributes within the UI so that they can be presented in a desired sequence. The PL/SQL routine, cis_maint_util.tcriteria_attr_seq_maint, can set the values according to the selection of participating and primary attributes.

  • When maintaining data in this table, you should join this table to the CIS_TCRITERIA_ATTR (TCA) table by TCA.ID = BOTAX.TCRITERIA_ATTR_ID. This helps you identify the attribute that is being manipulated.

  • After performing any maintenance of the data in this table, you must make sure that the attribute weights are correctly set. You can run the cis_maint_util.updt_attr_wgts routine to get the weights to total 100%.

To enable a field:

update cis_bus_obj_tcriteria_att_xref, set participating_attr_flg = 'Y', and informational_attr_flg = 'N' where id = :id

To change the sequence of the attribute in the UI:

update cis_bus_obj_tcriteria_att_xref set attr_seq = 10 where id = :id

Sample WHERE clause components (note that a join with cis_tcriteria_attr is necessary to check CURRENT_FLG and DELETE_FLG in that table as well):

from CIS_BUS_OBJ_TCRITERIA_ATT_XREF cbotax, CIS_TCRITERIA_ATTR cta

  • where cbotax.BUSSOBJ_ID=1 and cbotax.OBJECTIVE_ID=3 and cbotax.TYPE_CRITERIA_ID in (1) and cbotax.TCRITERIA_ATTR_ID=cta.ID

  • and nvl(cbotax.CURRENT_FLG, 'Y') = 'Y' and nvl(cbotax.DELETE_FLG, 'N') = 'N'

  • and nvl(cta.CURRENT_FLG, 'Y') = 'Y' and nvl(cta.DELETE_FLG, 'N') = 'N'

  • and cta.SRC_COLUMN_NAME='SLS_AMT');

Table name: cis_tcriteria_src_xref

To delete data, you can update values in the table:

UPDATE cis_tcriteria_src_xref

SET delete_flg ='Y'

  • WHERE bussobj_id = :bussobj_id

  • AND objective_id = :objective_id

  • AND type_criteria_id = :type_criteria_id

  • AND src_entity_name = :src_entity_name;

To update data so that a source of attributes is available as a participating or information attribute, you can update the data like this:

UPDATE cis_tcriteria_src_xref

SET participating_attr_flg = :participating_attr_flg,

Informational_attr_flg = :informational_attr_flg

  • WHERE bussobj_id = :bussobj_id

  • AND objective_id = :objective_id

  • AND type_criteria_id = :type_criteria_id

  • AND src_entity_name = :src_entity_name;

Table name: cis_tcriteria_attr

Description: CIS_TCRITERIA_ATTR

Most maintenance of this data should occur through the cis_maint_util database package, so there should be no need to add rows to this table. However, an attribute can be removed by an update like this:

UPDATE cis_tcriteria_attr SET DELETE_FLG='Y' WHERE id=:id;

To change a label (note that label changes in UI-supplied XLF files are required as well):

UPDATE cis_tcriteria_attr set ui_display_name = 'Sample label' where id = :id

Table name: cis_bus_obj_nested_tcriteria

Description: CIS_BUS_OBJ_NESTED_TCRITERIA

To update value:

UPDATE cis_bus_obj_nested_tcriteria
        SET current_flg = 'N',
                delete_flg  = 'Y'
 WHERE bussobj_id = :bussobj_id
       AND objective_id = :objective_id
       AND type_criteria_id = :type_criteria_id
AND chl_type_criteria_id = :chl_type_criteria_id;

To make a type criteria available for a nested cluster of another type criteria, the data in this table can be modified by updating the CURRENT_FLG, DELETE_FLG and CHL_CRITERIA_ALLWD_FLG to appropriate values (e.g. CURRENT='Y', DELETE_FLG='N', CHL_CRITERIA_ALLWD_FLG='Y').

Table name: cis_effective_period

Description: CIS_EFFECTIVE_PERIOD

To insert value: Use following SQL Loader command to insert records using the .ctl file.

SQLLDR USER/PASSWORD@DB control=cis_effective_period.ctl

To insert using regular insert:

INSERT INTO cis_effective_period
  (id, descr, start_period_id, end_period_id, bussobj_id, objective_id, type_criteria_id, active_flg)
VALUES
  (1, 'Winter Jan 12', 1005040907, 1005040937, 1, 3, -1, 'Y');

Table name: cis_bus_obj_tcriteria_xref

Description: CIS_BUS_OBJ_TCRITERIA_XREF

To insert values use following SQL Loader command:

SQLLDR USER/PASSWORD@DB control= cis_bus_obj_tcriteria_xref.ctl

To insert using regular insert:

INSERT INTO cis_bus_obj_tcriteria_xref
  (bussobj_id, objective_id, type_criteria_id, primary_flg, bus_obj_tcriteria_seq, def_scre_threshold_pct, outlier_rule_id, outlier_attr_value_1, outlier_attr_value_2, outlier_attr_value_3, newstr_rule_id, disable_attr_wts, current_flg, delete_flg, created_by_user, created_on_dt, changed_by_user, changed_on_dt)
VALUES
  (1, 3, 1, '', 2, NULL, 1, NULL, NULL, NULL, 2, 'Y', 'Y', '', USER, SYSDATE, USER, SYSDATE);

Advanced Algorithm Settings: cis_algorithm_attr

Description: CIS_ALGORITHM_ATTR

To insert values use following SQL Loader command:

SQLLDR USER/PASSWORD@DB control= cis_algoritm_attr.ctl

To insert using regular insert:

INSERT INTO cis_algorithm_attr
  (id, NAME, keyword_name, descr, algorithm_attr_type_id, dflt_value, attr_seq, cis_algorithm_id, user_provided_flg, current_flg, delete_flg, created_by_user, created_on_dt, changed_by_user, changed_on_dt)
VALUES
  (1, 'Lambda Stop', 'lambdaStop', 'Given the original lambda, calculate how many epochs need to run (Should be specific to Cluster Criteria)', 4, '.1', 1, 1, 'N', 'Y', 'N', USER, SYSDATE, USER, SYSDATE);

To delete value:

DELETE FROM cis_algorithm_attr WHERE id=:id;

Advanced Algorithm: cis_bus_obj_tcrit_algo_attr

Description: CIS_BUS_OBJ_TCRIT_ALGO_ATTR

Table 5-11 CIS_BUS_OBJ_TCRIT_ALGO_ATTR

Field Description

ALGORITHM_ATTR_ID

FK for the algorithm attribute table.

BUSSOBJ_ID

FK for the business object objective.

OBJECTIVE_ID

FK for the clustering objective.

TYPE_CRITERIA_ID

Type Criteria ID.

NAME

This is the name of the clustering algorithm attribute. There are some specific attributes per algorithm. For example, BaNG uses attributes such as distance metric, converge factor, and number of iterations.

KEYWORD_NAME

This field contains the attribute or property name recognized internally by the application code. This value is used within the code to identify the property and must be provided with the correct case and format recognized within the code.

DESCR

Additional descriptive text for this algorithm attribute.

ALGORITHM_ATTR_TYPE_ID

Algorithm attribute type ID.

DFLT_VALUE

Default value to be used for the attribute.

ATTR_SEQ

Sequence in which the attribute should be processed or presented.

CIS_ALGORITHM_ID

This is the algorithm ID. This field is populated only for algorithm specific properties or attributes; otherwise, this field is null.

USER_PROVIDED_FLG

This flag = 'Y' indicates the user must set this value using the UI while creating the scenario configuration.

CURRENT_FLG

A flag to indicate whether this row is the most recent row (Y) or if it a historical row (N).

DELETE_FLG

A flag to indicate whether the row is considered deleted (Y) or not (N).

CREATED_BY_USER

User who created the record.

CREATED_ON_DT

Record creation date.

CHANGED_BY_USER

User who last changed the record.

CHANGED_ON_DT

Last changed date.


To update statement to enable or disable a record:

UPDATE cis_bus_obj_tcrit_algo_attr
   SET current_flg = 'N',
       delete_flg  = 'Y'
 WHERE algorithm_attr_id = :algorithm_attr_id
   AND bussobj_id = :bussobj_id
   AND objective_id = :objective_id
   AND type_criteria_id = :type_criteria_id;

ASO Configuration

ASO has configurable parameters, listed in Table 5-12, "ASO Configuration Parameters". All have default values, and values chosen as a reasonable starting value, but are configurable and editable by the administrator. In many cases, if the user does not select a value for a particular field, it will default to the value set in this table.

Note that some parameters must be initialized at setup. See Table 5-12. Many of these items that require initialization cannot be configured later. See Oracle Retail Advanced Science Engine Implementation Guide, Volume 2 - Data Processes and Configuration Variables for the complete list of which configurations are configurable, updateable by the application, and required at initialization.

The following are the major categories of ASO parameters:

  • Alert settings (conditions in which ASO triggers a user alert).

  • ASO objective and constraints settings (the settings determining units and default settings for constraints).

  • Demand and replenishment settings (the settings for demand and replenishment models).

  • Demand transference and service level control settings.

  • Gurobi solver parameters (these require expertise in optimization and LP solvers to adjust).

  • Default ranges (minimum and maximum values for capacity, height, facings, blocks, and service levels).

  • Name, column, and label settings for summary reports.

Table 5-12 ASO Configuration Parameters

Application Code Parameter Name Description Must Initialize Example Parameter Value

SO

ALRT_LESS_THAN_PCT_USED_SPACE

An alert will be triggered if the run optimization results use less space than the value specified by this global parameter.

N

0.8

SO

ALRT_LESS_THAN_SERVICE_LEVEL_AMT

An alert will be triggered if the run optimization results have a sales service level lower than the value specified by this global parameter.

N

0.8

SO

ALRT_LESS_THAN_SERVICE_LEVEL_QTY

An alert will be triggered if the run optimization results have a quantity service level lower than the value specified by this global parameter.

N

0.8

SO

ALRT_MORE_THAN_CNT_PRODUCT_DROPPED

An alert will be triggered if the run optimization results dropped more products than the value specified by this global parameter.

N

10

SO

ALRT_MORE_THAN_PCT_PRODUCT_DROPPED

An alert will be triggered if the run optimization results dropped a percent of product higher than the value specified by this global parameter.

N

0.2

SO

ALRT_NO_FEASIBLE_SOLUTION

An alert will be triggered if the run optimization results have no results.

N

0

SO

ALWAYS_REVIEW_MAPPING_RES_FLG

Default=N. A Y flag indicates a user mapping review is always required (regardless of results or errors). N triggers a review base on other flags and conditions.

N

N

SO

CAPACITY_RANGE_UNITS

Capacity range units used by ASO Solver. This parameter value maps to a CRU row with this value ID within so_prod_constr_range_values table.

N

25

SO

DEFAULT_APPL_USER

User identifier to be used for batch activities that require user tracking.

N

SO_BATCH_USR

SO

DEFAULT_BAY_MERGE_CONSTR_FLG

Default indicator for the use of merging bays constraint.

N

N

SO

DEFAULT_BLOCKING_CONSTR_FLG

Default indicator for the use of blocking constraint.

N

Y

SO

DEFAULT_OBJECTIVE_FUNC_ID

Internal ID that identifies the default objective function to use for optimization locations.

N

1

SO

DEFAULT_SPACING_CONSTR_FLG

Default indicator for use of spacing constraint.

N

Y

SO

DEFAULT_USABLE_SPACE_CONSTR_FLG

Default flag indicating if space constraint should be used.

N

N

SO

DEFAULT_USABLE_SPACE_CONSTR_PCT

Default usable space constraint percentage.

N

1

SO

DEMAND_DISTRIBUTION

Demand distribution used by ASO Solver.

N

Normal

SO

DFLT_ANALYTICAL_THETA

Analytical parameter to calculate tolerance in a blocking diagram is set to theta * (min width of items in a group).

N

0.1

SO

DFLT_HORIZONTAL_BLOCKING_FLG

A Y value for this flag indicates the analytics that combining adjacent attribute blocks should be done (when possible).

Y

Y

SO

DFLT_REPL_CASEPACK

Default replenishment parameter for casepack.

N

1

SO

DFLT_REPL_FACINGS_LIFT

Default facing lift.

N

0

SO

DFLT_REPL_SHELF_PARAM

Default shelf replenishment parameter.

N

0

SO

DFLT_REPL_SHELF_TT

Default replenishment type.

N

2

SO

DFLT_REPL_STDEV_BOOSTER

Default standard deviation booster.

N

0

SO

DFLT_REPL_TYPE

Default replenishment type.

N

2

SO

DFLT_SHELF_THICKNESS

Default shelf thickness that is used by the POG-shelf interface to create the initial bottom shelf for empty shelf fixtures.

Y

1

SO

DT_DAMPENING_FACTOR

Factor to dampen the DT effects for ASO.

N

0.5

SO

EMPTY_BLOCK_CONSTR_ALRT

Alert internal ID for empty visual guideline group alert.

N

1

SO

END_URL

Application Login End URL.

N

/faces/oracle/retail/rse/so/fe/view/page/SpaceOptimizationHome.jspx

SO

GUR_CLIQUECUTS

Gurobi parameter. Clique cut generation.

N

-1

SO

GUR_COVERCUTS

Gurobi parameter. Cover cut generation.

N

-1

SO

GUR_FLOWPATHCUTS

Gurobi parameter. Flow path cut generation.

N

-1

SO

GUR_HEURISTICS

Gurobi parameter. Turn MIP heuristics up or down.

N

0.05

SO

GUR_IMPLIEDCUTS

Gurobi parameter. Implied bound cut generation.

N

-1

SO

GUR_MIPFOCUS

Gurobi parameter. Set the focus of the MIP solver.

N

0

SO

GUR_MIPSEPCUTS

Gurobi parameter. MIP separation cut generation.

N

0

SO

GUR_MIRCUTS

Gurobi parameter. MIR cut generation.

N

-1

SO

GUR_MODKCUTS

Gurobi parameter. Mod-k cut generation.

N

-1

SO

GUR_NODEMETHOD

Gurobi parameter. Method used to solve MIP node relaxations.

N

1

SO

GUR_PRESOLVE

Gurobi parameter. Presolve level.

N

-1

SO

GUR_RINS

Gurobi parameter. RINS heuristic.

N

-1

SO

GUR_SYMMETRY

Gurobi parameter. MIP symmetry detection.

N

-1

SO

GUR_TIMELIMIT

Gurobi parameter. Time limit.

N

90

SO

GUR_THREADS

Gurobi Parameter. Number of allowed threads.

N

0

SO

GUR_ZEROHALFCUTS

Gurobi parameter. Zero-half cut generation.

N

-1

SO

GV_DAYS_TO_VALIDATE_WO_CHANGES

Number of days without direct changes the validation process will consider data objects for validation.

N

21

SO

GV_RESULT_DETAIL_LEVEL

Level of detail for each validation that is used to produce the results (DETAIL: rows for every failure or SUMMARY: a row at the data object level).

N

SUMMARY

SO

GV_VALIDATION_SECTIONS_TO_RUN

Global validations will be executed for the selected data objects. ASSORTMENT, POG, MAPPING and DS (Display Style).

N

ASSORTMENT_POG_MAPPING_DS

SO

INVALID_ATTR_VALUE_CONSTR_ALRT

Alert internal ID for attribute value alert.

N

3

SO

MAX_CAPACITY_RANGE

Maximum capacity range used by ASO Solver.

N

80

SO

MAX_HEIGHT_RANGE

Maximum height range used by ASO Solver.

N

72

SO

MAX_NUMBER_OF_FACINGS

Maximum number of facings used by ASO Solver.

N

5

SO

MAX_NUM_OPT_LOC_BLOCK

Maximum number of blocks per optimization location.

N

10

SO

MAX_SHELF_THICKNESS

Maximum shelf thickness that can be used while doing shelf fixture edits.

Y

2.5

SO

MIN_CAPACITY_RANGE

Minimum capacity range used by ASO Solver.

N

0

SO

MIN_HEIGHT_RANGE

Minimum height range used by ASO Solver.

N

0

SO

MIN_NUMBER_OF_FACINGS

Minimum number of facings used by ASO Solver.

N

1

SO

MIN_SHELF_DEPTH

Minimum shelf depth that can be used while doing shelf fixture edits. The maximum shelf depth is defined by the fixture depth.

Y

2

SO

MIN_SHELF_THICKNESS

Minimum shelf thickness that can be used while doing shelf fixture edits.

Y

0.5

SO

MIN_SHELF_VERTICAL_GAP

Specific smallest allowable vertical offset (SAVO) value.

Y

2.5

SO

MNG_ASSORT_NO_WKS

Display assortments for past n weeks.

N

52

SO

MNG_RUN_NO_WKS

Display run for past n weeks.

N

52

SO

NUMBER_OF_SIMULATED_DAYS

Number of simulated days used by ASO Solver.

N

1000

SO

OPT_LOC_LVL1_NAME_STR

This value is used entirely or as a prefix to generate the pogset location and optimization location top level names.

N

All Locations

SO

OPT_LOC_LVL2_NAME_STR

This value is used as a prefix to generate the pogset location and optimization location mid level names.

N

PC_

SO

OPT_LOC_LVL3_NAME_STR

This value is used as a prefix to generate the pogset location and optimization location bottom level names.

N

SC_

SO

PC_SUM_CAPRANGE

Capacity Range label for Product Constraints Summary.

N

Set Capacity Range

SO

PC_SUM_ELEVATION

Elevation label for Product Constraints Summary.

N

elevation

SO

PC_SUM_ELEVRANGE

Elevation Range label for Product Constraints Summary.

N

Set Elevation Range

SO

PC_SUM_FACERANGE

Facing Range label for Product Constraints Summary.

N

Set Facing Range

SO

PC_SUM_FACINGS

Facings label for Product Constraints Summary.

N

facings

SO

PC_SUM_INCLUSION

Inclusion label for Product Constraints Summary.

N

Inclusion

SO

POGC_SUM_MERGEBAYS

Merge Adjacent Bays label for POG Constraints.

N

Merge Adjacent Bays

SO

POGC_SUM_PRODSPACE

Use Product Spacing label for POG Constraints.

N

Use Product Spacing

SO

POGC_SUM_USABLESPACE

Set Usable Space label for POG Constraints.

N

Set Usable Space

SO

POGC_SUM_VG

Visual Guidelines label for POG Constraints.

N

Use Visual Guidelines

SO

POG_SET_LVL1_NAME_STR

This value is used to generate the name for the top level node on planogram list.

N

All Planograms

SO

PRODUCT_INCLUSION

Product inclusion rule used by ASO Solver. This parameter value maps to a IN row with this value ID within so_prod_constr_range_values table.

N

2

SO

PRODUCT_STACKING_HEIGHT_LIMIT

Product stacking height limit that is applied as a global setting to all top products (TEMPORARY PARAM).

N

24

SO

PROD_ATTR_NAME_DELIMITER

This value is used as a delimiter between the product name and description and the attribute name and description when setting up POG attributes. A NULL value here will result in no concatenations.

N

-

SO

REPLENISHMENT_FREQUENCY

Replenishment frequency used by ASO Solver.

N

1

SO

REVIEW_DSF_ERROR_FLG

A Y flag indicates a user review is required for DSF errors. N lets the process move forward to the next stage using the DSF available.

N

Y

SO

REVIEW_UNMAPPED_PROD_FLG

A Y flag indicates a user review is required for unmapped products. N lets the process move forward to next stage, eliminating unmapped products. This is not desired for products.

N

Y

SO

REVIEW_UNMAPPED_STORE_FLG

A Y flag indicates a user review is required for unmapped stores. N lets the process move forward to the next stage, eliminating unmapped stores.

N

Y

SO

SO_CAL_HIER_TYPE

The hierarchy ID to use for the calendar. (Installation configuration)

Y

10

SO

SO_FISCAL_CAL_HIER_TYPE

The hierarchy ID to use for the fiscal calendar. (Installation configuration)

Y

11

SO

SO_LOC_HIER_TYPE

The hierarchy ID to use for location. (Installation configuration)

Y

2

SO

SO_MIN_SERVICE_LEVEL

Minimum target service level for ASO optimization process.

N

0.8

SO

SO_PROD_HIER_LEVEL_FOR_LEAF_NODE

Product hierarchy level number for leaf node.

Y

7

SO

SO_PROD_HIER_TYPE

The hierarchy ID to use for the product. (Installation configuration)

Y

1

SO

START_URL

Application Login Start URL.

N

/faces/oracle/retail/rse/so/fe/view/page/SpaceOptimizationHome.jspx

SO

STD_ADJUSTMENT_COEFFICIENT_1

Analytical parameter. Demand standard deviation adjustment parameter 1.

N

0.05

SO

STD_ADJUSTMENT_COEFFICIENT_2

Analytical parameter. Demand standard deviation adjustment parameter 2.

N

0.19

SO

TOP_SHELF_STACKING_HEIGHT_LIMIT

Top shelf stacking height limit that applies as a global setting to all top shelves.

N

18

SO

TRANSIT_TIME

Default transit time used by ASO Solver.

N

0

SO

UI_CONFIG_PC_RENDERED_COL_7

UI configuration for product constraints render column 7. Default Y means column is rendered.

N

N

SO

UI_CONFIG_PC_RENDERED_COL_8

UI configuration for product constraints render column 8. Default Y means column is rendered.

N

N

SO

UI_CONFIG_PC_RENDERED_COL_9

UI configuration for product constraints render column 9. Default Y means column is rendered.

N

N

SO

UI_CONFIG_PC_VISIBLE_COL_1

UI configuration for product constraints visible column 1. Default Y means column is visible.

N

N

SO

UI_CONFIG_PC_VISIBLE_COL_2

UI configuration for product constraints visible column 2. Default Y means column is visible.

N

N

SO

UI_CONFIG_PC_VISIBLE_COL_3

UI configuration for product constraints visible column 3. Default Y means column is visible.

N

N

SO

UI_CONFIG_PC_VISIBLE_COL_4

UI configuration for product constraints visible column 4. Default Y means column is visible.

N

Y

SO

UI_MAX_POG_CONFIG_LENGTH

UI configuration for maximum length bound for the Create Lengths pop-up.

N

600

SO

UI_MIN_POG_CONFIG_NO_OF_BAYS

UI configuration for minimum number of bays bound for the Create Lengths pop-up.

N

1

SO

UI_MAX_POG_CONFIG_NO_OF_BAYS

UI configuration for maximum number of bays bound for the Create Lengths pop-up.

Y

N

SO

UI_THRESHOLD_SL

UI configuration for Thresholds Configurable for Service Level formatting.

N

Y

SO

UI_THRESHOLD_SL_MAX

UI configuration for Thresholds MAX, after which color green is shown.

N

0.85

SO

UI_THRESHOLD_SL_MIN

UI configuration for Thresholds MIN, below which color red is shown.

N

0.75

SO

UNMAPPED_ATTR_VALUE_CONSTR_ALRT

Alert internal ID for unmapped attribute alert.

N

2

SO

USE_OPT_DT

ASO global indicator for applying DT.

N

N

SO

USE_SERVICE_LEVEL_CONSTRAINT

ASO global indicator for applying service level constraints.

N

Y

SO

WEEK_LENGTH

Length of the week recognized by ASO Solver.

N

7


User Interface Configuration

The CDT, DT, AC, and ASO user interfaces can be configured by adjusting UI labels and date masks. Oracle Metadata Services (MDS) is used for personalization and customization.

Label Customizations

It is possible to replace most labels and text strings displayed in the user interface with custom labels, if desired. Editing these strings requires extracting and modifying a file within the application archive, which will vary based on the primary language being displayed in the browser. Figure 5-6 shows an example for ASO.

Figure 5-6 Label Customization

Surrounding text describes Figure 5-6 .

Similar UI label customizations are possible for any ORASE UI application by making corresponding changes to the file and directory names for the application in question.

For ASO, the file name uses the following format:

SOViewControllerBundle.xlf (English only)

SOViewControllerBundle_<lang_code>.xlf (All other languages, where lang_code is the Oracle abbreviated language code, such as SOViewControllerBundle_el.xlf)

Use the following process to make changes to the UI labels in the above files:

  1. Locate the directory containing your deployed application archive. For example:

    WLS_DOMAIN_HOME/servers/AdminServer/stage/SO_UI/SpaceOptimization_application1.ear

  2. Execute the following command to extract the application interface files:

    jar -xvf SpaceOptimization_application1.ear soviewcontroller.war

  3. Execute this command to extract the desired label bundle:

    jar -xvf soviewcontroller.war WEB-INF/classes/oracle/retail/rse/so/fe/view/SOViewControllerBundle.xlf

  4. Edit the extracted file by locating the labels that will be changed and entering new text strings. Only the text in the <source></source> tags may be modified; the rest of the file must not be changed or the user interface will not function properly.

  5. When your changes have been completed, save the file.

  6. Execute the following command to add the file back into the application interface package:

    jar -uvf soviewcontroller.war WEB-INF/classes/oracle/retail/rse/so/fe/view/SOViewControllerBundle.xlf

  7. Execute the following command to add the interface files back into the application archive:

    jar -uvf SpaceOptimization_application1.ear soviewcontroller.war

  8. Restart your WebLogic server to pick up the modified files.

Metadata for ASO, AC, CDT, and DT can be adjusted as needed by modifying the corresponding database entries for each application. See AC Configuration for examples of MDS customizations.

Additional Customizations and Extensions

In addition to the configuration points described above, the user interface can be customized by using Oracle JDeveloper and Oracle Metadata Services (MDS). Out-of-the-box, MDS is used by CDT, DT, AC, and ASO standalone (not installed as part of CM under the Fusion Client). It is possible to add matching back end objects as well.

ETL Customization and Configuration

For ETL customization and configuration, the metadata-driven set of data validation rules and corresponding database types can be extended in the event that additional data validation rules are required above what is already provided.

It is also possible to customize the level at which data validation rules will cause the loader to abort, instead of just bypassing the rows that were invalid. There are two required steps:

  1. A new configuration is needed.

  2. A new function call is required that references that configuration record, which actually does the data validation.

Advanced Database Customization

A few options are available for performing metadata adjustments to customize some algorithms used by the applications. It is possible to extend provided database application code so that an alternate implementation is used in order to add some pre processing, some post processing, or to alter an existing algorithm. Since many components of the applications are implemented with database types, these types can be extended, in order to customize the implementation. Although the details of this customization are outside the scope of this document, these tables (RSE_SRVC_CONFIG, RSE_LOAD_SRVC_CFG, DT_EXCLUDE, CDT_EXCLUDE, CIS_NEWSTR_RULES, CIS_OUTLIER_RULES) define details of an implementation to be used for a process. It is possible to alter data in these tables in order to specify a different implementation for a process, without requiring changes to the provided implementations.

CDT and DT Stage Run Configuration

It is possible to adjust the stages and steps for the CDT and DT data mining activities. It is possible to configure what is being run and to remove and add steps, as desired. The configuration is done through database tables. RSE_PROC_TMPL specifies a computation group, while RSE_PROC_TASK_TMPL specifies the computation stages and steps.

In addition to the supplied sequence of steps, it is possible to define implementation-specific sequences. The actual procedures to be executed are defined in XML files application-context.xml being kept in module's corresponding WAR file. (See WebLogic Configuration.) An example application-context.xml file can be found in Appendix F, "Sample Application Context File (DT)."

CDT, DT, MBA, and AC Configuration Pluggable Science

The computation and data mining algorithms have several configuration points. All of computational modules have adjustable configuration entries that can affect the various processes and algorithms. Some of these configurations can be adjusted prior to using the applications to adjust performance.

  • AC: the clustering algorithm setup is done through XML and metadata.

  • DT: the configuration of the modules that execute as a part of the algorithm and the stages and steps are configurable in the database and XML, per above.

  • CDT: the configuration of the modules that execute as a part of the algorithm and the stages and steps are configurable in the database and XML, per above.

  • MBA: the configuration is in the database.

Data filtering and results pruning for DT and CDT can be adjusted by changing metadata in the appropriate DB tables, per above.

Most database-based batch processes and analytics are implemented in extendable database types, which offer the ability to adjust portions of the algorithms:

Parameter collections enable extensibility through external options.

Parallelism can be adjusted to limit or increase database resource utilization.

Implementation specific pre-processing or post-processing routines can be easily added by extending provided types and adjusting metadata to call alternate implementations.

Internationalization

The user interface supports multiple languages in a single instance, but the underlying database only supports a single language in an instance.

The database default language is selected at installation. Once set, there is no support for switching the database language. The application user interfaces adhere to the language setting for each user's browser. For example, to change the language for the Firefox browser:

  1. Select Tools from the menu bar.

  2. Select Options.

  3. Select Choose.

  4. Select the language to add.

The following language are supported: English, German, Greek, Spanish, French, Croatian, Hungarian, Italian, Japanese, Korean, Dutch, Polish, Brazilian Portuguese, Russian, Swedish, Turkish, Simplified Chinese, and Traditional Chinese.
