The TTR Event Panel displays a list of all TTR events associated with the selected transaction (TDR). Whenever the user selects a TDR in the TDR Panel, the TTR Event Panel is refreshed with the corresponding TTR events. The Event table has a number of columns:

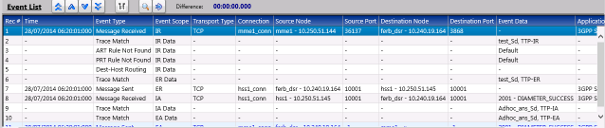

Figure 3-8 Event List Panel
The user can also click Toggle Ladder Diagram to view events in an Event Diagram.
Table 3-1 Event Diagram Properties
Event Type | Event Scope |
---|---|
Message Received | IR (Ingress Request), IA (Ingress Answer) |
Message Sent | ER (Egress Request), EA (Egress Answer) |
Message Created | App Data (Application Data) |
App Invoked | App (Application) |
App Result | App Data |
App Invocation Failed | IR Data, IA Data |
Trace Match | IR Data, ER Data, IA Data, EA Data |
Linked TTR | |
ART Rule Match | IR Data |
ART Rule Not Found | IR Data |
PRT Rule Match | IR Data |
PRT Rule Not Found | IR Data |
Unavailability Action | IR Data, IA Data |
Route List Selected | IR Data |
Dest-Host Routing | IR Data |
Alternate Implicit Routing | IR Data |
Route Group Selected | IR Data |
Mediation Rule Match | IR Data, IA Data, ER Data, EA Data |
Request Rerouted | IR Data |
Answer Timeout | IA |
Answer Matching Failed | IA Data |
Address Resolution Match | App Data |
Routing Exception | App Data |
DP Query Sent | App Data |
DP Response Received | App Data |
DP Query Failure | App Data |
DP Response Timeout | App Data |
SBR Query Sent | App Data |
SBR Response Received | App Data |
SBR Query Failure | App Data |
SBR Response Timeout | App Data |
Diameter Request processing routine invoked | IR Data |
Diameter Answer processing routine invoked | IR Data |
U-SBR Query send | IR Data |
Callback invoked | IR Data |
Subroutine name not found | IR Data |
Runtime error | IR Data |
Debug message | IR Data |
U-SBR Query Result Received | IR Data |
U-SBR Query Send Failed | IR Data |
