igs ASNInPublishing Web Service
Functional Description

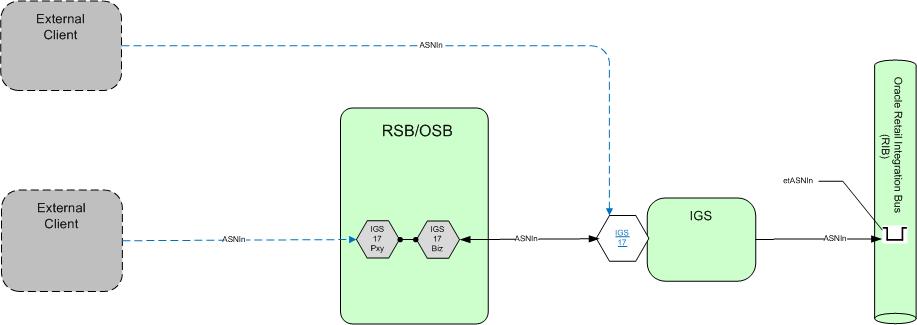

RMS subscribes to the ASNIn information as published from the RIB. This Web Service will accept the RIB ASNIn Object and publish it to the RIB JMS topics for processing by the RIB RMS ASNIn Subscriber.
Technical Description
Services
igs-ASNInPublishingService |
|
Description |
ASNs originating from external vendors or SIM, the message is routed to the proper RWMS warehouse instance based on the facility type found in the routing information and the �To� location found in the payload. External app publishes ASN Inbound msgs on to the RIB System. RMS subscribes to these inbound ASAs to create shipment records. Topic Name : etASNIn Subcriber = ASNIn_sub (RMS). |
Integration Catalog |
|
Service WSDL |
|
ServiceDefinition.xml |
Operations
Operation Name |
Description |
publishASNInDeleteUsing |
This Operation invokes the publishing of "Delete" event for the ASN(Inbound). |
publishASNInModifyUsing |
This Operation invokes the publishing of "Modify" event for the ASN(Inbound). |
publishASNInCreateUsing |
This Operation invokes the publishing of "Create" event for the ASN(Inbound). |
Operation Business Objects (Payload)
Operation Name |
Input |
Input Sample |
Output |
Output Sample |
Input Mapping Report |
Output Mapping Report |
publishASNInDeleteUsing |
||||||
publishASNInModifyUsing |
||||||
publishASNInCreateUsing |
