This chapter describes the Deployment tab. This tab has two sub-tabs; Deployment Diagram and Server Details.

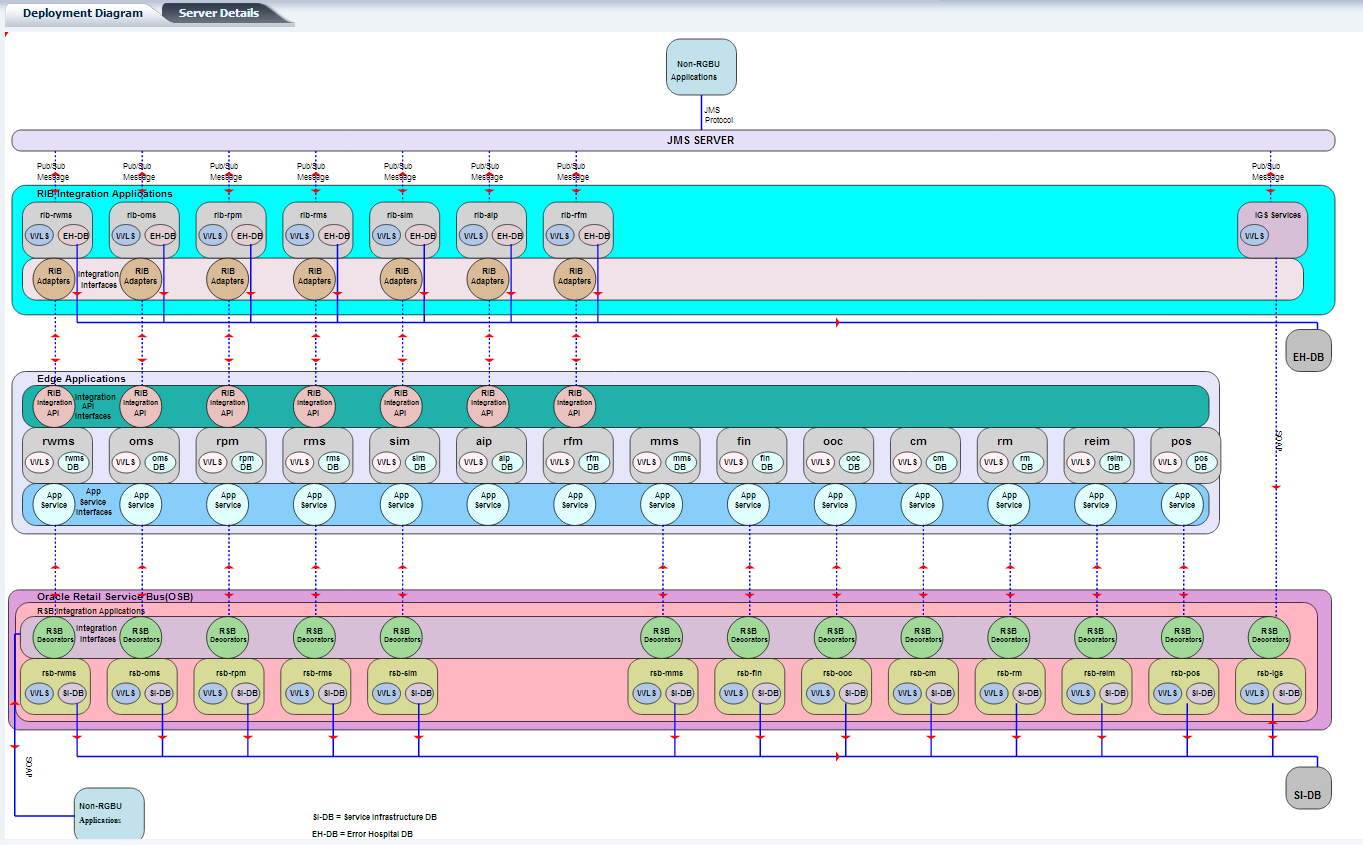

The deployment diagram is dynamically generated based on the RSB and RIB home installation configuration files. The diagram shows the physical and logical relationships among the various application servers, database servers, JMS servers and clusters in the deployment environment. The diagram also shows the software components, RIB integration applications and RSB decorator services, installed on them.
You can click a component in the deployment diagram to view its details in Server Details tab.
This tab shows the deployment information and relationships in a tabular form.

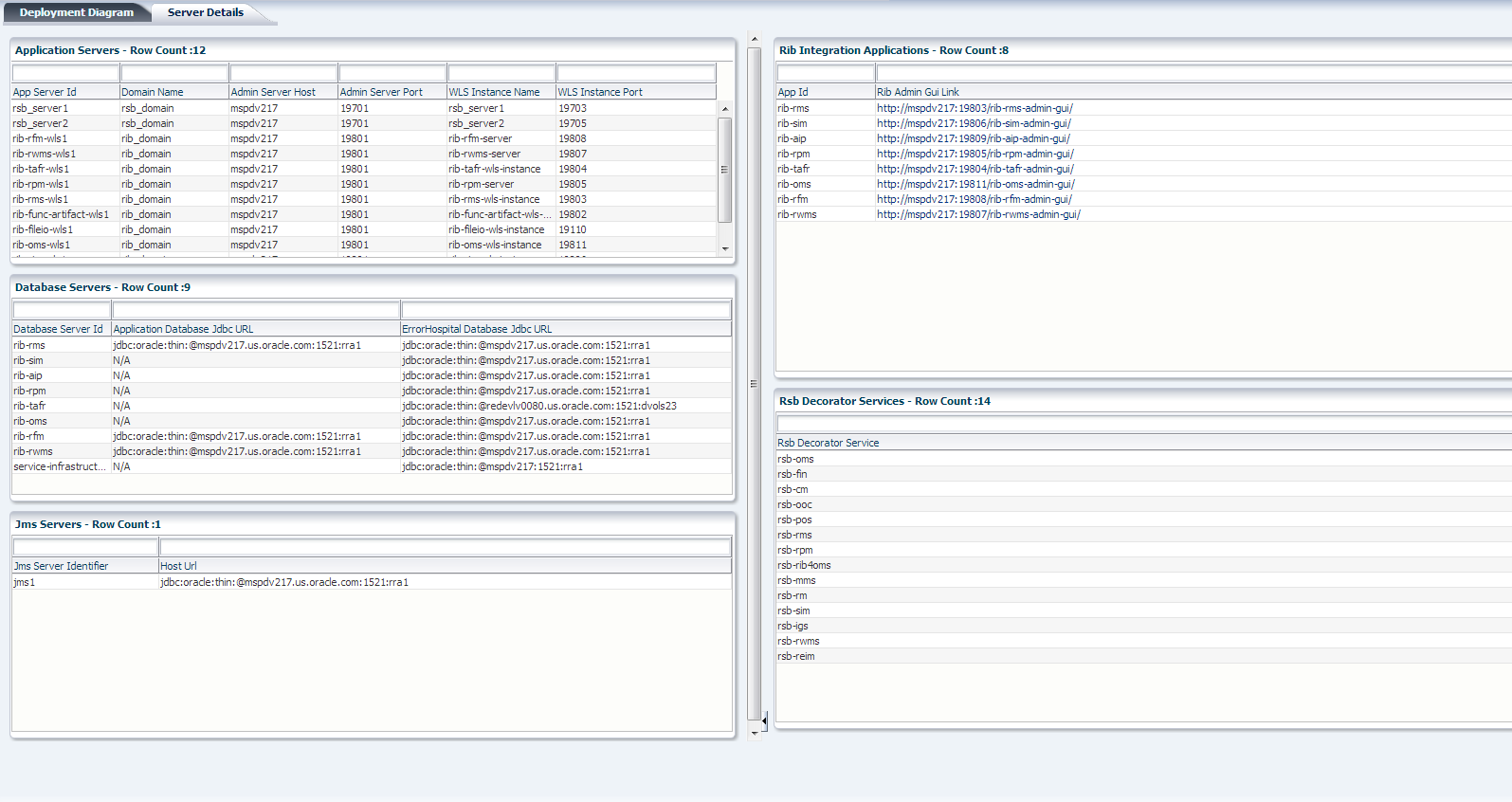

The Server Details page contains the following panels:
This panel lists application server details including App server ID, domain in which server instance is created, administrator server host name and port, WebLogic instance name and port.
This panel lists all database instances configured in the system and includes related details such as server ID, application database JDBC URI and the corresponding error hospital JDBC URI.
