igs XStorePublishing Web Service
Functional Description

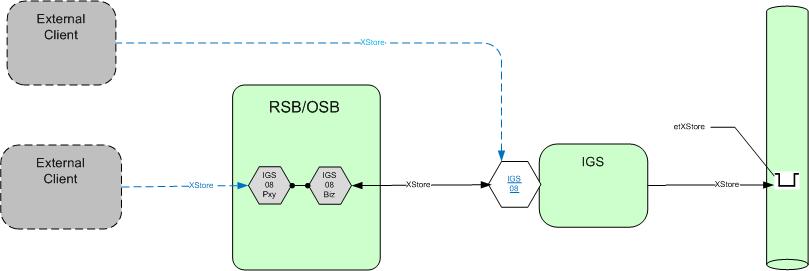

RMS subscribes to the XStore information as published from the RIB. This Web Service will accept the RIB Xstore Object and publish it to the RIB JMS topics for processing by the RIB RMS Xstore Subscriber.
Technical Description
Services
igs-XStorePublishingService |
|
Description |
An external application publishes Store information onto the RIB.RMS provides the API to obtain various events viz Create, Modify and Delete associated to an externally generated Store. Topic Name : etXStore Subcribers : XStore_sub (RMS). |
Integration Catalog |
|
Service WSDL |
|
ServiceDefinition.xml |
Operations
Operation Name |
Description |
publishXStoreDeleteUsing |
This Operation invokes the publishing of "Delete" event for the XStore. |
publishXStoreLocTrtCreateUsing |
This Operation invokes the publishing of "Create" event for the XStore Loc Trt. |
publishXStoreLocTrtDeleteUsing |
This Operation invokes the publishing of "Delete" event for the Store Loc Trt. |
publishXStoreModifyUsing |
This Operation invokes the publishing of "Modify" event for the XStore. |
publishXStoreCreateUsing |
This Operation invokes the publishing of "Create" event for the XStore. |
publishXStoreWTCreateUsing |
This Operation invokes the publishing of "Create" event for the XStoreWT. |
publishXStoreWTDeleteUsing |
This Operation invokes the publishing of "Delete" event for the XStoreWT. |
Operation Business Objects (Payload)
Operation Name |
Input |
Input Sample |
Output |
Output Sample |
Input Mapping Report |
Output Mapping Report |
publishXStoreDeleteUsing |
||||||
publishXStoreLocTrtCreateUsing |
||||||
publishXStoreLocTrtDeleteUsing |
||||||
publishXStoreModifyUsing |
||||||
publishXStoreCreateUsing |
||||||
publishXStoreWTCreateUsing |
||||||
publishXStoreWTDeleteUsing |
