<dvt:bubbleChart>

dvt:bubbleChart bubbleChart bubble chart

UIComponent class: oracle.adf.view.faces.bi.component.chart.UIBubbleChart
Component type: oracle.dss.adf.chart.BubbleChart

Bubble Chart

Overview

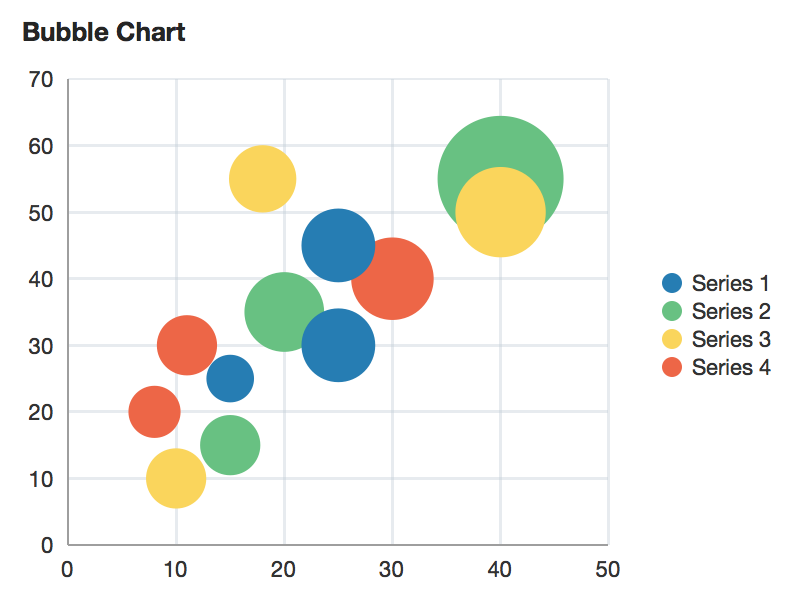

A chart displaying three measures using data markers plotted on a 2D plane, where the size of the data markers represent the proportional values of the third measure.

<dvt:bubbleChart value="#{chartDataSource.defaultBubbleData}" var="row">
  <f:facet name="dataStamp">
    <dvt:chartDataItem series="#{row.series}" group="#{row.group}" x="#{row.x}" y="#{row.y}" z="#{row.z}"/>
  </f:facet>
</dvt:bubbleChart>

Related Tags

Customization Options

Animation

Animations can be enabled on data change or on initial display by adding af:transition as a child of this component. The following trigger types and transitions are supported:

dataChange: none (default), auto
display: none (default), auto

Axis Customization

The chart axes can be customized using the dvt:chartXAxis and dvt:chartYAxis tags. Customization options include titles, axis extents, and tick increments.

Conditional Formatting

Properties of specific data items or series can be customized using EL expressions for attributes on the dvt:chartDataItem and dvt:chartSeriesStyle.

Data Labels

Data labels can be specified using the label attribute on dvt:chartDataItem. The position and style of the data labels can also be customized.

Legend

The legend can be hidden, positioned, or customized using dvt:chartLegend.

Number Formatting

Number formatting options are available through dvt:chartValueFormat and dvt:chartTickLabel.

Reference Objects

Reference lines and reference areas can be added to the chart through the associated axis. For example, to add a reference line for a y-axis value, a dvt:referenceLine should be added as a child of dvt:chartYAxis.

Series Customization

Series properties can be customized using dvt:chartSeriesStyle, which is supported within the seriesStamp facet. To declaratively specify several dvt:chartSeriesStyle tags, wrap within an af:group:

<f:facet name="seriesStamp">
  <af:group>
    <dvt:chartSeriesStyle series="Series 1" color="#0000ff"/>
    <dvt:chartSeriesStyle series="Series 2" color="#ff0000"/>
  </af:group>
</f:facet>

Series Effect

The fill effect of the data objects can be customized using the seriesEffect attribute, providing support for gradient, pattern, and solid fills.

Stacked Charts

Stacked charts can be used to compare cumulative values across groups. Stacking can be enabled by using the stack attribute.

Interactivity Features

Hide and Show Behavior

The hideAndShowBehavior attribute allows the end user to filter the visible data set by clicking on the legend items.

Hover Behavior

The hoverBehavior attribute provides support for dimming of unrelated data objects as the user hovers on objects in the chart.

Popups and Context Menus

Popups and context menus can be displayed using af:showPopupBehavior, which is a supported child of dvt:chartDataItem.

Selection

Selection of data items can be enabled using the dataSelection attribute. Selection can be processed using selectionListener on the server or the selection event type on the client.

Zoom and Scroll

Zoom and scroll can be enabled using the zoomAndScroll attribute. The initial viewport of the chart can be set using the viewportMinimum/Maximum attributes in dvt:chartXAxis and dvt:chartYAxis.

Events

Type	Phases	Description
org.apache.myfaces.trinidad.event.AttributeChangeEvent	Invoke Application, Apply Request Values	Event delivered to describe an attribute change. Attribute change events are not delivered for any programmatic change to a property. They are only delivered when a renderer changes a property without the application's specific request. An example of an attribute change event might include the width of a column that supported client-side resizing.

Supported Facets

Name	Description
dataStamp	the data item component or components to stamp for each row of the model. To stamp multiple data items, wrap them in a group tag.
overview	Specifies the rendering of the overview window. Only applicable for charts that have `zoomAndScroll` not set to `off`.
seriesStamp	the series style component to stamp for each row of the model. The properties of the stamp will be processed once for each unique series. To declaratively define multiple series, wrap them in a group tag.

Attributes

Name	Type	Supports EL?	Description
attributeChangeListener	javax.el.MethodExpression	Only EL	a method reference to an attribute change listener. Attribute change events are not delivered for any programmatic change to a property. They are only delivered when a renderer changes a property without the application's specific request. An example of an attribute change events might include the width of a column that supported client-side resizing.
binding	oracle.adf.view.faces.bi.component.chart.UIBubbleChart	Only EL	Specifies a binding reference to store a specific instance of UIBubbleChart from a backing bean. Set this attribute only to access code in a backing bean. For example, to reference a chart component in the sample managed bean, use the following code: `binding="#{sample.chart}"`
contentDelivery	String	Yes	Valid Values: whenAvailable, lazy, immediate Default Value: whenAvailable Specifies whether to fetch content with page load or after page load.
coordinateSystem	String	Yes	Valid Values: cartesian, polar Default Value: cartesian Specifies the coordinate system of the chart.
dataLabelPosition	String	Yes	Valid Values: auto, center, aboveMarker, belowMarker, beforeMarker, afterMarker Default Value: auto Specifies the position of the data labels. Valid values are: `auto` (default) - `center` for bubble charts, and `afterMarker` for line, area and scatter charts. `center` - centered on the data point. `aboveMarker` - above the data marker on line, area, scatter and bubble charts. `belowMarker` - below the data marker on line, area, scatter and bubble charts. `beforeMarker` - before the data marker on line and area charts (to the left in left-to-right locale, to the right in right-to-left locale). `afterMarker` - after the data marker on line and area charts (to the right in left-to-right locale, to the left in right-to-left locale). Bubble graphs calculate the optimal text size for the centered data labels. If centered and the label is too long to fit on the data point, the label is automatically truncated for bubble.
dataSelection	String	Yes	Valid Values: none, single, multiple Default Value: none Specifies the data selection mode for the chart.
emptyText	String	Yes	The text of the component when empty.
footnote	String	Yes	Specifies the footnote for the chart.
footnoteHalign	String	Yes	Valid Values: start, end, center Default Value: start Specifies the horizontal alignment of the chart footnote.
hideAndShowBehavior	String	Yes	Valid Values: none, withRescale, withoutRescale Default Value: none Specifies the hide/show behavior when clicking on the legend items.
hoverBehavior	String	Yes	Valid Values: none, dim Default Value: none Specifies the behavior when hovering over the chart data items.
id	String	No	Specifies the identifier for the component
inlineStyle	String	Yes	Style of the outer element (enclosing div) of the component
partialTriggers	String[]	Yes	The IDs of the components that should trigger a partial update. This component will listen on the trigger components. If one of the trigger components receives an event that will cause it to update in some way, this component will request to be updated too.
rendered	boolean	Yes	Default Value: true Specifies whether the component is rendered.
selectedRowKeys	org.apache.myfaces.trinidad.model.RowKeySet	Yes	The set of selected rows for this component.
selectionListener	javax.el.MethodExpression	Only EL	a method reference to a selection listener, the method is invoked when the selected nodes are changed.
seriesEffect	String	Yes	Valid Values: color, gradient, pattern Default Value: gradient Specifies the fill effect for the data items.
styleClass	String	Yes	Sets a CSS style class to use for this component.
subtitle	String	Yes	Specifies the subtitle for the chart.
title	String	Yes	Specifies the title for the chart.
titleHalign	String	Yes	Valid Values: start, end, center Default Value: start Specifies the horizontal alignment of the chart title.
value	String	Yes	The data model for the chart - can be an instance of javax.faces.CollectionModel
var	String	No	Name of the EL variable used to reference each element of this collection. Once this component has completed rendering, this variable is removed (or reverted back to its previous value).
varStatus	String	No	Name of the EL variable used to reference the varStatus information. Once this component has completed rendering, this variable is removed (or reverted back to its previous value). The VarStatus provides contextual information about the state of the component to EL expressions. For components that iterate, varStatus also provides loop counter information. Please see the this component's documentation for the specific properties on the varStatus. The common properties on varStatus include: `model` - returns the CollectionModel for this component `index` - returns the zero based row index
zoomAndScroll	String	Yes	Valid Values: off, delayedScrollOnly, liveScrollOnly, delayed, live Default Value: off Specifies the zoom and scroll behavior of the graph. "Live" behavior means that the chart will be updated continuously as it is being manipulated, while "delayed" means that the update will wait until the zoom/scroll action is done. The "delayed" behavior is recommended if the chart rendering is slow. Valid values are: `off` (default) - no zoom and scroll `delayedScrollOnly` - delayed scroll only, no zoom `liveScrollOnly` - live scroll only, no zoom `delayed` - delayed zoom and scroll `live` - live zoom and scroll
