The Media – Overview and Media – Analysis screens show attributes related to media. There is one set of attributes for StorageTek enterprise media and a slightly different set for LTO media.
The media attributes are organized into the following sections.

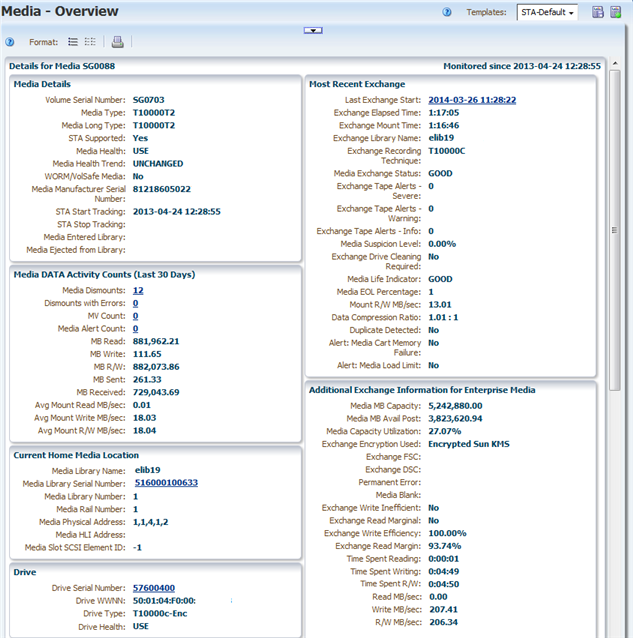

Detail for Enterprise Media (part 1)
Detail for Enterprise Media (part 2)
Values for these attributes are assigned when STA first starts tracking the media.
Details about a data or cleaning media.
Details about the most recent exchange for the media.
Total activity counts for the media over the last 30 days. This section appears only for data media.
Details about the media's current location, as of the last completed exchange.
Details about the drive involved in the latest exchange.
Appears for StorageTek enterprise media only.

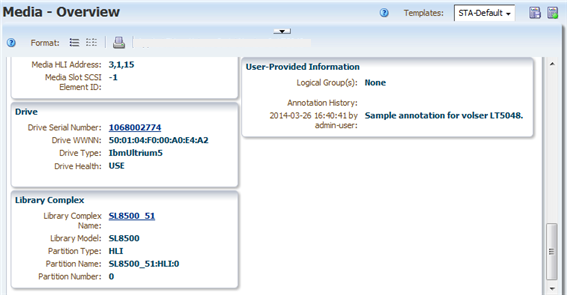

Appears for LTO media only.
Details about the library complex where the media is located.
Details about the most recent media validation for the media. Appears for StorageTek enterprise media only.
