View Plugin Information

Use this section to view status information for your plugin during installation.

  1. On the menu bar, select Tools > Plugin Management
  2. In the Plugin Management Tool pane, you can view plugin information in the following columns displayed in the Element Manager Plugins table on the EM tab:
    Name Description
    Name The name of the plugin.
    Status

    Plugin states:

    • INSTALLED—The plugin is successfully installed.
    • UPLOADED—The plugin is successfully uploaded.
    • UNINSTALLED—The plugin is successfully uninstalled.

    Failed plugin states:

    • FAILED UPLOAD—The plugin failed to upload from your local directory.
    • FAILED INSTALL—Check if there is an installed plugin with the same plugin Name, Vendor, Product, and version. Errors may also have occurred during the installation.
    • FAILED UNINSTALL—This message may display when uninstalling the previous version of a plugin and errors occur because the database service is temporarily down, the file system is busy, network system is down, and so on.
    • FAILED DELETE—The plugin failed to be removed.
    Server The IP address of the SDM server on which the plugin is installed.
    Version The version of the plugin.
    Vendor The company that developed the plugin.
    Product The product name of the plugin.
    Description The description of the plugin specified by the system administrator.
    Package Name The full SDM server directory on which the plugin package is installed.
    Date Modified The date on which the plugin was last modified. For example, this can be its install date, the date the plugin was uploaded, and so on.
    Object ID (Hidden) The internal SDM object ID item.
    pluginType (Hidden) The type of plugin that allows communication to network elements.

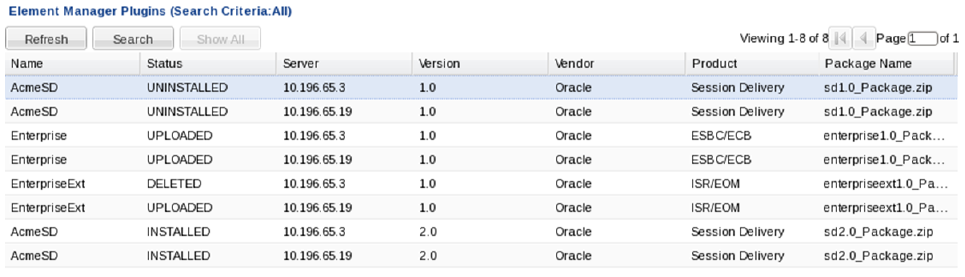

    The following Element Manager Plugins table shows an example of a cluster installation with two-nodes. Two versions of the session delivery (SD) plugin exist (v1.0. and v2.0), and only one version is installed at a time. This example also shows how the plugin status can become unsynchronized across the nodes of a cluster in the case of the EnterpriseExt plugin where the delete action is processed on 10.196.65.3 SDM server node, but not completed yet on the 10.196.65.19 SDM server node.
