Managing Routes in Route Sets

From the route sets that you have created in previous sections, you can manage individual routes.

  1. Expand the Route Manager slider, and click Route sets.
  2. In the Route sets tab, select the route and click Lock to lock the route set before you can manage routes within the route set.
    The lock state toggles from unlocked, indicated by , to locked, indicated by . The name of the user who locked the route set is listed.
  3. In the Route Sets tab, select the row of the locked route set for which you want to import routes and click Manage Routes.

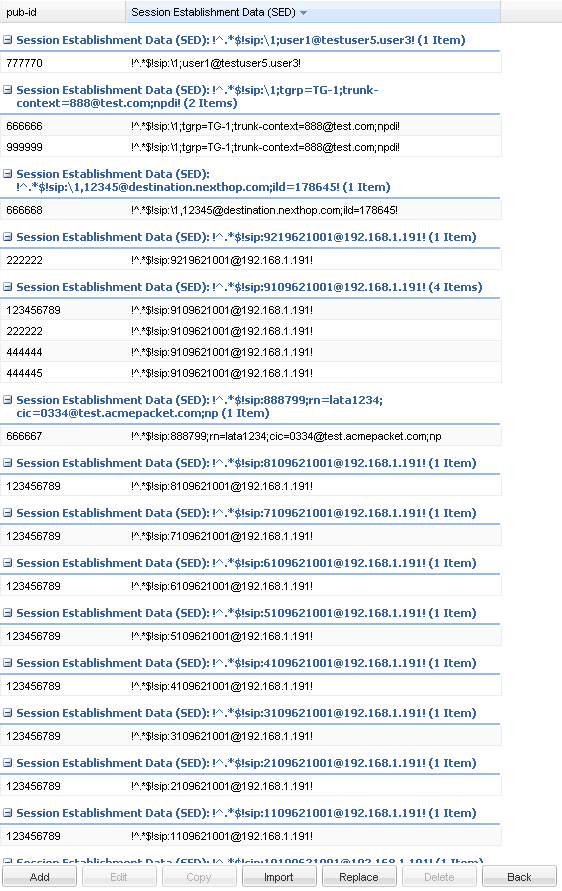

  4. In the Route Set Edit tab, the default view for the route set displays routes organized by pub-id. Click the Session Establishment Data (SED) table column header to view route sets organized by SED. For example:
