Creating Graphs by using the UI Based Configurator

To create the Graphs by using the UI Based Configurator, follow these steps:

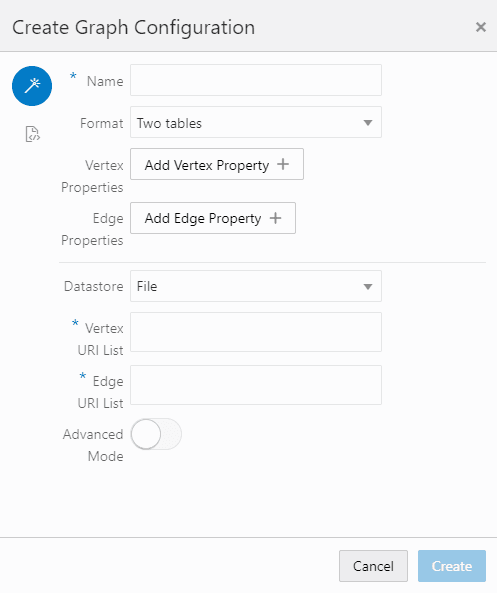

1.      In the Create new Graph Configuration dialog box, click  Wizard and specify the following information:

§       Name

Define a unique graph name for this graph.

§       Format

Data studio provides creating a graph from multiple formats, such as: Two tables, PGB, Edge list, Adjacency list, Flat file, GraphML, PG, and RDF.

§       Vertex Properties

Define the properties and types that your vertices must have in the graph. For example a Patient Vertex can have a Name (string) property.

§       Edge Properties

Define the properties and types that your edges must have in the graph. For example a Patient_Medication Edge can have a Dose (String) property.

§       Datastore

Choose the data source for the vertices and edges of the graph. Depending on the option you have to provide different information.

§       File

Provide the Vertex URL List and the Edge URL List.

§       Spark

Provide the Nodes and the Edges Table Name.

§       RDBMS

Provide the username, password, number of connections, Nodes and Edges Key Columns and the From and To Node ID Columns.

§       Advance Mode

Click Advance Mode to add more properties related to Vertex and Edge.

2.     Click Create. The graph is created.
