7        Executing Run through Process Modelling Framework in OFSDF

Process Modeling Framework (PMF) is a design and execution framework that enables the Process Pipeline developers to implement various Pipelines modeled by the Business Analysts. The Process Pipeline developers use the framework to orchestrate the Business Pipelines and the Run Pipelines within OFSAA and to design the artifacts that participate in the Pipelines to complete their implementation.

This chapter provides information about the usage of the Process Modeling Framework (PMF) feature in the Oracle Financial Services Data Foundation application.



NOTE

For detailed information about the Process Modeling Framework (PMF) feature in OFSAA, see the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.0.0.0.



Topics:

·        Overview

·        Process Modeling Framework Roles

·        Accessing the Process Modeling Framework in OFSDF

·        Using the Process Modeling Framework in OFSDF

·        Designing a Pipeline in OFSDF

·        Creating Filter using DIM_DATA_ORIGIN

Overview

After OFSDF is installed successfully, the following out-of-the-box standard Run pipelines (PMF processes) are available in the PMF:

·        Financial Services Data Foundation Sourced Run: This Run pipeline (Process) loads all non-Run enabled tables in OFSDF.

·        Financial Services Data Foundation Execution Run: This Run pipeline (Process) loads all Run enabled tables in OFSDF.

To load all non-Run enabled tables in OFSDF using the out-of-the-box Financial Services Data Foundation Sourced Run process, or to load all Run enabled tables in OFSDF using the out-of-the-box Financial Services Data Foundation Execution Run process, perform the steps in the sections Designing a Run Pipeline and Executing the Run Pipeline.

Process Modeling Framework Roles

To grant access to the PMF functionality, assign the following PMF Roles to the user.



Table 22: The list of PMF Roles and the corresponding users

Role Code

Role Name

WFMWRITE

Manage Workflow Monitor

WFADMINACC

Process Admin User

WFDELACC

Process Delegation User

WFACC

Workflow Access

WFADV

Workflow Advanced

WFAUTH

Workflow Authorize

WFDELGADM

Workflow Delegation Admin

WFMACC

Workflow Monitor Access

WFREAD

Workflow Read

WFWRITE

Workflow Write



Accessing the Process Modeling Framework

To access the PMF, follow these steps:

1.     Log in to the OFSDF application and select Administrator Title: Administrator icon - Description: Administrator icon.

2.     In the Information Domain drop-down list, select the required FSDF information domain. Then click the Process Modeling Framework tile.

Figure 17: Select the OFSDF Infodom and then select the Process Modelling Framework tile

Title: Description of selecting the OFSDF Infodom and then selecting the Process Modelling Framework tile follows - Description: This illustration shows one of the access points to the Process Modelling Framework (PMF) feature. Select the OFSDF Infodom in the Administration settings and then select the Process Modelling Framework (PMF) tile.

3.     A submenu is displayed with the following menu items:

§       To access the Process Modeller, select Process Modeller.

§       To monitor currently running processes, select Process Monitor.

Figure 18: Select the Process Modeller or Process Monitor option in PMF submenu

Title: Description of the Process Modelling Framework submenu follows - Description: This illustration shows the Process Modelling Framework submenu. This submenu lists the Process Modeller and the Process Monitor options. Select Process Modeller to open the Process Modeller page or select Process Monitor to open the Process Monitor page.

Using the Process Modeling Framework in OFSDF

The Process Modeling Framework consists of these features:

·        Process Modeller

·        Process Monitor

Process Modeller

The Process Modeller is used to create and modify types of Pipelines, test the Process flow, and execute the Run.

Figure 19: Process Modeller page

Title: Description of the Process Modeller page follows - Description: This illustration shows the Process Modeller page. The Process Modeller page displays the existing Business Process Pipelines and Run Pipelines with the details such as Process ID, Process Name, Process Description, Version, Instance, Application, and Last Modified. You can use this page to create a new Pipeline, or to edit or delete an existing Pipeline, launch, edit, or view any Process Flow, and execute the designed Pipeline. You can also launch the Process Monitor page from this page.

The Process Modeller page displays the existing Business Process Pipelines and Run Pipelines with the details such as Process ID, Process Name, Process Description, Version, Instance, Application, and Last Modified.

You can perform the following tasks from the Process Modeller window:

·        Click to create a new Pipeline.

·        Click the Process Name link to launch and edit the Process Flow.

·        Click to delete a Pipeline.

·        Click to view the following submenu:

§       Click View to see the process flow.

§       Click Copy to create a new Pipeline with the same process flow.

§       Click Process Flow Monitor to monitor the Pipeline.

§       Click Test Process Flow to test or check whether the Business Pipeline you designed works as expected.

§       Click Execute Run to execute a Run Pipeline.

§       Click Export Process to export a Process.



NOTE

The export process is performed using the Object Migration feature.



·        Use the Search grid to search for a specific Pipeline by providing a keyword from the Process ID, Process Name, or Process Description and then click Search Title: Search icon - Description: Search icon icon. Click Reset Title: Reset icon - Description: Reset icon to reset the Search fields.

·        You can sort the Pipelines based on Process ID, Process Name, or Application. Click the Sort by drop-down and select the required attribute to sort.

·        You can use the Filter Pipeline field to filter pipelines based on the pipeline type. For example, to view only the Run Pipelines, remove Process from the Filter Pipeline field.

·        Click Process Monitor Title: Process Monitor icon - Description: Process Monitor icon to launch the Process Monitor page.

Process Monitor

The Process Monitor is used to supervise the current stage of the Process for different instances. After integration with an application, the workflow can be invoked. After invoking, the workflow goes through all the stages defined. The Process Monitor displays all the stages finished, the current stage, and future stages. Your user group must be mapped to the function role WFMACC (Workflow Monitor Access) to access the Process Monitor window. For the list of the PMF Roles, see the Process Modeling Framework Roles section.

Figure 20: Process Monitor page

Title: Description of the Process Monitor page follows - Description: This illustration shows the Process Monitor page. This page displays all the workflows, which are invoked from the application with details such as Entity Name, Entity ID, Process Name, Process Description, Execution Start Time, Last Execution Time, Last Updated By, and Status. You can abort, resume, or re-run a Pipeline. You can also launch the Process Modeller page from this page.

This page displays all the workflows, which are invoked from the application with details such as Entity Name, Entity ID, Process Name, Process Description, Execution Start Time, Last Execution Time, Last Updated By, and Status.

You can perform the following tasks from the Process Monitor window:

·        Click Title: Menu icon - Description: Menu icon Menu to view the following submenu:

Figure 21: Process Monitor Menu

Title: Description of the Process Monitor submenu follows - Description: This illustration shows the Process Monitor submenu. You can abort, resume, or re-run a Pipeline.

§       Abort: To abort an ongoing Run Pipeline process.

§       Resume: To resume a Run Pipeline process.

§       Re-Run: To execute a Run Pipeline process again irrespective of the previous execution status.

·        Use the Search grid to search for a specific Pipeline by providing a keyword from the Process ID, Process Name, or Process Description and then click Search Title: Search icon - Description: Search icon. Click Reset Title: Reset icon - Description: Reset icon to reset the Search fields.

·        You can sort the Pipelines based on Process ID, Process Name, or Application. Click the Sort by drop-down and select the required attribute to sort.

·        You can use the Filter Pipeline field to filter pipelines based on the pipeline type. For example, to view only the Run Pipelines, remove Process from the Filter Pipeline field.

·        Click Process Modeller Title: Process Modeller icon - Description: Process Modeller icon to launch the Process Modeller page.

Designing a Pipeline in OFSDF

Business pipelines are defined in OFSAA to design and execute a sequence of tasks, which are either OFSAA tasks or external tasks, to derive a well-defined outcome. This flow is defined by using various OFSAA artifacts from the component toolbar.

Use the Process Modeler for the following tasks:

·        Designing a Run Pipeline

·        Executing the Run Pipeline

·        Verifying the Execution Logs



NOTE

For illustration, a Run Pipeline design for FSDF Sourced Run is depicted in this section.

For information about designing a Business Pipeline, see the Orchestration of a Business Pipeline section in the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.0.0.0.



Designing a Run Pipeline

Visual representation of the Run is enabled through PMF by the construction of a Run Pipeline. Various OFSAA widgets that enable the construction of Run Pipeline are available in the Component toolbar. For detailed information about the Components in PMF, see the Components for Designing Your Process Flow section in the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.0.0.0.

Creating a new Run Pipeline

To create a new Run Pipeline in the Process Modeller, follow this procedure:

1.     Navigate to the Process Modeller page. For details, see the Accessing the Process Modeling Framework in OFSDF section.

2.     In the Process Modeller page, click Add Title: Add icon - Description: Add icon.

3.     The Process Details page is displayed. Enter or select the required values for each field.

Figure 22: Process Details page

Title: Description of the Process Details page follows - Description: This illustration shows the Process Details page in the Process Monitor. The functionalities are described in detail in the tabular column that follows this illustration.



Table 23: Process Details page fields and descriptions

Field Name

Description and instruction

Process ID

Enter a unique and easily recognizable value in the Process ID field.

Process Name

Enter a unique and easily recognizable value in the Process Name field.

Process Description

Enter a unique and easily recognizable value in the Process Description field.

App Package ID

Select the required application package in which the process must be created from the drop-down list.

Type:

·        Business Process Pipeline

·        Run Pipeline

·        Stream Pipeline

Select the required process type from the Type drop-down list.

Registered Topics

Note:

This functionality is currently not applicable to OFSDF.

Spark DB

Enable the Spark DB option if you are executing the Run for Hive metadata.

Infodom

Select the information domain from the Infodom drop-down list in which the Run Pipeline must be created. The list displays all the infodoms mapped to the applications configured in your OFSAA instance.

Tag

Enter the text that can be used as search keywords or helpful in defining a relationship between two or more Pipelines.



4.     To save the details and launch the Process Flow designing window, click Save & Launch.

Designing a Process Flow for a Run Pipeline

After you click Save & Launch in the Process Details page, the Process Flow page is displayed. The Process Flow tab contains a floating toolbar and a drawing canvas. Use the drawing canvas to design the process flow with the Tools, Activities, and OFSAA Widgets components available in the floating toolbar.

Figure 23: Process Flow page

Title: Description of the Process Flow tab follows - Description: The Process Flow tab contains a floating toolbar and a drawing canvas. Use the drawing canvas to design the process flow with the Tools, Activities, and OFSAA Widgets components available in the floating toolbar

You can design the process flow diagrams for all three types of processes (Business Process Pipeline, Run Pipeline, and Stream Pipeline). This is an example of a process flow diagram for a Run Pipeline (for FSDF Sourced Run).

Figure 24: Process Flow diagram for a Run Pipeline

Title: Description of the Process Flow diagram for a Run Pipeline follows - Description: This illustration shows the Process Flow diagram for a Run Pipeline. In this illustration, a Run Pipeline for the FSDF Sourced Run is depicted. This Run Pipeline consists of a Start entity at the beginning and multiple Sub Pipelines that represent a different data load processes. The Sub Pipelines are connected to each other through the Transition Curves.

To design a process flow diagram for a Run Pipeline, see the Run Pipeline section, and to use various components available in the Process Flow tab, see the Components for Designing Your Process Flow section in the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.0.0.0.

Executing the Run Pipeline

After a process is designed and defined in the process flow diagram, you must assign values to the Run parameters, and execute the Run. You can execute a Run Pipeline from the UI or using a command-line utility called wfExecExternal.sh.

This section includes the following topics that describe the Run Pipeline execution from the UI:

·        Selecting the Run Parameters and Executing the Run

·        Verifying the Run Execution

·        Aborting, Resuming, or Rerunning the Run Pipeline Process

·        Verifying the Execution Logs



NOTE

For information about executing the Run Pipeline using a command-line utility, see the section Using Command Line Utility in the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.0.0.0.



Selecting the Run Parameters and Executing the Run

After designing and saving the process flow diagram, the Process is listed in the Process Modeller

page.

To select the Run parameters and execute the Run, follow this procedure:

1.     In the Process Modeller page, click Title: Menu icon - Description: Menu icon corresponding to the Run Pipeline that must be executed.

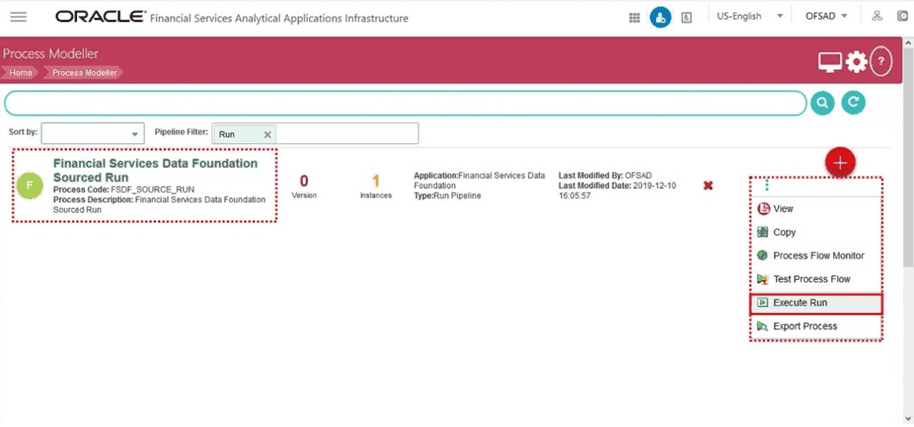

Figure 25: Select Execute Run in the Run Pipeline

Title: Description of selecting the Execute Run in the Run Pipeline illustration follows - Description: This illustration shows the selection of the Execute Run in the required Run Pipeline. In the Process Modeller page, for the required Run Pipeline, select the Menu icon. In the Menu list, select Execute Run.

2.     When you click Execute Run, the Select Run Params page is displayed.

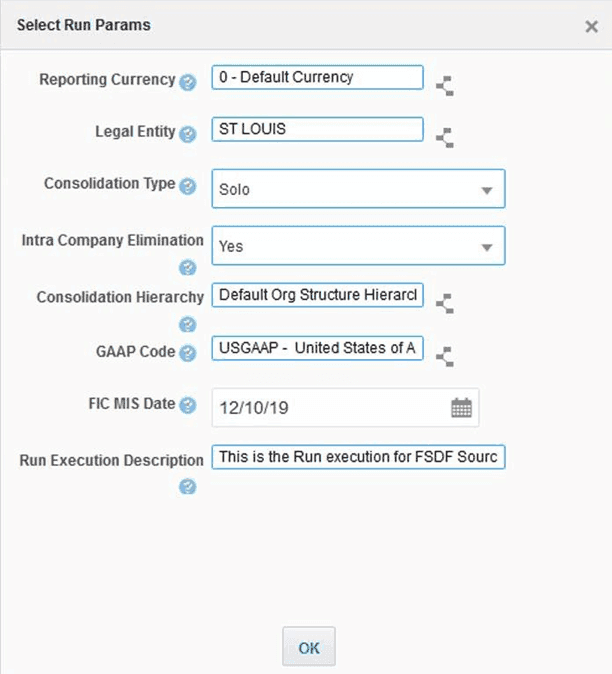

Figure 26: Select Run Params page

Title: Description of the Select Run Params page follows - Description: This illustration shows the Select Run Params page. Select the required Run parameters to execute the Run Pipeline. When you enter the required Run parameters and click OK, the Run execution is triggered. The functionalities are described in detail in the tabular column that follows this illustration.

Select or enter the required values for each field as follows.



Table 24: Select Run Params page fields and descriptions

Field Name

Description or Instruction

Reporting Currency

Enter the Reporting Currency Code used to calculate the amount during the data population in the target table.

Legal Entity

Select the Legal Entity Code to identify the legal entity used for the Run.

Consolidation Type

Select the Consolidation Type of legal entities on a solo or consolidation basis. In a Solo Run, only the selected legal entity is used. In a Consolidated Run, along with the selected legal entity, all its child legal entities are also used.

Intra Company Elimination

Select the Intra Company Elimination type to eliminate (YES) or skip the elimination (NO) of Intra Company Accounts during a Consolidated Run.

Consolidation Hierarchy

Enter the Legal Entity Hierarchy used for the consolidated run. This parameter is not required for the Solo Run.

GAAP Code

Enter the required accounting standard.

FIC MIS Date

Select the extraction date.

Run Execution Description

Enter a longer description of the Run.



3.     When you click OK, the Run execution begins. The Select Run Params page closes.



NOTE

The execution of the Run Pipeline is triggered using the selected FIC MIS DATE. The Run SKey is generated and inserted into the DIM_RUN table. For the Run SKey generated, the corresponding user-selected Run parameters are inserted into the RUN_EXE_PARAMETERS table.



Verifying the Run Execution

After selecting the Run parameters and beginning the Run execution, verify the progress of the Run. To verify the Run execution progress, follow this procedure:

1.     In the Process Modeller page, click Title: Menu icon - Description: Menu icon corresponding to the Run Pipeline that must be verified. Click Process Flow Monitor.

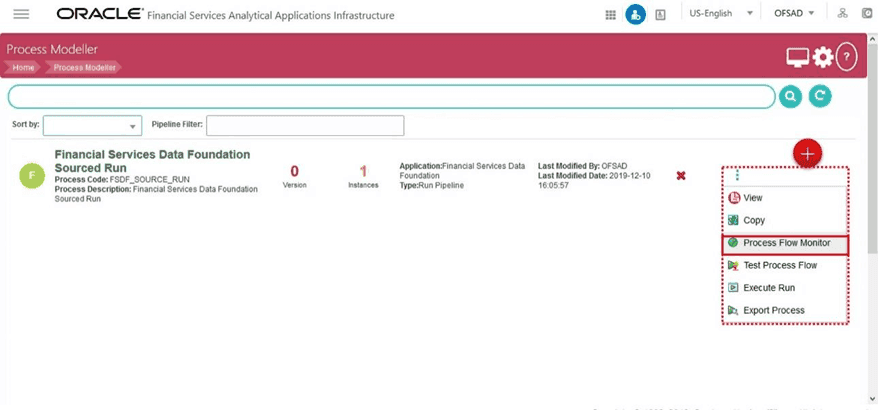

Figure 27: Select Process Flow Monitor in the Run Pipeline

Title: Description of selecting the Process Flow Monitor in the Run Pipeline illustration follows - Description: This illustration shows the selection of the Process Flow Monitor in the required Run Pipeline. In the Process Modeller page, for the required Run Pipeline, select the Menu icon. In the Menu list, select Process Flow Monitor.

2.     The Process Monitor page is displayed. You can see the generated process flow ID, the Run execution timestamp, and the status of the Run execution. To verify the Run execution status at the Pipeline level, click the corresponding process flow ID.

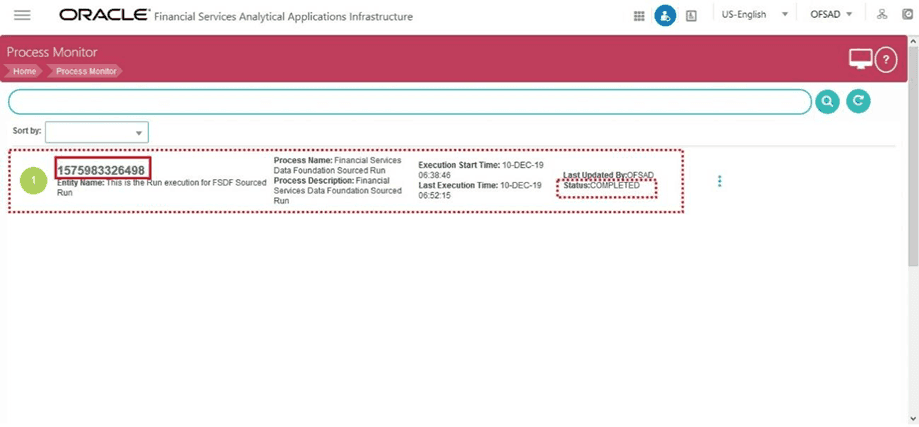

Figure 28: Process Monitor page with the Process Flow ID

Title: Description of the Process Monitor page with the Process Flow ID illustration follows - Description: This illustration shows the Process Monitor page with the Process Flow ID details. Select the Process Flow ID to see more details.

3.     The Process Flow diagram page is displayed. The Title: Run execution sucessful icon - Description: Run execution sucessful icon icon at each Sub Pipeline indicates that the Run execution is successful.

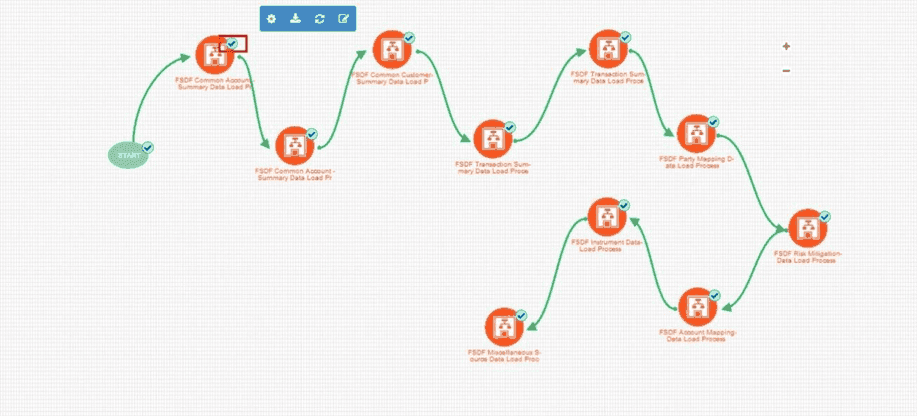

Figure 29: Process Flow diagram page with the indication of successful Run execution

Title: Description of the Process Flow diagram page with the indication of successful Run execution follows - Description: This illustration shows the Process Flow diagram page with the indication of successful Run execution. Each successfully executed Sub Pipeline is indicated by a tick mark.

Aborting, Resuming, or Rerunning the Run Pipeline Process

In the Process Monitor page, click Title: Menu icon - Description: Menu icon corresponding to the Run Pipeline process that must be aborted, resumed, or rerun. Then select Abort, Resume, or Re-Run.

Figure 30: Process Monitor Menu

Title: Description of the Process Monitor submenu follows - Description: This illustration shows the Process Monitor submenu. You can abort, resume, or re-run a Pipeline.

Aborting the Run Pipeline Process

The Abort feature helps you to abort a Run Pipeline, which is in the process of execution. To abort a Run Pipeline process, follow these steps:

1.     In the Process Monitor page, click Title: Menu icon - Description: Menu icon corresponding to the Run Pipeline process that must be aborted, and then click Abort.

2.     Enter comments, if any, to abort the Run Pipeline execution, and click OK.

Figure 31: Abort Process Execution page

Title: Description of the Abort Process Execution page follows - Description: This illustration shows the Abort Process Execution page. Enter the reason to abort the Run execution process in the Comments field and click OK.

Resuming the Run Pipeline Process

You can resume a Run Pipeline, which is not executed successfully, explicitly interrupted, canceled, or put on hold during the execution process. By resuming a Run Pipeline, you can continue its execution directly from the point of interruption or failure and complete executing the remaining tasks.

To resume a Run Pipeline process, follow these steps:

3.     In the Process Monitor page, click Title: Menu icon - Description: Menu icon corresponding to the Run Pipeline process that must be resumed, and then click Resume.

4.     Enter comments, if any, to restart the Run Pipeline execution and click OK.

Figure 32: ReStart Process Execution page

Title: Description of the ReStart Process Execution page follows - Description: This illustration shows the ReStart Process Execution page. Enter the reason to restart the Run execution process in the Comments field and click OK.

Re-running the Run Pipeline Process

You can re-run a Run Pipeline that was previously executed irrespective of the previous execution state.

To re-run a Run Pipeline process, follow these steps:

1.     In the Process Monitor page, click Title: Menu icon - Description: Menu icon corresponding to the Run Pipeline that must be re-run, and then click Re-Run.

2.     Enter comments, if any, to re-run the Run Pipeline execution and click OK.

Figure 33: Re Run Process Execution page

Title: Description of the Re Run Process Execution page follows - Description: This illustration shows the Re Run Process Execution page. Enter the reason to rerun the Run execution process in the Comments field and click OK.

Verifying the Execution Logs

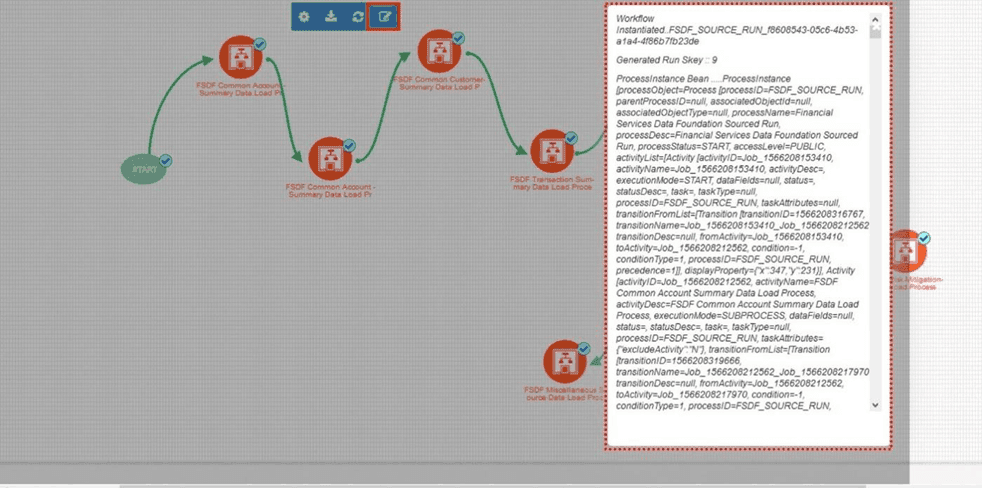

You can access the execution logs to verify the details of the Run. To verify the execution log, follow these steps:

1.     In the Process Monitor page, select the required process flow ID. The Process Flow diagram is displayed in a new page. Hover the cursor on the required Sub Pipeline. Four icons appear in the Sub Pipeline. ClickTitle: Logs icon - Description: Logs icon.

Figure 34: Sub Pipeline

Title: Description of the Sub Pipeline illustration follows - Description: This illustration shows the Sub Pipeline with icons for different actions such as add, view log, edit, and delete.

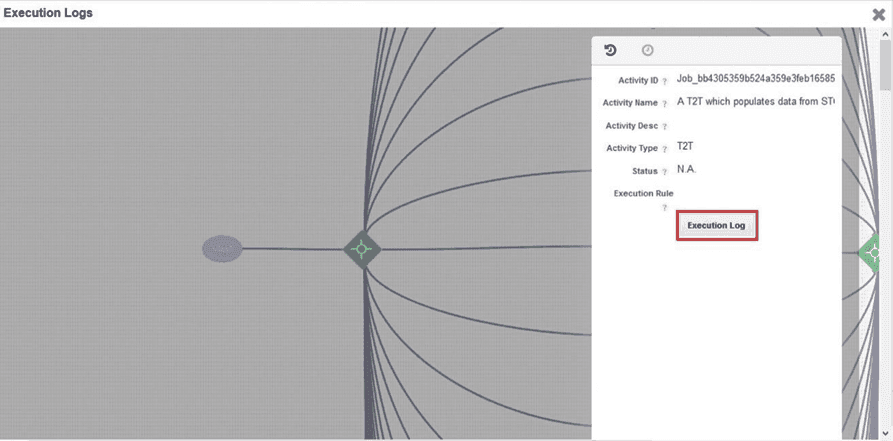

2.     The Execution Logs page is displayed. Click the required metadata to verify the execution log.

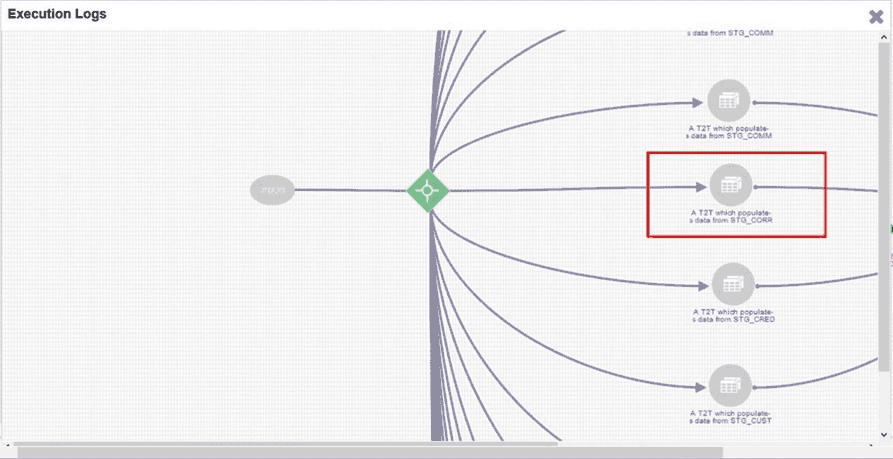

Figure 35: Execution Logs page of the Sub Pipeline

Title: Description of the Execution Logs page of the Sub Pipeline illustration follows - Description: This illustration shows the Execution Logs page of the Sub Pipeline. Each T2T metadata which is a part of the selected Sub Pipeline appears in this page. Select the required T2T metadata to verify its execution log.

3.     The Activity page is displayed. Click Execution Log.

Figure 36: Select Execution Log in the Activity page of the Sub Pipeline

Title: Description of selecting the Execution Log in the Activity page of the Sub Pipeline illustration follows - Description: This illustration shows the Activity page of the Sub Pipeline. Select the Execution Log.

4.     The Run execution log details are listed in a separate page.

Alternatively, to verify the execution logs, in the Process Flow diagram page, click Title: Note icon - Description: Note icon. The log details of the Run execution is displayed in a new page.

Figure 37: View the execution logs through the Process Flow diagram page

Title: Description of viewing the execution logs through the Process Flow diagram page follows - Description: This illustration shows an alternative method to view the execution log through the Process Flow diagram page for a Run Pipeline process execution.

For information about the complete functioning of the PMF, see the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.0.0.0.

Creating Filter using DIM_DATA_ORIGIN

Filters using DIM_DATA_ORIGIN are not present in T2Ts. Therefore, follow this execution procedure to introduce the filters using DIM_DATA_ORIGIN:

1.     Download the post-script file SOR_postscript_update.sql from the My Oracle Support and execute it in the CONFIG schema.



NOTE

Oracle recommends executing the post-script after resaving the Hierarchy if any.



2.     Follow these steps to create a Data Origin Filter:

Create a DIM_DATA_ORIGIN Hierarchy for the attribute key as N_DATA_SOURCE_CD, and add Level 0 as V_DATA_SOURCE_CODE.

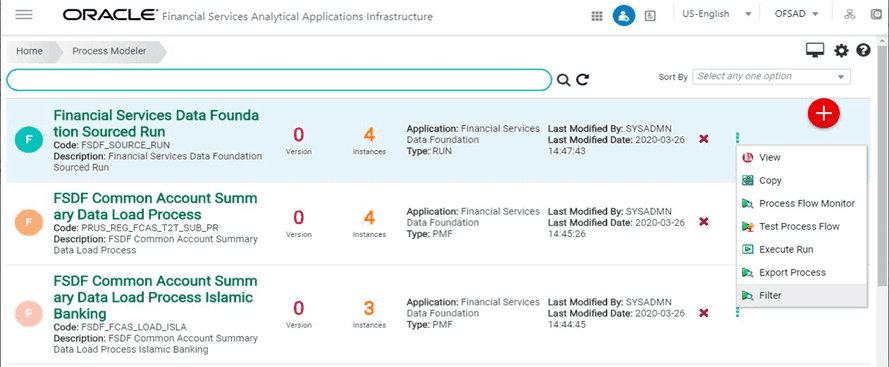

a.     In the Process Modeller page, in the Financial Services Data Foundation Sourced Run pipeline, click Title: Menu icon - Description: Menu icon to view the menu, and select Filter.

Figure 38: Select Filter in the menu of the Financial Services Data Foundation Sourced Run pipeline

Title: Description of selection of the Filter in the Financial Services Data Foundation Sourced Run pipeline menu illustration follows - Description: This illustration shows the Process Modeller page. Select the menu of the Financial Services Data Foundation Sourced Run pipeline. In the listed menu items, select Filter.

b.     The Filter details page is displayed. Select the Filter Type as Hierarchy and select the name of the Hierarchy created in the Filter List (in this illustration, it is FSDF DATA ORIGIN). Then click Add Filter.

Figure 39: Add the Filter in the Filter Details page

Title: Description of adding the Filter in the Filter Details page follows - Description: This illustration shows the Filter Details page. Select the Filter Type and Filter List, and then click Add Filter.

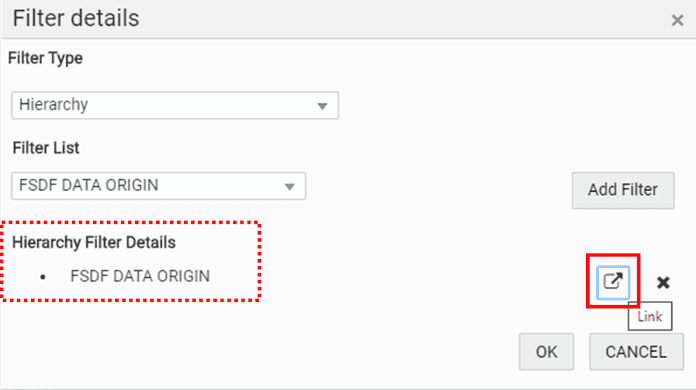

c.     This filter is listed in Hierarchy Filter Details. Click the pop-out page.

Figure 40: Filter Details page with the Hierarchy Filter Details

Title: Description of the Filter Details page with the Hierarchy Filter Details illustration follows - Description: This illustration shows the Filter Details page with the Hierarchy Filter Details. Click the pop-out icon.

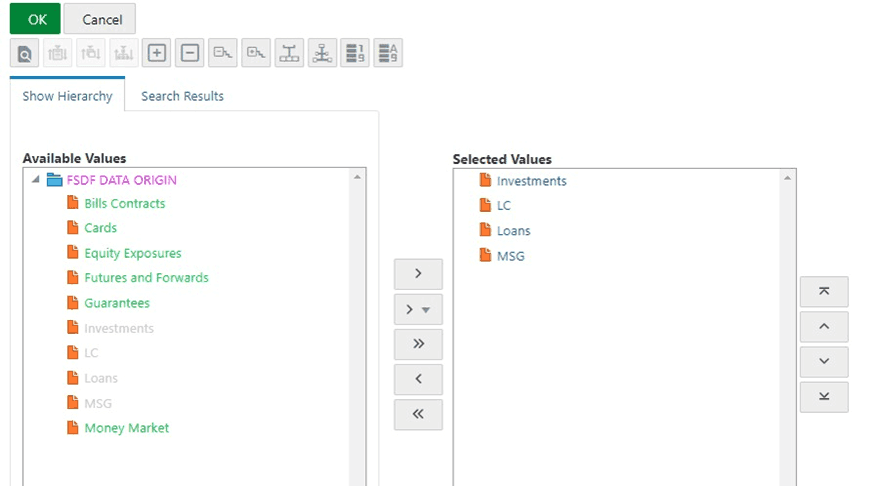

d.     The Hierarchy page is displayed with the LOVs (lost of values). In the FSDF DATA ORIGIN folder, select and move all the required LOVs from the Available Values section to the Selected Values section. Then click OK.

Figure 41: Select the LOVs in the Hierarchy page for the Hierarchy Filter

Title: Description of selection of the LOVs in the Hierarchy page for the Hierarchy Filter illustration follows - Description: This illustration shows the Hierarchy page for the selected Hierarchy Filter. Select the required LOVs in the Available Values section and move to the Selected Values section. Then click OK.

e.     On the Filter details page, click OK to save the Hierarchy Filter details.

Figure 42: Save the Hierarchy Filter details

Title: Description of saving the Hierarchy Filter details illustration follows - Description: This illustration shows saving the Hierarchy Filter details.

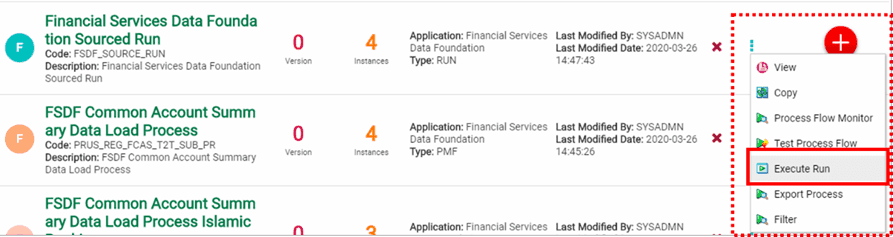

f.       In the Process Modeller page, click Execute Run to execute the PMF Sourced Run.

Figure 43: Execute the PMF Sourced Run

Title: Description of the execution of the PMF Sourced Run illustration follows - Description: This illustration shows the execution of the PMF Sourced Run. In the Process Modeller page, for the Financial Services Data Foundation Sourced Run for which the Hierarchy Filter is created, select the menu. In the listed menu, select the Execute Run to Run this Pipeline.
