Caching

OIPA caches static configuration data and other data that rarely change. There are eight cache regions in the system, each for a different module. Every cache region is configured separately, allowing each one to be configured differently. The cache regions are:

1. Region CORE for shared libraries.
2. Region SRE for shared rules engine components.
3. Region PAS for OIPA specific data.
4. Region LOCAL for providing caching services on the local node.
5. Region OSC_Templates for OSC specific caching.
6. Region CYCLE for batch processing.
7. Region ClassMembership for Data Intake processing.
8. Region WEB for User Session Data

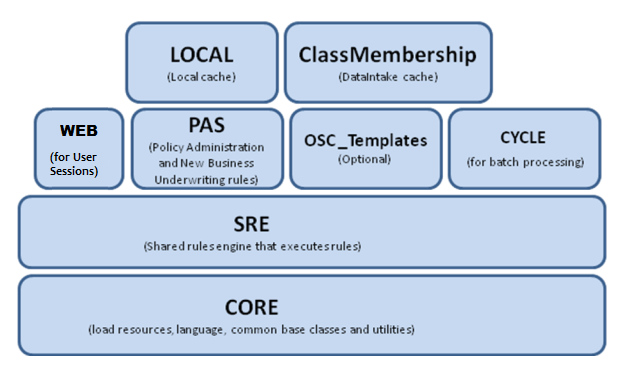

Cache Regions

Above are the Region OSC_Templates for OSC-specific caching. This only needs to be configured if OSC is being used—see the document "OSC Installation Instructions" for further details. The regions CORE, SRE, PAS, WEB, OSC_Templates, CYCLE and ClassMembership are distributed across all nodes in a cluster. The LOCAL region is not distributed. Each JVM has its own LOCAL cache.

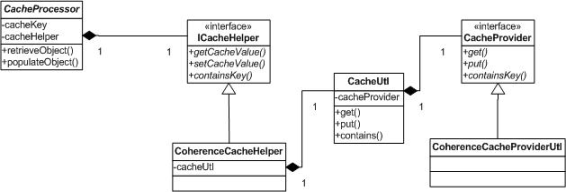

The following figure demonstrates how caching works in the system:

Cache Diagram

CacheProvider and ICacheHelper Interfaces

The CacheProvider interface defines all methods a caching provider must implement in order to manage cached objects in OIPA. Coherence is the caching provider employed by OIPA.

The ICacheHelper interface defines all methods required by caching access in the system, including getting and setting values for a caching key and method checking if the cache contains a given caching key.

Using CacheProvider and ICacheHelper interfaces allows OIPA to change the actual caching technology that is used for caching without impacting any client code.

CacheProcessor Abstract Class

The abstract class, CacheProcessor, retrieves the object for the caching key from the ICacheHelper in every CacheProcessor instance. An abstract method populateObject() is declared for every CacheProcessor subclass to specify what value object is to be put into the cache associated with the caching key. An updateCache() method is also available for use when a cached value object needs to be updated for the caching key, such as when the system date is advanced from cycle processing. In that case, a new value is updated in the cache.

The following is the pseudo-code of the retrieveObject() method provided by CacheProcessor.

IF cacheHelper contains cacheKey THEN

get cache value of cacheKey from cacheHelper

ELSE

invoke populateObject() to get cache value

put cache value into cacheHelper associated with cacheKey

Accessing Cache

Wherever a piece of data as cache candidate is requested, one anonymous inner class that extends CacheProcessor is defined and instantiated to determine how the value object is created when it is not yet in the cache. The value returned from CacheProcessor retrieveObject() method will be used by the client code. It could be found from the cache region for that module with the caching key, or newly created and put into the cache region associated with the caching key. This is transparent, so the difference is not visible to the client code.

The following is an example of the code used for caching companyDcl for every companyGuid.

String key = "CompanyDcl[CompanyGUID=\"" + companyGuid + "\"]";

CacheProcessor cacheProcessor = new CacheProcessor( cacheHelper, key ) {

@Override

protected Object populateObject() {

CompanyDcl companyDcl = findByPrimaryKey( CompanyDcl.class, companyGuid );

return companyDcl;

}

};

return cacheProcessor.retrieveObject();

CoherenceCacheProviderUtl and CacheUtl

The utility class CoherenceCacheProviderUtl implements the CacheProvider interface. It enforces the convention for interacting with Coherence. Every CoherenceCacheProviderUtl instance gets a cache region for a given name from the Coherence CacheFactory, which creates a clustered NamedCache instance when necessary. The CoherenceCacheProviderUtl object delegates all caching accesses to its Coherence NamedCache object.

Coherence CacheProviderUtl

Every instance of utility class CacheUtl wraps a CacheProvider object. CacheUtl also maintains a class-level map of mappings from cache region name and cache provider type to a CacheUtl instance. This guarantees that only one CacheProvider exists per cache region per cache provider type.

CacheHelper Classes

CoherenceCacheHelper classes are ICacheHelper implementations that use Coherence for caching. There are three CoherenceCacheHelper classes in packages. They are as follows:

1. com.adminserver.dal.helper
2. com.adminserver.sre.helper
3. com.adminserver.pas.dal.helper

Additionally, the LocalCacheHelper class also implements ICacheHelper and is used for local node caching. It is in the com.adminserver.sre.helper package.

Each class corresponds to cache region CORE, SRE, PAS and LOCAL, respectively.

CoherenceCacheHelper

These four CacheHelper classes are almost identical, except that each declares its own unique cache region name (i.e., "CORE", "SRE", "PAS","LOCAL") and each registers with Spring using a different bean name.

Each CacheHelper has its own unique CacheUtl instance, which is mapped from the cache region name for the Coherence cache provider type.

Coherence Cluster Configuration

Coherence cluster configuration defines all the nodes in the cluster, along with a pointer to the cache factory configuration file. This is necessary in order for Coherence to run. During the configuring of the application server, an argument must be passed to the JVM to define the location of this Coherence configuration file, coherence-config.xml. The argument to be passed is "tangosol.coherence.over", along with the absolute path to the configuration file.

Example: "-Dtangosol.coherence.override=/opt/oracle/oipa/properties/coherence-config.xml

When configuring the Coherence Cluster, it is essential that every JVM that will participate in the Cluster be identified in the well-known-address list of the coherence-config.xml file.

Example of Coherence Cluster Configuration

Coherence-config.xml can be found in the properties folder in the OIPA deployable from E-Delivery.

<coherence xml-override="/tangosol-coherence-override.xml">

<cluster-config>

<member-identity>

<cluster-name>OIPA_CLUSTER</cluster-name>

<member-name>OIPA_MEMBERNAME</member-name>

</member-identity>

<unicast-listener>

<address>localhost</address>

<port>42222</port>

<port-auto-adjust>false</port-auto-adjust>

<well-known-addresses>

<socket-address id="1">

<address>localhost</address>

<port>42222</port>

</socket-address>

</well-known-addresses>

</unicast-listener>

</cluster-config>

<logging-config>

<destination>stdout</destination>

<!--

-->

<severity-level>3</severity-level>

</logging-config>

</coherence>

The following are guidelines for configuring the Coherence cluster:

1. Every member of the OIPA installation must be accounted for in the well-known-addresses list.
2. Every member of the OIPA installation must share the exact same well-known-addresses list.
3. If using the member-identity section, make sure that the cluster-name is exactly the same across all members of the OIPA installation.
4. If using the member-identity section, make sure that the member-name for each member is unique across all members of the OIPA installation.
5. In the logging-config section, the destination is configurable. If not specified, Coherence will log Coherence messages to stderr.

Note: Refer to the "OIPA Cycle" document in the 11.0.0.0 release documentation library on OTN for an explanation of the coherence configuration of cycle.

Coherence Configuration for Caching

There are eight cache mappings defined in the Coherence caching scheme mapping configuration for the cache names "CORE", "SRE", "PAS", "CYCLE", "WEB", "LOCAL", "OSC_Templates", "ClassMembership". The mapped schemes can be different or the same. In the example below, each region name is identified, along with an associated scheme map. Refer to the Oracle Coherence documentation on the Oracle Technology Network (OTN) for a full list of available configuration parameters. The documentation can be found by typing "coherence" in the Search field on the OTN home page.

Example of Coherence Configuration for Caching:

This file can be found in the properties folder and is named coherence-cache-config.xml.

<!DOCTYPE cache-config SYSTEM "cache-config.dtd">

<cache-config xmlns:processing="class://com.oracle.coherence.patterns.processing.

config.xml.ProcessingPatternNamespaceHandler"

xmlns:element="class://com.oracle.coherence.common.namespace.preprocessing.

XmlPreprocessingNamespaceHandler"

element:introduce-cache-config="coherence-processingpattern-cache-config.xml">

<processing:cluster-config pof="true">

<processing:dispatchers>

<processing:task-dispatcher displayname="Task Dispatcher" priority="1" />

<processing:logging-dispatcher displayname="Logging Dispatcher" />

<processing:local-executor-dispatcher displayname="Local Dispatcher" />

</processing:dispatchers>

<!-- MAKE SURE THAT ALL IDs ARE UNIQUE ACROSS THE CLUSTER, OR THE MEMBER WILL NOT PARTICIPATE IN GRID PROCESSING -->

<processing:taskprocessors>

<processing:taskprocessordefinition id="PASTaskProcessor" displayname="PAS Task Processor" type="SINGLE" taskpattern="SingleTask">

<processing:default-taskprocessor id="PASTaskProcessor" threadpoolsize="15"></processing:default-taskprocessor>

</processing:taskprocessordefinition>

</processing:taskprocessors>

</processing:cluster-config>

<!-- ============================ -->

<!-- Map Caches to the NearScheme -->

<!-- ============================ -->

<caching-scheme-mapping>

<cache-mapping>

<cache-name>CORE</cache-name>

<scheme-name>SampleNearScheme</scheme-name>

</cache-mapping>

<cache-mapping>

<cache-name>PAS</cache-name>

<scheme-name>SampleNearScheme</scheme-name>

</cache-mapping>

<cache-mapping>

<cache-name>SRE</cache-name>

<scheme-name>SampleNearScheme</scheme-name>

</cache-mapping>

<cache-mapping>

<cache-name>CYCLE</cache-name>

<scheme-name>SampleNearScheme</scheme-name>

</cache-mapping>

<cache-mapping>

<cache-name>ClassMembership</cache-name>

<scheme-name>SampleMemoryScheme</scheme-name>

</cache-mapping>

<cache-mapping>

<cache-name>LOCAL</cache-name>

<scheme-name>SampleMemoryScheme</scheme-name>

</cache-mapping>

<cache-mapping>

<cache-name>WEB</cache-name>

<scheme-name>SampleNearSchemeWeb</scheme-name>

</cache-mapping>

</caching-scheme-mapping>

<caching-schemes>

<!-- ===================== -->

<!-- Local In-memory Cache -->

<!-- ===================== -->

<local-scheme>

<scheme-name>SampleMemoryScheme</scheme-name>

</local-scheme>

<!-- ================================== -->

<!-- Size limited Local In-memory Cache -->

<!-- ================================== -->

<local-scheme>

<scheme-name>SampleMemoryLimitedScheme</scheme-name>

<low-units>10</low-units>

<high-units>32000</high-units>

</local-scheme>

<!-- =========================== -->

<!-- Distributed In-memory Cache -->

<!-- =========================== -->

<distributed-scheme>

<scheme-name>SamplePartitionedScheme</scheme-name>

<backing-map-scheme>

<local-scheme>

<scheme-ref>SampleMemoryScheme</scheme-ref>

</local-scheme>

</backing-map-scheme>

</distributed-scheme>

<!-- ======================== -->

<!-- Cache Cluster Definition -->

<!-- ======================== -->

<near-scheme>

<scheme-name>SampleNearScheme</scheme-name>

<front-scheme>

<local-scheme>

<scheme-ref>SampleMemoryLimitedScheme</scheme-ref>

</local-scheme>

</front-scheme>

<back-scheme>

<distributed-scheme>

<scheme-ref>SamplePartitionedScheme</scheme-ref>

</distributed-scheme>

</back-scheme>

</near-scheme>

<near-scheme>

<scheme-name>SampleNearSchemeWeb</scheme-name>

	<front-scheme>

		<local-scheme>

			<scheme-ref>SampleMemoryLimitedScheme</scheme-ref>

		</local-scheme>

	</front-scheme>

	<back-scheme>

		<distributed-scheme>

			<scheme-ref>SamplePartitionedScheme</scheme-ref>

		</distributed-scheme>

	</back-scheme>

	<listener>

		<class-scheme>

			<class-name>com.adminserver.web.session.SessionCacheListener</class-name>

		</class-scheme>

	</listener>

	<invalidation-strategy>Present</invalidation-strategy>

</near-scheme>

</caching-schemes>

</cache-config>
