5100 - Traffic Overload

Alarm Group:

IPFE

Description:

Total IPFE signaling traffic rate is approaching or exceeding its engineered capacity. IPFE defined a engineering capacity to monitoring the ingress signaling traffic rate.This alarm is raised when the total IPFE signaling traffic rate is approaching or exceeding its engineered capacity. This alarm is different to the alarm 5013, No packages drop at this point.

The severity thresholds are:

• Minor: set at 245 MB/second, clear at 220 MB/second
• Major: set at 327 MB/second, clear at 302 MB/second
• Critical: set at 409 MB/second, clear at 384 MB/second

Severity:

Minor, Major, Critical

Instance:

N/A

Note:

If the signaling traffic declines below the clear threshold, the alarm clears.

HA Score:

Normal

Auto Clear Seconds:

N/A

OID:

ipfeIpfeTrafficOverloadNotify

Cause:

IPFE defined a engineering capacity to monitoring the ingress signaling traffic rate. This alarm is raised when the total IPFE signaling traffic rate is approaching or exceeding its engineered capacity. This alarm is different to the alarm 5013, No packages drop at this point.

The severity thresholds are:

• Minor: set at 245 MB/second, clear at 220 MB/second
• Major: set at 327 MB/second, clear at 302 MB/second
• Critical: set at 409 MB/second, clear at 384 MB/second

Diagnostic Information:

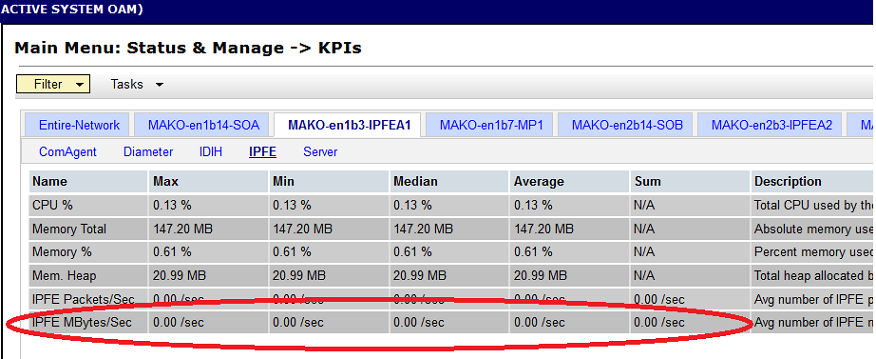

Refer to the KPI to check the IPFE data rate:

Recovery:

1. The product is in excess of its design parameters, and may exhibit traffic loss if an additional failure occurs. Consider expanding system to accommodate additional capacity.
2. It is recommended to contact My Oracle Support for assistance.
