Simphony and Reporting and Analytics Installation Elements
Here are the required installation elements for implementing Simphony release 18.2 along with Reporting and Analytics release 9.1.

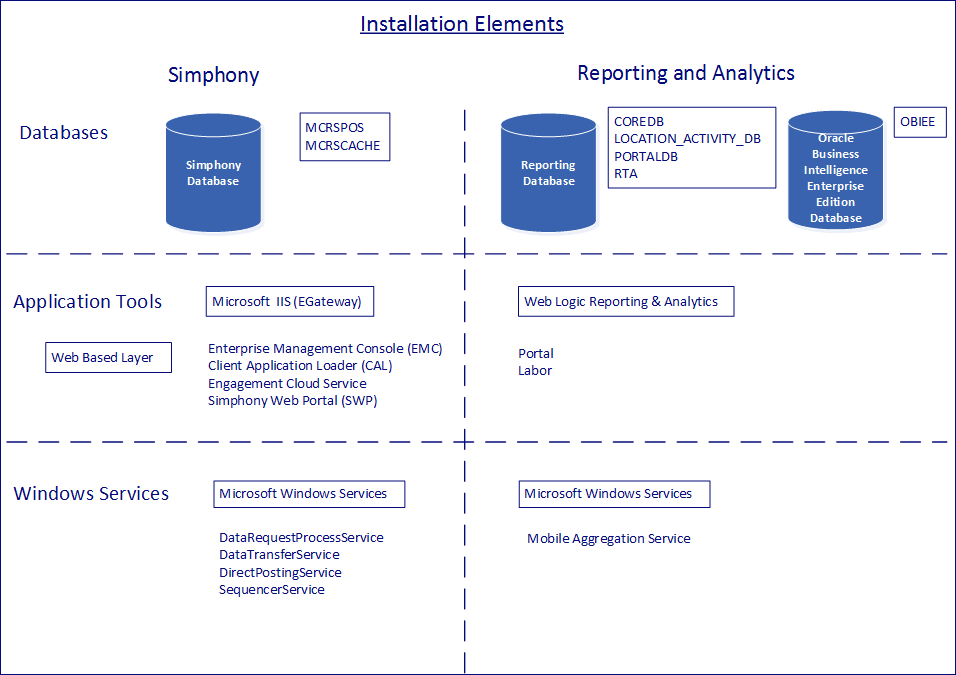

Figure 1-1 Simphony and Reporting and Analytics Installation Elements
Single Server All-in-One Installation
Here are the minimal installation requirements for a single server implementation of Simphony release 18.2 and Reporting and Analytics release 9.1.

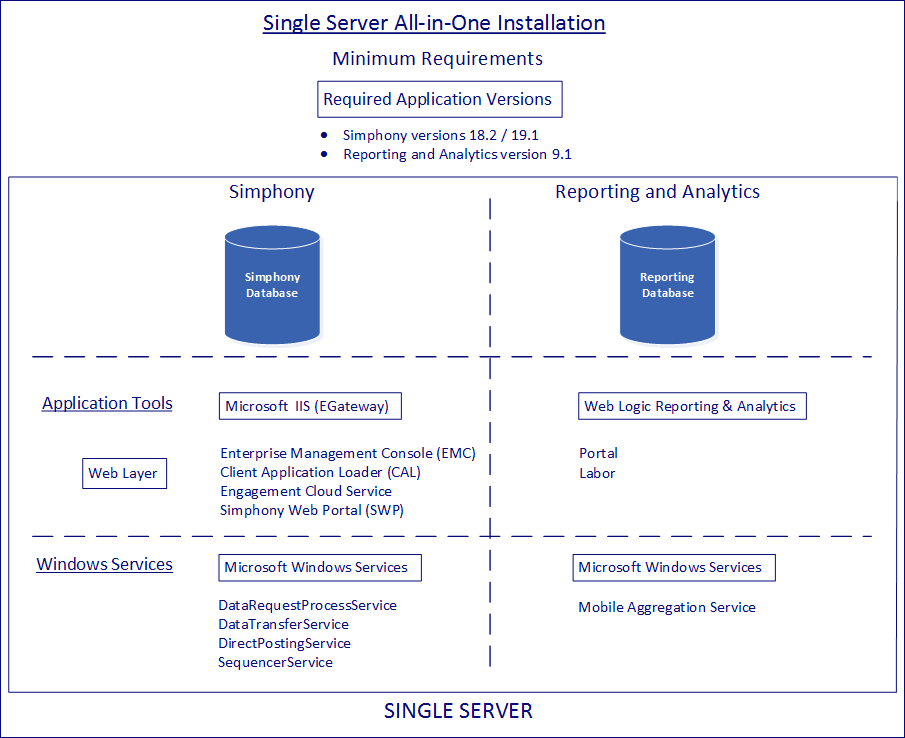

Figure 1-2 Single Server All-in-One Deployment
Multiple Server Installation
Here are the minimal installation requirements for a multiple server implementation of Simphony release 18.2 and Reporting and Analytics release 9.1.

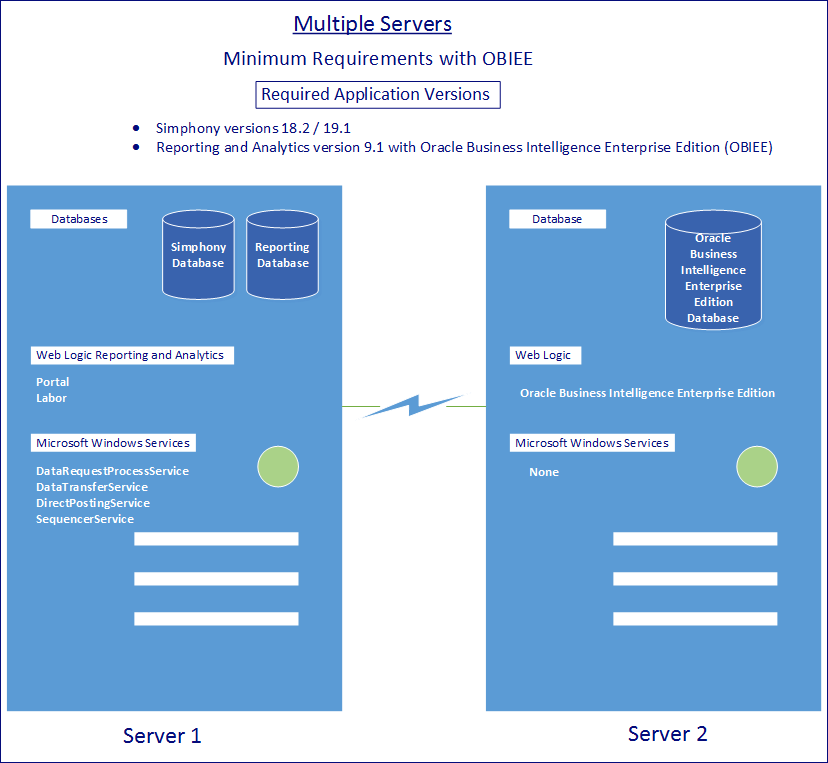

Figure 1-3 Multiple Server Deployment
Multiple Server Load Balanced System
Here are the minimal installation requirements for a multiple server load balanced system implementation of Simphony release 18.2 and Reporting and Analytics release 9.1.

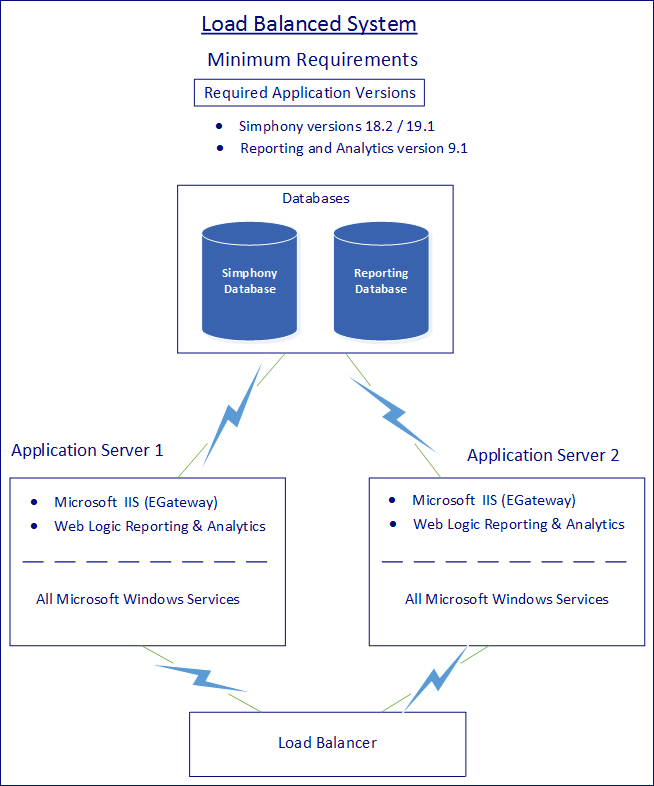

Figure 1-4 Multiple Server Load Balanced Deployment
