MICROS Simphony is used for both Simphony Standard and Premium Cloud Service environments.
Server Name: Leave this field blank.
Server IP/URL: Leave this field blank.
CAL Enabled: Select this option if it is not automatically set by default.
Secure Connection: Select this option to use the Translation Layer Security (TLS) 1.2 Encryption protocol. (If you are installing CAL version 139 or later, this option is set by default.)
Server: Enter the CAPS server name.
Port: Enter 443.
Update: Click the Update button to automatically fill the Server Name and Server IP/URL fields after the application server name is resolved and recognized. You are now required to use an HTTPS secure connection in your Server URL.
If the property does not appear in the list, enter the property name in the Property Name field, and then press Search.
You do not see a property list if only one property is configured or if there are multiple properties, but only one property is using workstations.

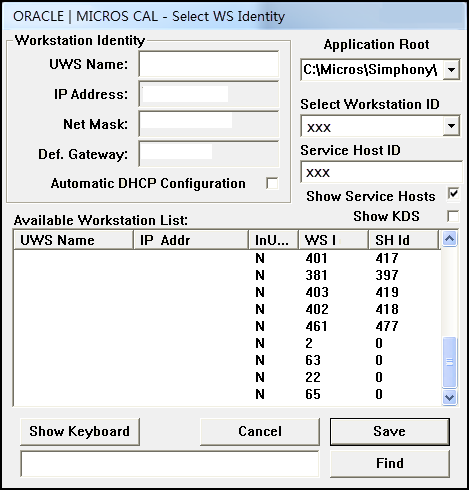

Figure 7-21 Select Workstation Dialog
[Drive letter]:\\MICROS\Simphony\webserver
, and then click AuthenticationServer.Client Service ID: Enter the Service ID for Check and Posting. You can find the Service ID in the Workstations tab of the Property Parameters module.
Installer Username: Enter the Install User Security Username configured in the Security tab of the Property Parameters module. Contact your system administrator for assistance.
Installer Password: Enter the Install User Security Password configured in the Security tab of the Property Parameters module. Contact your system administrator for assistance.

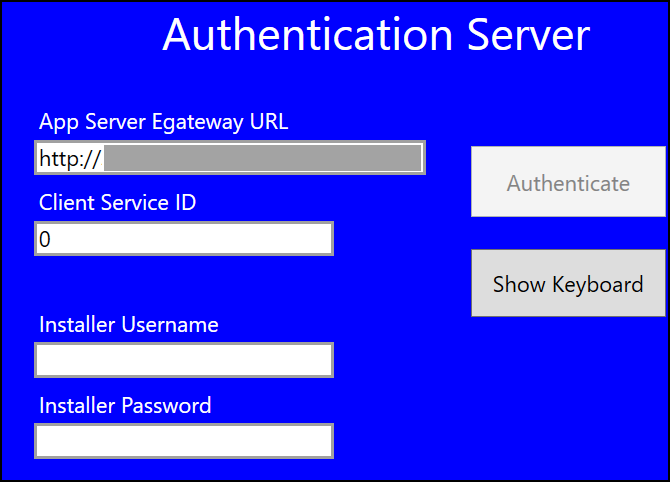

Figure 7-22 Authentication Server Application for Simphony 2.9
Service Host ID: The service host ID. This value is automatically populated.
EMC Username: Enter your EMC user name.
EMC Password: Enter your EMC password.

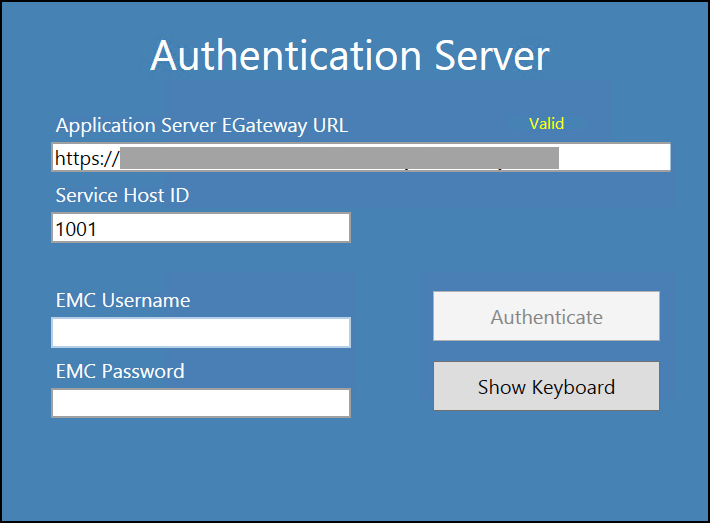

Figure 7-23 Authentication Server Application for Simphony 2.9.2
