OBDX SERVICING APPLICATION
This document includes following topics:
- Pre requisite
- Create Project
- Adding UI to workspace
- Open project in Xcode
- Generating Certificates for Development, Production and Push Notifications
- Removal of iMessage Extension and WatchKit Extension
1.1 Pre requisite
- Download and Install node js as it is required to run npm and cordova commands.
- XCode to be download from Mac App Store.
1.2 Create Project
- Extract iOS workspace from installer and place in a folder.
- The workspace by default contains framework for running on devices. Hence to run the application on simulator, delete and copy the 4 frameworks (OBDXExtensions.framework, OBDXFramework.framework, OBDXWatchFramework.framework and Cordova.framework) from installer/simulator to zigbank\platforms\ios directory.
1.3 Adding UI to workspace
Use any 1 option below
- Building un built UI (required in case of customizations)
Extract unbuilt UI
User Interface and traverse to OBDX_Installer/installables/ui/channel/_build folder and perform below steps
npm install -g grunt-cli npm install
set OBDX_IS_GRUNT=true node render-requirejs/render-requirejs.js mobile npm install cwebp-bin
Copy "vendor" directory from _build/node_modules/cwebp-bin/ to _build/node_modules/grunt-cwebp/node_modules/cwebp-bin
grunt --max_old_space_size=5120 grunt mobilebuild --platform=ios && node
component.js && node integrity-generator.js && node listComponents.js
Linux -
sudo npm install -g grunt-cli sudo npm install export OBDX_IS_GRUNT=true node render-requirejs/render-requirejs.js mobile sudo npm install cwebp-bin
Copy "vendor" directory from _build/node_modules/cwebp-bin/ to _build/node_modules/grunt-cwebp/node_modules/cwebp-bin
node --max_old_space_size=5120 $(which grunt) mobilebuild --platform=ios &&
node component.js && node integrity-generator.js && node listComponents.js
- Using built UI (out of box shipped with installer)
- Unzip dist.tar.gz for android from installer and copy folders(components,extensions,framework,images,json,lzn,pages,partials,resource, index.html, build.fingerprint) to workspace (platforms/ios/www/)
Delete originations folder inside images (images/originations) and ensure webhelp folder is not copied.
1.4 Open project in Xcode
Open Xcode by clicking ZigBank.xcodeproj at zigbank/platforms/ios/
- Adding URLs to app.plist (ZigBank/Resources)
- FOR NONOAM (DB Authenticator setup)
| SERVER_TYPE | NONOAM |
| KEY_SERVER_URL | http://mum00chx.in.oracle.com:3333 |
| WEB_URL | http://mum00chx.in.oracle.com:3333 |
| PinnedCertificateName | PinnedCertificateName Name of SSL certificate without extension of OBDX App Server |
- OAM Setup (Refer to installer pre requisite documents for OAuth configurations)
| SERVER_TYPE | OAM |
| KEY_SERVER_URL | Eg. http://mum00chx.in.oracle.com:8003 (This URL must be of OHS without webgate) |
| WEB_URL | Eg.http://mum00chx.in.oracle.com:3333 |
| KEY_OAUTH_PROVIDER_URL | http://mum00aon.in.oracle.com:14100/oauth2/rest/token |
| APP_CLIENT_ID | <Base64 of clientid:secret> of Mobile App client |
| APP_DOMAIN | OBDXMobileAppDomain |
| WATCH_CLIENT_ID | <Base64 of clientid:secret> of wearables |
| WATCH_DOMAIN | OBDXWearDomain |
| SNAPSHOT_CLIENT_ID | <Base64 of clientid:secret> of snapshot |
| SNAPSHOT_DOMAIN | OBDXSnapshotDomain |
| LOGIN_SCOPE | OBDXMobileAppResServer.OBDXLoginScope |
| PinnedCertificateOAMName | Name of SSL certificate without extension of OAM Server |
| PinnedCertificateName | Name of SSL certificate without extension of OBDX App Server |
- IDCS Setup
| SERVER_TYPE | IDCS |
| KEY_SERVER_URL | Eg. http://mum00chx.in.oracle.com:8003 (This URL must be of OHS without webgate) |
| WEB_URL | Eg.http://mum00chx.in.oracle.com:3333 |
| KEY_OAUTH_PROVIDER_URL | http://obdx-tenant01.identity.c9dev0.oc9qadev.com/oauth2/v1/token |
| APP_CLIENT_ID | <Base64 of clientid:secret> of Mobile App client |
| WATCH_CLIENT_ID | <Base64 of clientid:secret> of wearables |
| SNAPSHOT_CLIENT_ID | <Base64 of clientid:secret> of snapshot |
| LOGIN_SCOPE | obdxLoginScope |
| OFFLINE_SCOPE | urn:opc:idm:__myscopes__ offline_access |
- Adding chatbot support to mobile application (Optional)
| CHATBOT_ID | The tenant ID |
| CHATBOT_URL | The web socket URL for the ChatApp application in IBCS |
- Common Configurations
| PaymentPurpose | Payment purpose code for Siri Payments |
| CurrencyCode | Currency A generally accepted form of money, including coins and paper notes, which is issued by a government and circulated with in an economy. code for Siri Payments |
| PaymentPurposeRequiredFlag | Payment purpose required for Siri payments |
| SUITENAME | Group identifier for sharing keystore information. Same as given in app groups |
| BankName | Name of bank to be shown on touch id / face id popup |
| CertificateType | Extension of SSL Pinned certificates (Eg cer/der) |
1.5 Generating Certificates for Development, Production and Push Notifications

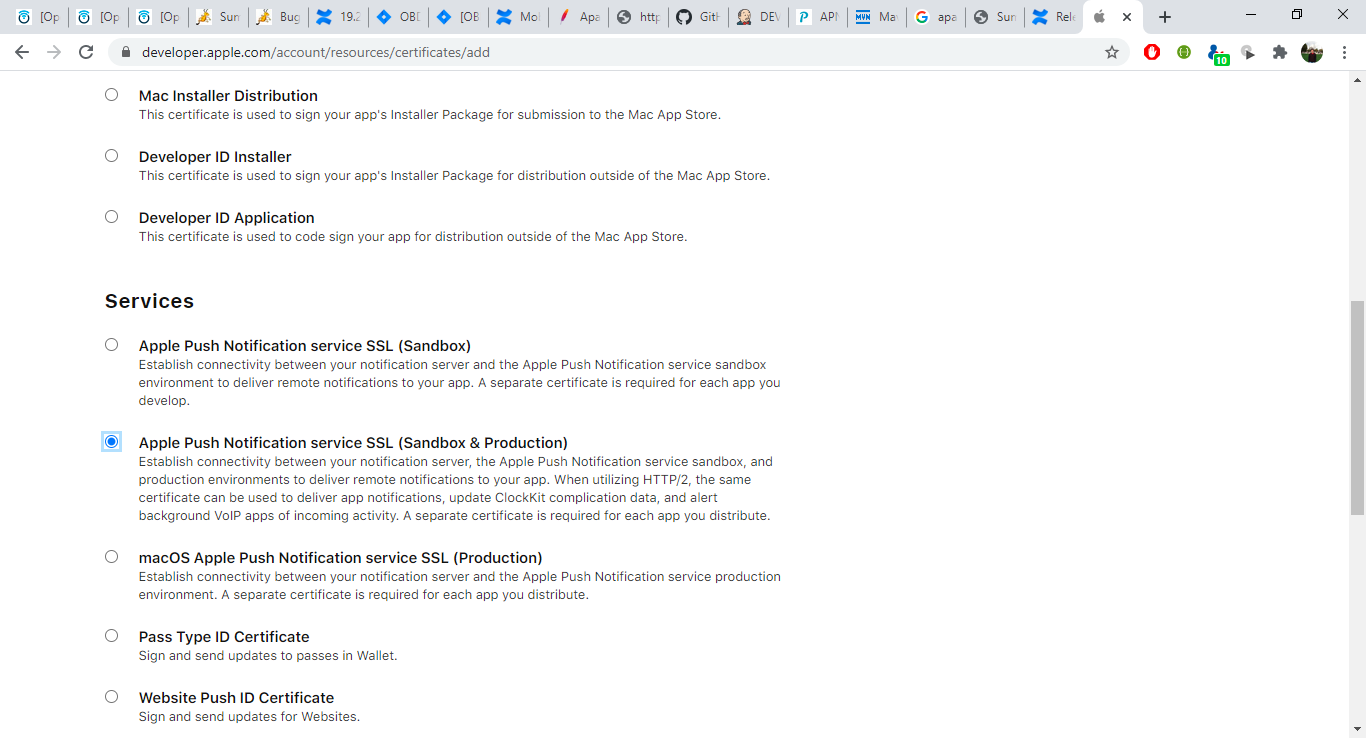

Create all certificates (by uploading CSR for keychain utility), provisioning profiles and push certificates as shown below by login in developer console. For development add device UUIDs and add same to provisioning profiles. Add capabilities as shown below and ensure the bundle identifier matches the one of the application in Xcode
Ensure AppGroups capability is added to all profiles and for mobile profile SiriKit, App Groups, Push Notifications must by added.
Note the certificate/bundle name
Note the Team ID from top right corner

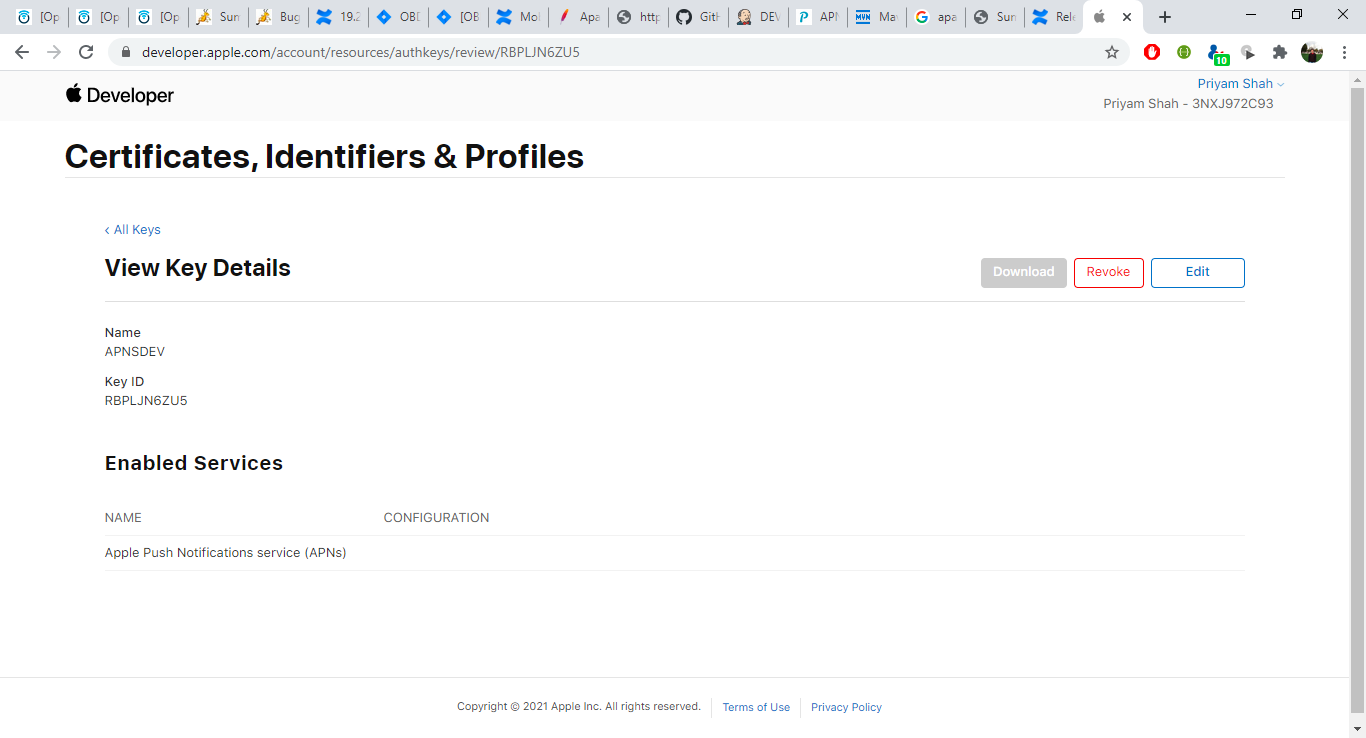

Navigate to the “Keys” section and create APNS key
Note APNS key and download the .p8 file. Copy the .p8 to config/resources\mobile
Update the password as shown below –
| Sr. No. | Table | PROP_ID | CATEGORY_ID | PROP_VALUE | Purpose |
| 1 | DIGX_FW_CONFIG_ALL_B | ios_cert_path | DispatchDetails | resources/mobile/AuthKey_RBPLJN6ZU5.p8 | Update the certificate path/name if required. Should be relative to config directory |
| 2 | DIGX_FW_CONFIG_ALL_B | APNS | DispatchDetails | <Password> Eg - RBPLJN6ZU5 | Provides id of .p8 certificate |
| 3 | DIGX_FW_CONFIG_ALL_B | APNSKeyStore | DispatchDetails | DATABASE or CONNECTOR | Specifies whether to pick certificate password from database or from connector. Default DB (No change) |
| 4 | DIGX_FW_CONFIG_ALL_B | Proxy | DispatchDetails | <protocol,proxy_address> | Provides proxy address, if any, to be provided while connecting to APNS server. Delete row if proxy not required. Example: HTTP,148.50.60.8:80 |
| 5 | DIGX_FW_CONFIG_ALL_B | CERT_TYPE | DispatchDetails | For dev push certs add row with value ‘dev’ | For prod push certificates this row is not required |
| 6 | DIGX_FW_CONFIG_ALL_B | APNS_BUNDLE | DispatchDetails | Eg. com.ofss.digx.obdx.zigbank | Bundle The practice of grouping related products features and/or services such as home loan, transaction account, and insurance, together to give customers better prices, incentives, or more favorable terms, is known as bundling. Name |
| 7 | DIGX_FW_CONFIG_ALL_B | APNS_TEAMID | DispatchDetails | Eg. 3NX1974C93 | Team ID of Apple developer account |
If CONNECTOR is selected in Step 2 update certificate id as below
Adding Bundle Identifiers
Bundle identifiers needs to be added in the Info.plist of each the frameworks along with the Signing Capabilities tab in Xcode. For example, the bundle identifier used is abc.def.ghi.jkl. The steps to be followed are,
- Right click on OBDXFramework.framework(in Xcode’s Project Navigator) -> Show in Finder
- When the finder directory opens the right click OBDXFramework.framework -> Show package contents.
- Open Info.plist and set Bundle identifier as abc.def.ghi.jkl.OBDXFramework
- Repeat the steps for the other three frameworks as well, with the following values:
- o Bundle identifier for Cordova.framework : abc.def.ghi.jkl.Cordova
- o Bundle identifier for OBDXExtensions.framework : abc.def.ghi.jkl.OBDXExtensions
- o Bundle identifier for OBDXWatchFramework.framework : abc.def.ghi.jkl. OBDXWatchFramework
1.6 Removal of iMessage Extension and WatchKit Extension
a. Remove the iMessage extension from "Target Dependencies"
- To go to Target Dependencies: in the project navigator, click the project file. Then click the target of the iPhone app. Go to the Build Phases tab.
- Go to “Embed App Extensions”. Remove the iMessage extension entry from the list Embed App Extensions
b. For removal of WatchKit Extension, click on the corresponding x(cross button) of “Embed Watch Content”
c. Remove the targets ObdxImessageExtension, OBDXWatchApp and OBDXWatchApp Extension under Targets section of Project.
d. Select ObdxImessageExtension, OBDXWatchApp and OBDXWatchApp Extension folders and OBDXWatchFramework.framework under Project Navigator; Right Click then select Delete; select Remove References when prompted. The said folders and framework should be deleted from the Finder as well.
e. Select “Manage Schemes”
f. Remove the schemes for Watch and iMessage
g.OBDXWatchFramework.framework should be removed from the simulator folder shipped.
