2.16.2.2 GUI Configurations for CAT2 SS7 Security Support

The CAT2 SS7 Security functionality can be configured from Active System OAM (SOAM).

To convert IR21 File

On the Active System OAM (SOAM), select VSTP > IR21 Utility > Conversion.

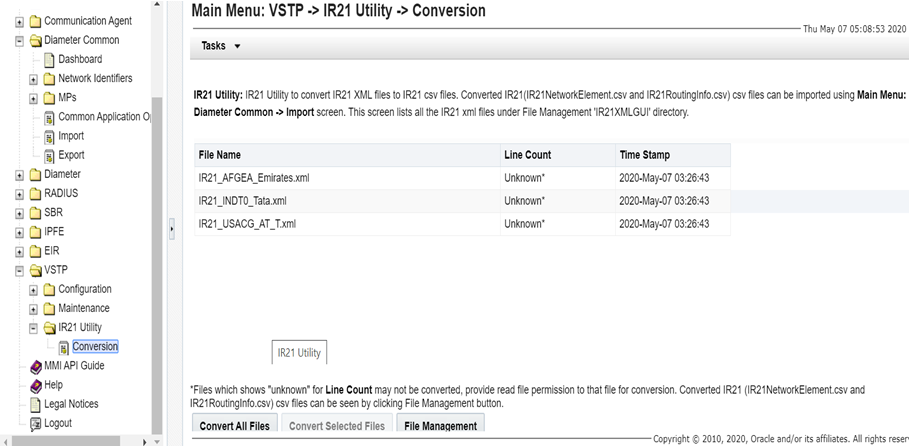

Figure 2-34 IR21 Utility

The IR21 Utility converts the IR21 XML files to CSV files.

Importing CSV Files

The converted IR21NetworkElemet.csv and IR21RoutingInfo.csv files can be imported from Active System OAM (SOAM).

The Group Code parameter must be configured in the Local Signalling Points and Remote Signalling Points options. Select VSTP > Diameter Common > Import. The page lists all the IR21 files under File Management > IR21XMLGUI directory.

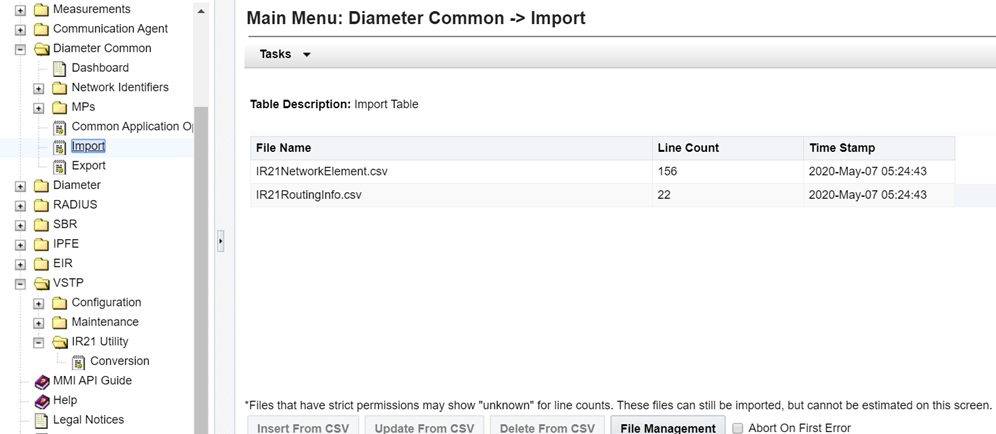

Figure 2-35 Importing IR21 CSV Files

For more details on IR21 Utility GUI configurations, see IR21 Utility .
