Relationships and Objects of a Multi-Value Group Applet

The list column is a child of the list. It includes a Field property that identifies the field in the detail business component that the multi-value group references. Siebel CRM displays this data in the list column. For more information, see How a Business Component Field Identifies the Type of Data.

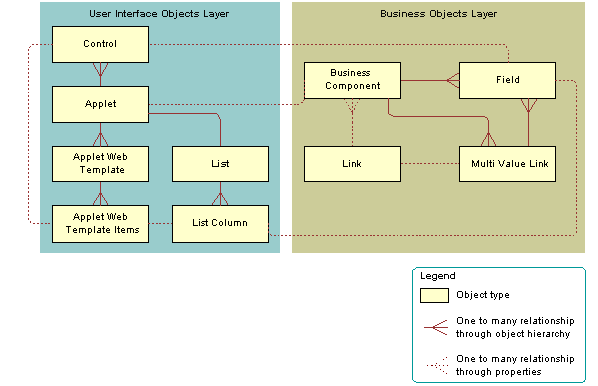

The following figure shows the relationships and objects that Siebel CRM uses in a multi-value group applet, which are as follows:

• User Interface Objects Layer. Contains the following objects: Control, Applet, Applet Web Template, Applet Web Template Items, List, List Columns. There is a 1:M relationship between Applet and Control, Applet and Applet Web Template, Applet Web Template and Applet Web Template Items (through properties), List and List Column. There is a 1:1 relationship between Applet and List.

• Business Objects Layer. Contains the following objects: Business Component, Field, Link, Multi-Value Link. There is a 1:M relationship between Business Component and Field, Business Component and Multi-Value Link, Link and Business Component (through properties), Multi-Value Link and Field. There is a 1:1 relationship between Link and Multi-Value Link (through properties).
