About Plug-in Wrappers
A plug-in wrapper is a complete and independent manager of an applet control and its life-cycle. It is entirely responsible for all actions of a control, including but not limited to its showing, value management, event handling. Plug-in wrappers cater to control level management. A plug-in wrapper allows the wrapper to handle the control of specific functionalities. Individual renderers will delegate the control-specific-functionalities to the wrappers. The wrappers handle the applet control level implementation.

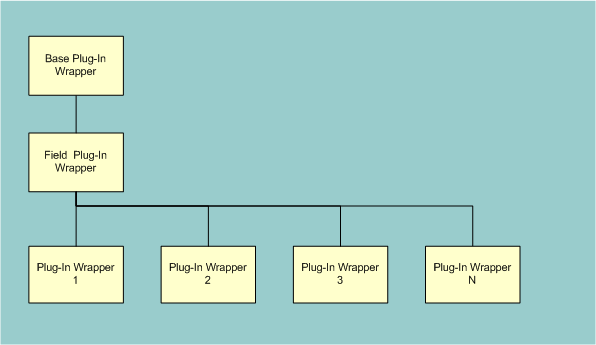

The following figure outlines the class structure of plug-in wrappers.
This figure contains the following elements:
-
Base Plug-In Wrapper. This is the base specification class. It defines the base properties and methods to which every plug-in wrapper must adhere. No functionality is implemented in this class and it is not recommended that any derivation or customization occur from this class.
-
Field Plug-In Wrapper. This is the class that defines the default functionality of a control. All APIs have a definition, and this plug-in wrapper is a fallback class for all customizations. You may choose to derive a custom wrapper from this class if your intention is to write a new customization.
-
Plug-In Wrapper 1, Plug-In Wrapper 2, Plug-In Wrapper 3, Plug-In Wrapper N. These are Siebel Open UI out-of-the-box customizations that are used to display specific types of controls. Examples of these are date pickers, drop-down menus, flip switches and signatures. You may choose to derive a custom wrapper from one of these classes if your intention is to slightly modify the functionality of an existing plug-in wrapper.
For more information about plug-in wrappers, including detailed instructions about creating and customizing a plug-in wrapper, see Process of Customizing the Plug-in Wrapper and Plug-in Wrapper Class.
