Flow That Handles Navigation to Another Row in List Applets

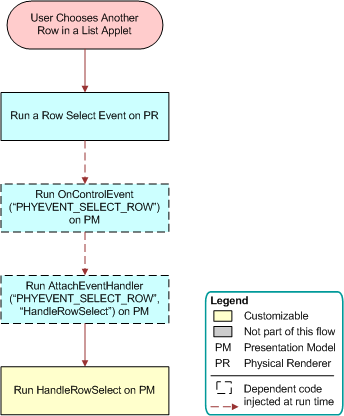

The following figure illustrates the flow that Siebel Open UI follows if the user navigates to another row in a list applet. The steps in the flow are as follows:
-
User selects another row in a list applet.
-
Run a Row Select Event on Physical Renderer.
-
Run OnControlEvent ("PHYEVENT_SELECT_ROW") on Presentation Model.
-
Run AttachEventHandler ("PHYEVENT_SELECT_ROW", "HandleRowSelect") on Presentation Model.
-
Run HandleRowSelect on PM.
