1. Configuring Siebel Open UI Guide
  2. Items in the Development Architecture You Can Modify

Items in the Development Architecture You Can Modify

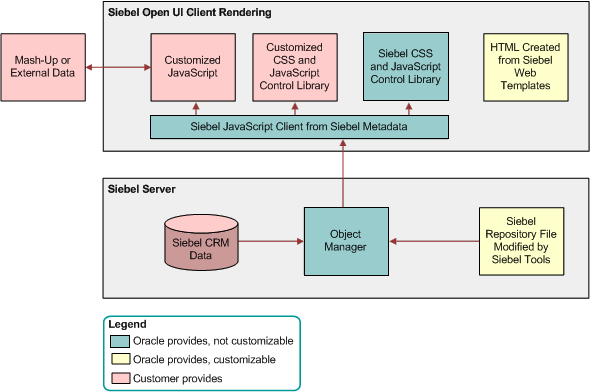

The following figure indicates the predefined items in the development architecture that Siebel CRM provides and the items that you can modify. It delineates areas where you can customize Siebel Open UI.

Items in the Development Architecture You Can Modify: This image is described in the surrounding text.

As shown in this figure:

  1. The Siebel Open UI Client Rendering side contains the following:

    • Oracle provided, non-customizable components: Siebel JavaScript Client from Siebel Metadata, Siebel CSS and JavaScript Control Library.

    • Oracle provided, customizable components: HTML Created from Web Templates.

    • Customer provided components: Customized JavaScript, Customized CSS and JavaScript Control Library, Mash-up of External Data.

  2. The Siebel Server side contains the following:

    • Oracle provided, non-customizable components: Object Manager.

    • Oracle provided, customizable components: Siebel Repository File (modified by Siebel Tools/Web Tools.

    • Customer provided components: Siebel CRM Data.
