Managed Care

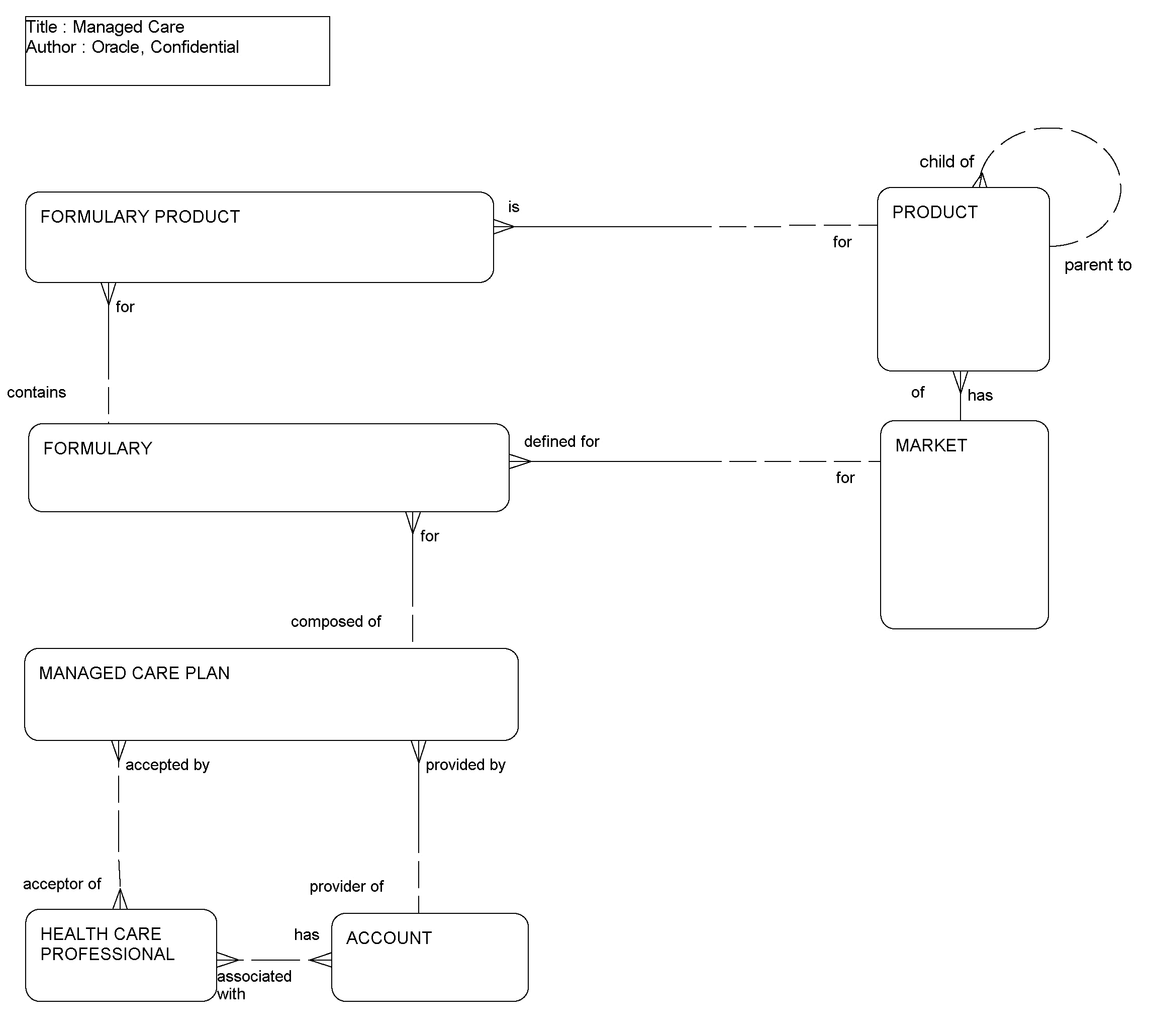

This ERD (see the following figure) illustrates how plan design, formulary, and formulary product are used in Siebel Life Sciences. An account contains plan designs, which have relationships to contacts. Each plan design contains formularies, which are associated with markets that are essentially products. Each formulary contains formulary products, which are child products for the market with which the formulary is associated.

Managed Care: This image is described in the surrounding text.

The following table lists the entities in this ERD and their corresponding tables.

Entity Table

Account

S_ORG_EXT, S_PARTY

Formulary

S_INSPLN_FRMLY

Formulary Product

S_PLNFRMLY_PROD

Health Care Professional

S_CONTACT, S_PARTY

Managed Care Plan

S_INS_PLAN

Plan Design Contact

S_INSPLAN_CON

Product, Market

S_PROD_INT
