Product Quality Tracking

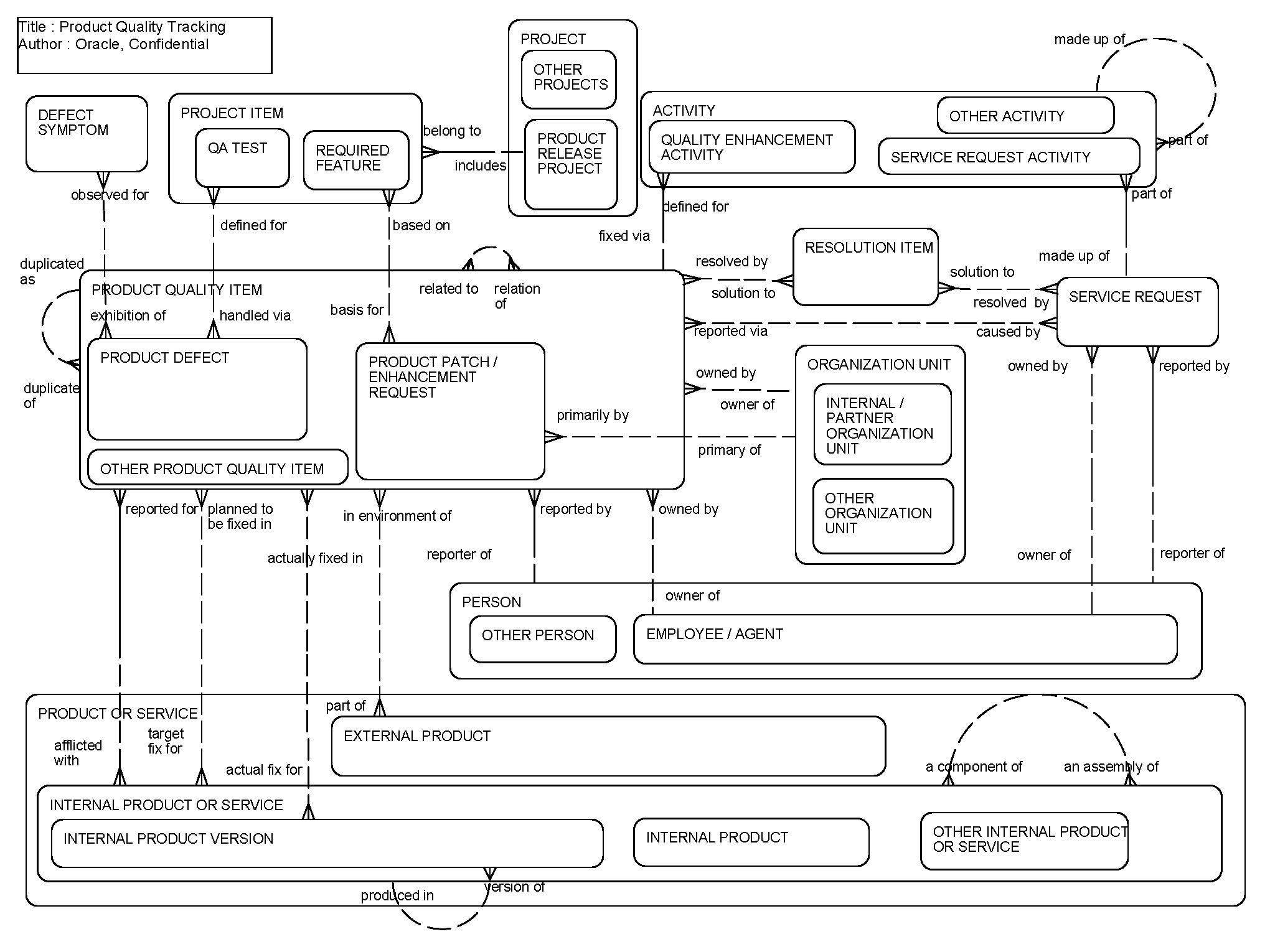

This ERD (see the following figure) illustrates the significant entities related to product defect tracking. Defects can be associated with service requests and can include associated activities defined to fix the defect. Associations can be defined with various product or product versions to record which are affected by the defect, which are planned to fix the defect, and which actually fix the defect. Additional relevant associations with external products can be recorded. Defects can be associated with other, related defects.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT
Defect Symptom	S_PRDFCT_SYMP
Employee/Agent	S_EMP_PER, S_CONTACT, S_PARTY
Organization Unit	S_ORG_EXT, S_PARTY
Product or Service	S_PROD_INT, S_PROD_EXT
Product Quality Item	S_PROD_DEFECT
Project	S_PROJ
Project Item	S_PROJITEM
Resolution Item	S_RESITEM
Service Request	S_SRV_REQ
