Vehicle Sales

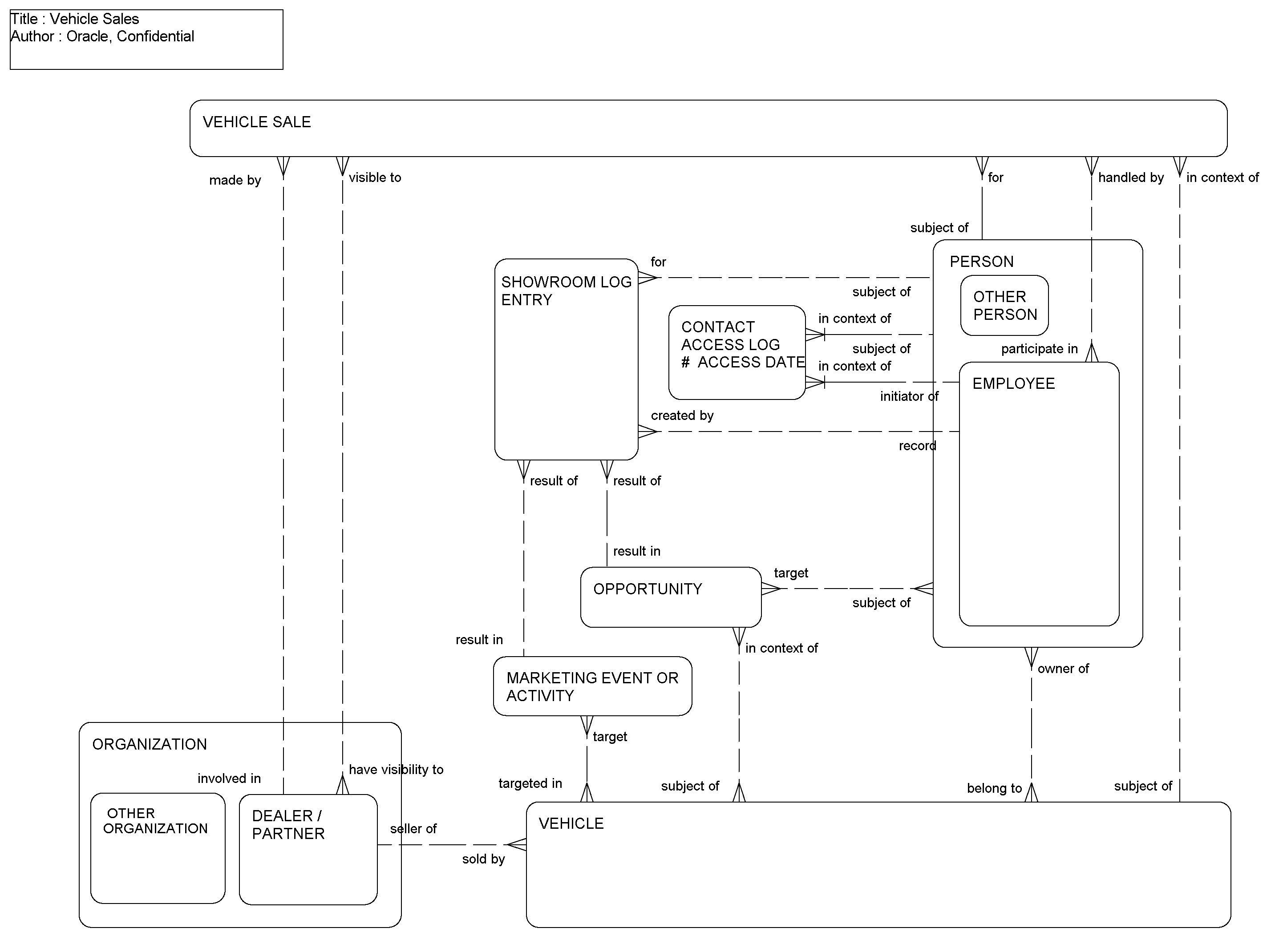

This ERD (see the following figure) illustrates the vehicle sales process at automotive dealerships. A prospective buyer could come into a dealership as a result of a marketing activity by the dealership such as an advertisement campaign, direct mailer, and so on. This could result in an opportunity to sell a vehicle to the prospective buyer. A showroom log entry is created by a sales representative to record the visit of the prospective buyer. The sales representative could call and pursue the opportunity with the prospect. If the vehicle is sold, the sale is recorded with the team of sales representatives involved in the sale. The sale data could be made visible to affiliated dealerships.
The following table lists the entities in this ERD and their corresponding tables.
| Entity | Table |
|---|---|
|
Contact Access Log |
S_CON_ACCSS_LOG |
|
Employee |
S_EMP_PER, S_CONTACT, S_USER |
|
Marketing Event or Activity |
S_SRC |
|
Opportunity |
S_OPTY, S_OPTY_ATX |
|
Organization |
S_ORG_EXT, S_BU |
|
Person |
S_CONTACT, S_CONTACT_ATX, S_CONTACT_BU |
|
Showroom Log Entry |
S_COMM_LOG |
|
Vehicle |
S_ASSET, S_ASSET_ATX |
|
Vehicle Sale |
S_VHCL_SALES, S_VHCL_SALES_BU, S_VHCL_SALE_EMP |
