Opportunity Sharing Siebel Query

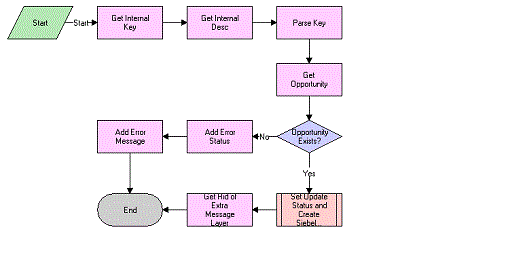

The Opportunity Sharing Siebel Query workflow process is shown in the following diagram.

Opportunity Sharing Siebel Query Process: This image is described in the surrounding text.

As shown in this diagram, the following events happen when this workflow is called:

  • Get Internal Key. This event finds the value of the internal key in the Siebel message and returns it.

  • Get Internal Desc. This event finds the internal key description in the Siebel message and returns it.

  • Parse Key. This event takes in internal key and internal key description and creates a search specification.

  • Get Opportunity. This event searches for the opportunity using the search specification.

  • Opportunity Exists. This event checks to see if the number of opportunities found by the query is greater than zero to determine if the opportunity already exists.

  • Add Error Status. If the opportunity does not exist, this event sets the transfer status in the Siebel message to an error status.

  • Add Error Message. If the opportunity does not exist, this event sets the transfer status message in the Siebel message to an error status message.

  • Set Update Status and Create Siebel Message. This event calls Opportunity Sharing Set Update Status, passing it the opportunity ID.

  • Get Rid of Extra Message Layer. This event removes the extra layer that is added to a Siebel message when it is passed up from a subprocess.
