Transfer Cart Outbound Create Header Process Workflow

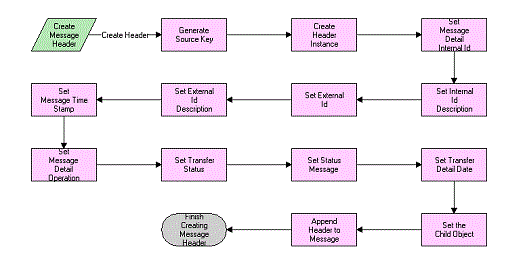

The Transfer Cart Outbound Create Header Process workflow is shown in the following diagram.

Transfer Cart Outbound Create Header Process Workflow: This image is described in the surrounding text.

As shown in this diagram, the following events happen when this workflow is called:

  • The early events gather and set data used in the message header as follows:

    • They set all of the key information first, including the internal key and key description. The external system uses this to reference a record in the Siebel database.

    • They also set the timestamps and status messages.

  • The later events instantiate the header instance by creating an empty data structure based on the metadata provided by the integration object definition in Siebel Tools. They append all the data to the empty data structure.
