5. Deploying Application

5.1 Deploying Application

1. Login to the Oracle Enterprise Manager 12c console . (i.e. http://hostname:port/em)

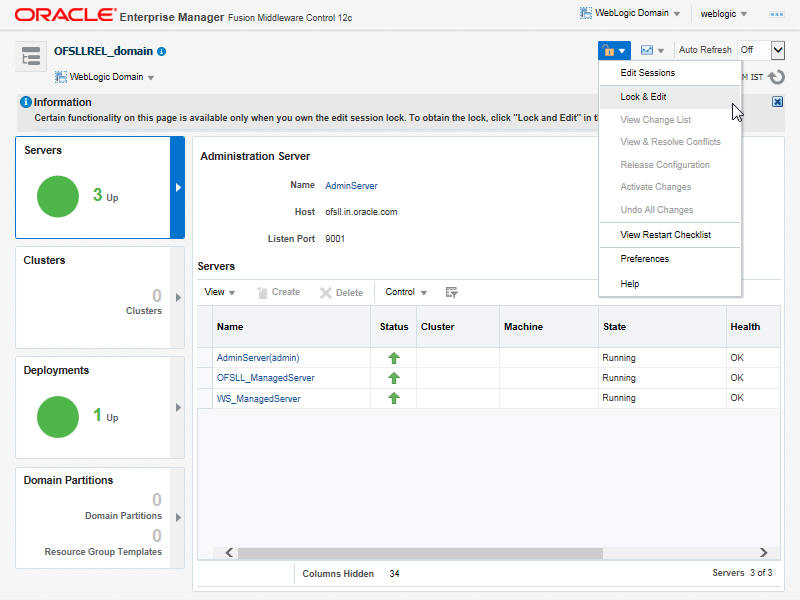

2. Click on ‘Lock and Edit’ as shown below.



3. The following window is displayed.

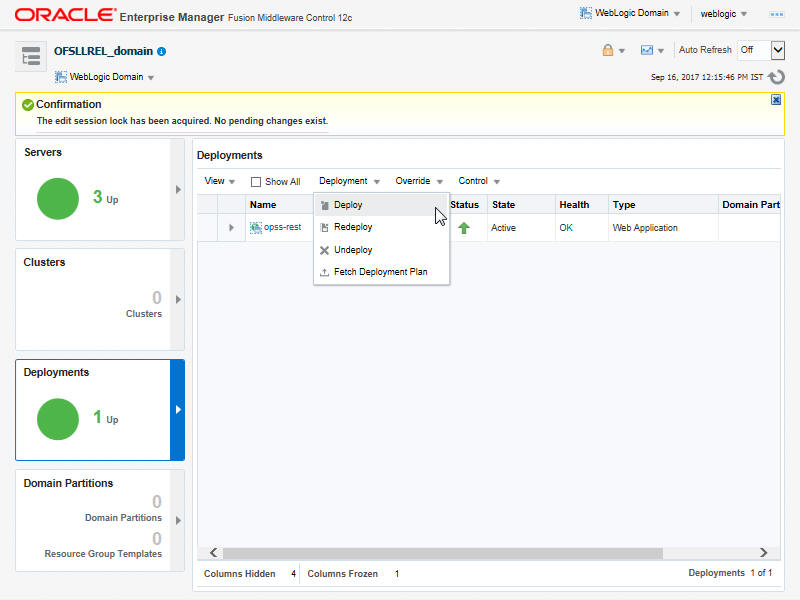

4. Click on Deployments in the left panel. To deploy go to Deployments option in the menu as shown below.



5. Click ‘Choose File’ button and select OFSLL application archive file i.e. ofsll_149.ear. Choose the ‘Deployment Plan’ (if any).



Note

A deployment plan can be used to easily change an application's WebLogic Server con­figuration for a specific environment without modifying existing deployment descriptors.

Sample plan.xml

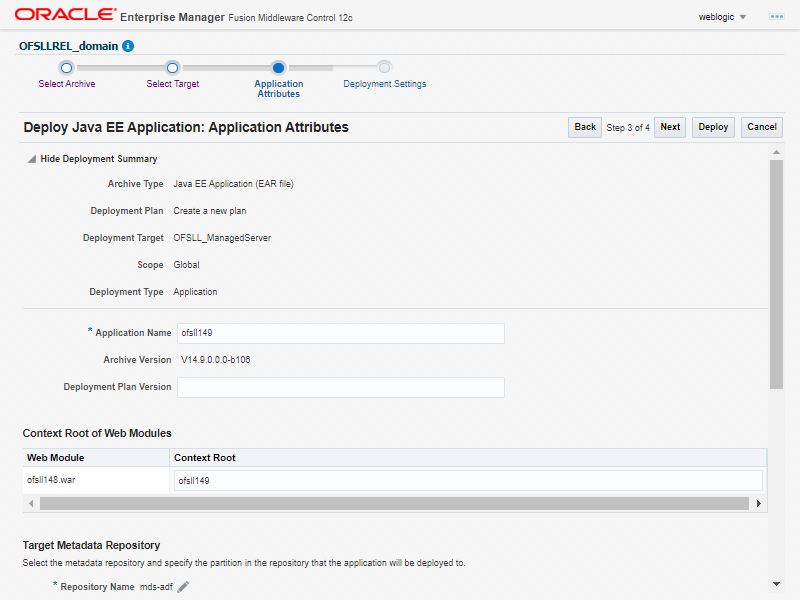

6. Click ‘Next’. The following window is displayed.



7. Check target server as per the requirement ‘OFSLL_ManagedServer’ and click ‘Next’. The following window is displayed.



8. Click button to select Repository Name. The following window is displayed.



9. Select Repository as per requirement and click ‘OK’.

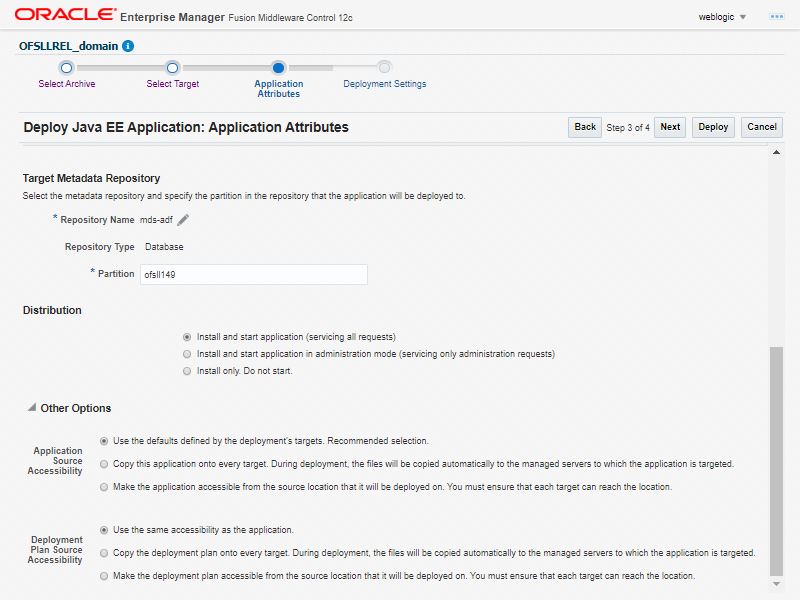

10. Enter Partition name as per the requirement and click ‘Next’.



11. Click ‘Deploy’. The following window is displayed



12. Click Close once the message ‘Deploy operation completed’ is displayed.
