5        Installation

Sl. No.

Activity

1

Extract the OFS BCE application software.

2

Configure the OFS_IBCE_PACK.xml file.

3

Configure the OFS_IBCE_SCHEMA_IN.xml file.

4

Configure the OFS_IBCE_SCHEMA_BIGDATA_IN.xml file for Stage and Results on Hive (Only for the Big Data installation).

5

Configure the OFSAAI_InstallConfig.xml file.

6

Configure the Silent.props file.

7

Backup the configuration files.

8

Execute the Schema Creator Utility in Offline, Online, or TCPS modes and verify the log file.

9

Verify the Schema Creator Log Files.

10

Trigger the application installation.

NOTE

If an error message "uncompress: not found [No such file or directory]" is displayed, contact your UNIX administrator.

NOTE

After the extraction, if you have a space issue, delete the .zip file.

Tag Name/ Attribute Name

Description

Mandatory (Y/ N)

Comments

APP_PACK_ID

Unique Application Pack Identifier

Y

Unique Seeded Value. Do not modify this value.

IS_OPT_INSTALL VALUE="TRUE"

Unique Application Entry

Y

Unique Seeded Value. Do not modify this value.

APP_PACK_NAME

Unique Application Pack Name

Y

Unique Seeded Value. Do not modify this value.

APP_PACK_DESCRIPTION

Unique Application Pack Description

Y

Unique Seeded Value. Do not modify this value.

VERSION

Unique release version

Y

Unique Seeded Value. Do not modify this value.

APP

Unique Application Entries

Y

Unique Seeded Value. Do not modify this value.

APP_ID

Unique Application Identifier

Y

Unique Seeded Value. Do not modify this value.

APP_ID/ PREREQ

Prerequisite Application/ Product

Y

Unique Seeded Value.

For most applications, OFS AAAI is the prerequisite set. For all other applications, the default Application ID is set to none. You can set it for the applications you would like to install.

Do not modify this value.

APP_ID/ DEF_SEL_FLAG

Default Selected Flag

Y

In all Application Packs, Infrastructure would have this value set to "YES".

Do not modify this value.

APP_ID/ ENABLE

Enable Application/ Product

Y

YES for Infrastructure and BCE. Do not modify this value.

The default value is NO for Others.

Permissible values are YES and NO.

Set this attribute- value to YES against every APP_ID which is licensed and must be enabled for use.

NOTE: The Application or Product cannot be disabled once enabled.

Only those Applications or Products, which are enabled, are installed. To enable the other licensed Applications or Products, you must reinstall by setting the flag to Y for the APP_ID. However, in case of reinstallation, to enable other Applications or Products, skip the execution of the schema creation utility if it does not include the creation of any additional sandbox.

APP_NAME

Unique Application/ Product Name

Y

Unique Seeded Value. Do not modify this value.

APP_DESCRIPTION

Unique Application/ Product Name

Y

Unique Seeded Value. Do not modify this value.

VERSION

Unique release version

Y

Unique Seeded Value. Do not modify this value.

Tag Name / Attribute Name

Description

Mandatory (Y / N)

Default Value / Permissible Value

Comments

<APP_PACK_ID>

Seeded unique ID for the OFS Application Pack.

Y

Seeded

Do not modify this value.

<IS_TCPS>

Enter if the TCPS configuration is required.

Y

Seeded, with FALSE as the default value.

Modify this to TRUE if you require the installer to uptake the configuration.

<JDBC_URL>

Enter the JDBC URL.

You can enter RAC/ NON-RAC enabled database connectivity URL.

Y

Example:

jdbc:oracle:thin:@< DBSERVER IP/ HOST/ IP>:<PORT>:<SID>

or

jdbc:oracle:thin:@//[HOS T][:PORT]/ SERVICE

or

jdbc:oracle:thin:@(DESCRI PTION=(ADDRESS_ LIST=(ADDRESS=(PROT OCOL=TCP)(HOST=[HO ST])(port=[PORT]))(ADD RESS=(PROTOCOL=TCP) (HOST=[HOST])(PORT=[ PORT]))(LOAD_ BALANCE=yes)(FAILOV ER=yes))(CONNECT_ DATA=(SERVICE_ NAME=[SERVICE])))

For example:

jdbc:oracle:thin:@//dbhos t.server.com:1521/service 1

or

jdbc:oracle:thin:@//dbsho st.server.com:1521/scan-1

or

jdbc:oracle:thin:@(DESCRI PTION=(ADDRESS_ LIST=(ADDRESS=(PROT OCOL=TCP)(HOST=dbho

st1.server.com)(port=1521)

)(ADDRESS=(PROTOCO

L=TCP)(HOST=dbhost2.s erver.com)(PORT=1521))( LOAD_ BALANCE=yes)(FAILOV ER=yes))(CONNECT_ DATA=(SERVICE_

NAME=service1)))

Ensure to add an entry (with SID/ SERVICE NAME) in the tnsnames.ora file on the OFSAA server. The entry must match with the SID/ SERVICE NAME used in the JDBC URL.

<JDBC_DRIVER>

This driver name is seeded by default.

Y

Example: oracle.jdbc.driver.OracleDriver

Only JDBC Thin Driver is supported.

Do not modify this value.

<HOST>

Enter the Hostname/ IP Address of the system on which you are installing the OFSAA components.

Y

Host Name/IP Address

<SETUPINFO>/PREFIX_SCHEMA_NAME

Identifies whether the value specified in <SETUPINFO>/NAME attribute must be prefixed to the schema name.

N

YES or NO

Default value is YES.

<SETUPINFO>/NAME

Enter the acronym for the type of implementation. This information is displayed in the OFSAA Home Page.

On executing the schema creator utility, this value is prefixed with each schema name. For example: dev_ofsaaconf, uat_ofsaatm.

Y

Accepts strings with a minimum length of two and a maximum of four.

Example: DEV, SIT, PROD

This name appears in the OFSAA Landing Page as "Connected To: DEV".

The schemas being created get this prefix. For example, dev_nameconf, uat_nameconf, and so on.

<PASSWORD>/ DEFAULT*

Enter the password if you want to set a default password for all schemas.

You also must set the APPLYSAMEFORALL attribute as Y to apply the default password for all the schemas.

N

The maximum length allowed is 30 characters. Special characters are not allowed.

On successful execution of the utility, the entered password in the OFS_IBCE_SCHEMA_IN.xml file is nullified.

<PASSWORD>/ APPLYSAMEFORALL

If you have entered Y in APPLYSAME-

FORALL attribute and also have specified individual passwords for all the schemas, then the specified individual passwords will take precedence.

Y

Default value: N

Permissible value: Y or N

Enter Y if you want to apply the password specified in the DEFAULT attribute for all the schemas.

If you enter as N, you must provide individual passwords for all schemas.

Setting this attribute value is mandatory, if the DEFAULT attribute is set.

Tag Name / Attribute Name

Description

Mandatory (Y / N)

Default Value / Permissible Value

Comments

<SCHEMA>/TYPE

The different types of schemas that are supported in this release are ATOMIC, CONFIG, SANDBOX, and ADDON.

By default, the schemas types are seeded based on the Application Pack.

Y

ATOMIC/CONFIG/SANDBOX/ADDON

SANDBOX and ADDON schemas are not applicable for OFS_IBCE_PACK.

Only One CONFIG schema can exist in the file.

Do not edit this attribute value.

This schema identifies as the CONFIGURATION schema that holds the OFSAA setup detains and other Metadata information.

Multiple ATOMIC/ SANDBOX/ADDON schemas can exist in the file.

<SCHEMA>/NAME

The schemas’ names are seeded based on the Application Pack by default.

You can edit the schema names if required.

The Schema Name will have a prefix of the SETUPINFO/ NAME attribute.

SCHEMA NAME must be the same for all the ATOMIC Schemas of the applications within an Application Pack.

Y

The permissible length is 15 characters and only alphanumeric characters are allowed. No special characters are allowed except underscore _.

The SETUPOINFO/NAME attribute value is prefixed to the schema name being created.

For example, if a name is set as 'ofsaatm' and setupinfo as 'uat', then schema being created is 'uat_ofsaatm'.

NAME must be the same where APP_GRP=1 for all SCHEMA tags (not applicable for this Application).

<SCHEMA>/PASSWORD

Enter the password of the schema to be created.

If this attribute is left blank, then the password specified in the <PASSWORD>/DEFAULT attribute is applied as the Schema Password.

N

The maximum length allowed is 30 characters. Special characters are not allowed.

It is mandatory to enter the password if you have set the <PASSWORD>/ APPLYSAMEFORALL attribute as N.

<SCHEMA>/APP_ID

The Application ID is seeded based on the Application by default.

Y

Unique Seeded Value

Identifies the Application/ Product for which the schema is being created. Do not edit this attribute value.

Do not modify this value.

<SCHEMA>/DEFAULTTABLESPACE

Enter the available default tablespace for DB User.

If this attribute is left blank, then USERS is set as the default tablespace.

N

Default value: USERS

Permissible value: Any existing valid tablespace name.

Modify this value to associate any valid tablespace with the schema.

<SCHEMA>/TEMPTABLESPACE

Enter the available temporary tablespace for DB User.

If this attribute is left bank, TEMP is set as the default tablespace.

N

Default value: TEMP

Permissible value: Any existing valid temporary tablespace name.

Modify this value to associate any valid tablespace with the schema.

<SCHEMA>/QUOTA

Enter the quota to be set on DEFAULTTABLESPACE attribute for the schema/ user. By default, the quota size is set to 500M.

Minimum: 500M or Unlimited on default Tablespace.

N

Example:

600M or 600m

20G or 20g

UNLIMITED or unlimited

Modify this value to grant the specified quota on the mentioned tablespace to the user.

<SCHEMA>/ INFODOM

Enter the name of the Information Domain to associate this schema.

The schema creator utility automatically derives an Information Domain Name based on the Application Pack if no value is specified for this attribute.

N

Permissible length is 16 characters and only alphanumeric characters are allowed. No special characters are allowed.

Tag Name / Attribute Name

Description

Mandatory (Y / N)

Default Value / Permissible Value

Comments

<ADV_SEC_OPTIONS>/

Parent tag to hold Advance Security Options.

N

NA

Uncomment the tag and edit if you want to add security options. For example, TDE and Data Redact.

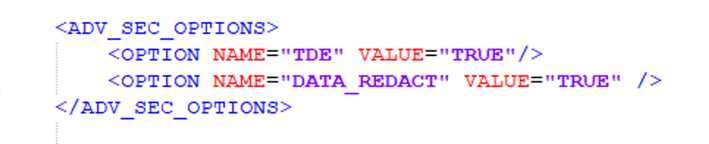

For details, see the example following the rows.

<ADV_SEC_OPTIONS>/TDE

Tag to enable/disable TDE feature.

N

Default value is FALSE.

To enable TDE, set this value to TRUE.

Ensure this tag is not commented if you have uncommented <ADV_SEC_OPTIONS>.

<ADV_SEC_OPTIONS>/DATA_REDACT

Tag to enable/disable Data Redaction feature.

N

Default value is FALSE.

To enable DATA_REDACT, set this value to TRUE.

Ensure this tag is not commented if you have uncommented<ADV_SEC_OPTIONS>.

Tag Name / Attribute Name

Description

Mandatory (Y / N)

Default Value / Permissible Value

Comments

<TABLESPACES>

Parent tag to hold

<TABLESPACE> elements

N

NA

Uncomment the tag and edit only if tablespaces are to be created as part of the installation.

For details, see the example that follows the table.

When TDE is TRUE in ADV_SEC_OPTIONS,

then it is mandatory for the

<TABLESPACES> tag to be present in the XML file.

<TABLESPACE>/NAME

Logical Name of tablespace to be created.

Y

OFSAA_CONF_TBSP

OFSAA_DATA_TBSP

Name, if specified, must be referred in the <SCHEMA DEFAULTTABLESPACE= "##NAME##"> attribute.

Note the ## syntax.

<TABLESPACE>/VALUE

Physical Name of the tablespace to be created.

Y

NA

Value, if specified, is the actual name of the TABLESPACE.

<TABLESPACE>/DATAFILE

Specifies the location of the data file on the server.

Y

NA

Enter the absolute path of the file to be created.

<TABLESPACE>/AUTOEXTEND

Specifies if the tablespace must be extensible or have a hard limit.

Y

ON or OFF

Set to ON to ensure that the tablespace does not run out of space when full.

<TABLESPACE>/ENCRYPT

Specifies if the tablespace(s) must be encrypted using TDE.

Y

ON or OFF

Set to ON to ensure that the tablespaces when created are encrypted using TDE.

Note: Encryption of tablespaces requires enabling Transparent Data Encryption (TDE) on the Database Server.

NOTE

This file must be configured only for the OFSBCE Application installation for the HDFS ONLY target. Do not configure this file for an RDBMS ONLY target installation.

Tag Name/ Attribute Name

Description

Mandatory (Y/N)

Default Value/ Permissible Value

Comments

<APP_PACK_ID>

Seeded unique ID for the OFSAA Application.

Y

Seeded

DO NOT modify this value.

<IS_TCPS>

Enter if the TCPS configuration is required. This is to create a secure line between the client and server when using the OFSBCE application.

Y

Seeded, with FALSE as the default value.

Modify this to TRUE if you require the installer to uptake the configuration.

<JDBC_URL>

Enter the JDBC URL

NOTE: You can enter the RAC or NON-RAC enabled database connectivity URL.

Y

Example:

jdbc:oracle:thin:@<HOST/ IP>:<PORT>:<SID>

or

jdbc:oracle:thin:@//[HOS T][:PORT]/SERVICE

or

jdbc:oracle:thin:@(DESCRI PTION=(ADDRESS_ LIST=(ADDRESS=(PROT OCOL=TCP)(HOST=[HO ST])(port=[PORT]))(ADD RESS=(PROTOCOL=TCP) (HOST=[HOST])(PORT=[ PORT]))(LOAD_ BALANCE=yes)(FAILOV ER=yes))(CONNECT_ DATA=(SERVICE_ NAME=[SERVICE])))

For example, jdbc:oracle:thin:@//dbhos t.server.com:<port>/service 1

or

jdbc:oracle:thin:@//dbsho st.server.com:<port>/scan-1

or

jdbc:oracle:thin:@(DESCRI PTION=(ADDRESS_ LIST=(ADDRESS=(PROT OCOL=TCP)(HOST=dbho

st1.server.com)(port=1521)

)(ADDRESS=(PROTOCO

L=TCP)(HOST=dbhost2.s erver.com)(PORT=1521))( LOAD_ BALANCE=yes)(FAILOV ER=yes))(CONNECT_ DATA=(SERVICE_

NAME=service1)))

For an HDFS ONLY target installation, this URL should be of the RDBMS instance that hosts the Application’s METADOM.

<JDBC_DRIVER>

By default, this driver's name is seeded.

Note: Do not edit this attribute value.

Y

Example:

oracle.jdbc.driver.OracleD river

Only JDBC Thin Driver is supported.

DO NOT modify this value.

<HOST>

Enter the Hostname or IP Address of the system on which you are installing the OFSAA components.

Y

Host Name/ IP Address

<IS_HYBRID>/VALUE

Tag to enable/disable HYBRID installation (Stage on Hive and Results on RDBMS).

N

The default value is FALSE

The default value is FALSE for Hive.

<SETUPINFO>/ PREFIX_SCHEMA_NAME

Identifies if the value specified in the <SETUPINFO>/NAME attribute should be prefixed to the schema name.

N

YES or NO.

The default value is YES.

<SETUPINFO>/NAME

Enter the acronym for the type of implementation. This information will be displayed in the OFSAA Home Page.

Note: On executing the schema creator utility, this value will be prefixed with each schema name. For example, dev_ ofsaaconf, uat_ofsaaatm.

Y

Accepts strings with a minimum length of two and a maximum of four.

Example: BCE

This name would appear in the OFSAA Landing Page as "Connected To: XXXX".

The schemas being created would get this prefix. For example, dev_ ofsaaconf, uat_ofsaaconf, and so on.

<PASSWORD>/DEFAULT*

Enter the password if you want to set a default password for all schemas.

Note: You also need to set the APPLYSAMEFORALL attribute as Y to apply the default password for all the schemas.

N

The maximum length allowed is 30 characters. Special characters are not allowed.

Applies only to the RDBMS type METADOM schema(s).

<PASSWORD>/APPLYSAMEFORALL

Enter as Y if you want to apply the password specified in the DEFAULT attribute for all the schemas.

If you enter as N, you need to provide individual passwords for all schemas.

Note: If you have entered Y in APPLYSAMEFORALL attribute and also have specified individual passwords for all the schemas, then the specified individual passwords will take precedence.

Y

The default value is N.

Permissible values are Y and N.

Note: Setting this attribute value is mandatory if the DEFAULT attribute is set.

Applies only to the RDBMS type METADOM schema(s).

Tag Name/ Attribute Name

Description

Mandatory (Y/N)

Default Value/ Permissible Value

Comments

<SCHEMAS>/TYPE=RDBMS

Identifies the RDBMS schema details.

Y

Default names for schemas within the pack are derived in the absence of any value specified.

In an HDFS ONLY target installation, the Application’s METADOM (that hosts the metadata) for an application is stored in the RDBMS schema and the data model entities of the application are stored in the DATADOM (which is be on Hive).

<SCHEMA>/TYPE

The different types of schemas that are supported in this release are ATOMIC, CONFIG.

By default, the schemas types are seeded based on the Application.

Note: Do not edit this attribute value.

Y

ATOMIC/CONFIG.

Only One CONFIG schema can exist in the file.

This schema identifies as the CONFIGURATION schema that holds the OFSAA setup details and other metadata information.

Multiple ATOMIC or SANDBOX or ADDON schemas can exist in the file.

ATOMIC schema refers to the METADOM within the Information Domain schema. SANDBOX schema refers to the SANDBOX schema.

ADDON schema refers to other miscellaneous schemas (not applicable for this Application).

<SCHEMA>/NAME

By default, the schema names are seeded based on the Application.

You can edit the schema names if required.

Note:

The Schema Name will have a prefix of the SETUPINFO/NAME attribute.

SCHEMA NAME must be the same for all the ATOMIC Schemas of applications within an Application.

Y

The permissible length is 15 characters and only alphanumeric characters are allowed. No special characters are allowed except the Underscore '_'.

SETUPINFO/ NAME attribute value is be prefixed to the schema name being created.

For example, if the name is set as 'ofsaaatm' and setupinfo as 'uat' then schema being created would be 'uat_ofsaaatm'.

NAME should be the same where APP_GRP=1 for all SCHEMA tags (not applicable for this Application).

<SCHEMA>/PASSWORD

Enter the password of the schema to be created.

Note:

If this attribute is left blank, then the password specified in the <PASSWORD>/DEFAULT attribute is applied as the Schema Password.

N

The maximum length allowed is 30 characters. Special characters are not allowed.

NOTE: You need to mandatorily enter the password if you have set the <PASSWORD>/ APPLYSAMEFORALL attribute as N.

<SCHEMA>/APP_ID

By default, the Application ID is seeded based on the Application.

Note: Do not edit this attribute value.

Y

Unique Seeded value.

Identifies the Application or Product for which the schema is being created.

DO NOT modify this value.

<SCHEMA>/DEFAULTTABLESPACE

Enter the available default tablespace for DB User.

Note:

If this attribute is left blank, then USERS is set as the default tablespace.

N

The default value is USERS.

Permissible value is any existing valid tablespace name.

Modify this value to associate any valid tablespace with the schema.

<SCHEMA>/TEMPTABLESPACE

Enter the available temporary tablespace for the DB User.

Note:

If this attribute is left blank, then TEMP is set as the default tablespace.

N

The default value is TEMP.

Permissible value is any existing valid temporary tablespace name.

Modify this value to associate any valid tablespace with the schema.

<SCHEMA>/QUOTA

Enter the quota to be set on the DEFAULTTABLESPACE attribute for the schema or user. By default, the quota size is set to 500M. Minimum: 500M or Unlimited on default Tablespace.

N

Example:

600M or 600m

20G or 20g

UNLIMITED or unlimited

Modify this value to grant the specified quota on the mentioned tablespace to the user.

<SCHEMA>/INFODOM

Enter the name of the Information Domain to associate this schema.

The schema creator utility automatically derives an Information Domain Name based on the Application if no value is specified for this attribute.

N

Permissible length is 16 characters and only alphanumeric characters allowed. No special characters allowed.

##INFODOM_NAME##

Example:

BCEINFO

Tag Name/ Attribute Name

Description

Mandatory (Y/N)

Default Value/ Permissible Value

Comments

<SCHEMAS>/TYPE=HDFS

Type of schemas being created.

Y

Refers to the DATADOM of the Application being installed.

<HIVE_SERVER_HOST>

IP or HostName of the server where HIVE is installed.

Y

<HIVE_LIB_PATH>

Folder path where HIVE related drivers or jar files are copied.

Y

Should contain the list of jars mentioned in the section Copying Jars to  OFSAA Installation  Folder and krb5.conf, keytab files. Manually copy the preceding listed files from CDH distribution to this identified folder.

Note: The Cloudera administrator will provide these two files krb5.conf and keytab.

<SCHEMA>/NAME

By default, the schema names are seeded based on the Application Pack.

You can edit the schema names if required.

Note: The Schema Name will have a prefix of the SETUPINFO/NAME

attribute.

Y

The permissible length is 20 characters and only alphanumeric characters allowed.

Example:

HIVEHYBDATADOM

Schema Name should not be the same as Schema Name specified for Schema Type ATOMIC.

<SCHEMA>/TYPE

Identifies the type of schema where the data model entities would reside.

Y

By default, the TYPE attribute in this tag is set to DATADOM.

DO NOT modify this value.

<SCHEMA>/APP_ID

By default, the Application ID is seeded based on the Application Pack.

Y

The supported value is OFS_IBCE.

<SCHEMA>/DBTYPE

Identifies the type of driver to be used for the connection.

Y

By default, the only supported type is HIVE in this release.

In the upcoming releases, the type value can be HIVE, IMPALA, and so on.

<SCHEMA_PROPERTIES>/<PROPERTY>/COMMENT

COMMENTS for HIVE schema.

N

<SCHEMA_PROPERTIES>/<PROPERTY>/LO CATION

You can optionally specify a location for the table data.

N

hdfs:// ##HIVE_SERVER_HOST_NAME_OR_IP##:NamenodePort/user/hive/warehouse/<<PREFIX>>__<<SCHEMA_NAME>>/

Note: The <<PREFIX>> prefix is applicable only if the  <PREFIX_SCHEMA_NAME> tag is "Y" in the <SETUPINFO> tag.

For example: When <SETUPINFO NAME="BCE" PREFIX_SCHEMA_NAME="Y"/>. <<SCHEMA_NAME>> is the DATADOM schema name.

Example:

hdfs:// whf00bsy.in.oracle.com:8020/user/hive/warehouse/BCE_BSYDATADOM/

<CONNECTION_PROPERTIES>/

<PROPERTY>/JDBC_DRIVER

HIVE JDBC driver details.

Y

com.cloudera.hive.j dbc4.HS2Driver

The default cloudera HiveServer 2 driver name.

<CONNECTION_PROPERTIES>/

<PROPERTY>/JDBC_URL

Enter HIVE JDBC URL.

Y

jdbc:hive2://##HIVE_SERVER_HOST_NAME_OR_IP##:10000/<<PREFIX>>__<<SCHEMA_NAME>>;AuthMech=1;KrbServiceName=hive;KrbHostFQDN=##HIVE_SERVER_HOST_NAME_OR_IP##;KrbRealm=##REALM##

Note: <<PREFIX>> Prefix is applicable only if the <PREFIX_SCHEMA_NAME> tag is Y in <SETUPINFO> tag. For example, when <SETUPINFO NAME="BCE" PREFIX_SCHEMA_NAME="Y"/>. <<SCHEMA_NAME>> is the DATADOM schema name.

For example:

jdbc:hive2://whf00bsy.in.oracle.com:10000/BCE_ BSYDATADOM;AuthMech=1;KrbServiceName=hive;KrbHostFQDN=whf00bsy.in.oracle.com;KrbRealm=WHFBSY.ORACLE.COM

Specify the Hive JDBC URL to connect to the Hive Server.

<CONNECTION_PROPERTIES>/

<PROPERTY>/AUTH_TYPE

Authentication Type.

Y

Permissible values: KERBEROS_WITH_ KEYTAB.

Only “Kerberos with keytab” based authentication supported in this release.

<CONNECTION_PROPERTIES>/

<PROPERTY>/AUTH_ALIAS

Alias name for authentication credentials.

Y

An Alias name mapping to a principal and password combination specified in the following tags.

<CONNECTION_PROPERTIES>/

<PROPERTY>/PRINCIPAL

Authentication principal name.

Y

Principal name used in authentication to connect to the Hive Server.

<CONNECTION_PROPERTIES>/

<PROPERTY>/PASSWORD

Authentication password.

Y

Password used in authentication to connect to the Hive Server.

<CONNECTION_PROPERTIES>/

<PROPERTY>/KRB_GSSJAAS_FILE_NAME

A keytab file containing pairs of Kerberos principals and an encrypted copy of that principal's key.

Y

This file should be copied to the location specified in <HIVE_LIB_PATH>.

<CONNECTION_PROPERTIES>/

<PROPERTY>/KRB_REALM_FILE_NAME

REALM configuration file.

Y

This file should be copied to the location specified in <HIVE_LIB_PATH>.

InteractionVariable Name

Significance and Expected Value

Mandatory

<Layer name="GENERAL">

InteractionGroup name=”WebServerType”

VARIABLE NAME

Identifies the Infodom.

The variable must be provided as follows:

<Variable name=”SWIFTINFO”>CSTF807INFO</Variable>

Yes

WEBAPPSERVERTYPE

Identifies the web application server on which the OFSAA Infrastructure web components are deployed.

Set the following numeric value depending on the type of web application server:

·        Apache Tomcat = 1

·        IBM WebSphere Application Server = 2

·        Oracle WebLogic Server = 3

For example, <InteractionVariable

name="WEBAPPSERVERTYPE">3</InteractionVari able>

Yes

InteractionGroup name=”OFSAA Infrastructure Server Details”

DBSERVER_IP

Identifies the hostname or IP address of the system on which the Database Engine is hosted.

Note: For RAC Database, the value must be NA. For example, <InteractionVariable name="DBSERVER_ IP">14.15.16.17</InteractionVariable> or

<InteractionVariable name="DBSERVER_ IP">dbhost.server.com</InteractionVariable>

Yes

InteractionGroup name=”Database Details”

ORACLE_SID/SERVICE_NAME

Identifies the Oracle DB Instance SID or SERVICE_NAME

Note: The Oracle_SID value must be exactly the same as it is mentioned in JDBC_URL.

For example, <InteractionVariable name="ORACLE_SID/SERVICE_

NAME">ofsaser</InteractionVariable>

Yes

ABS_DRIVER_PATH

Identifies the directory where the JDBC driver (ojdbc<version>.jar) exists. This would typically be the $ORACLE_HOME/jdbc/lib directory.

For example, <InteractionVariable name="ABS_DRIVER_ PATH">">/oradata6/revwb7/ oracle </InteractionVariable>

Note: See the JDBC Jar files to identify the correct ojdbc<version>.jar version to be copied.

Yes

InteractionGroup name=”OLAP Detail

OLAP_SERVER_ IMPLEMENTATION

Identifies whether the OFSAA Infrastructure OLAP component needs to be configured. It depends on whether you intend to use the OLAP feature. The following numeric value must be set depending on the choice:

·        YES: 1

·        NO: 0

Note: If the value for OLAP_SERVER_IMPLEMENTATION is set to 1, the installer checks if the following environment variables are set in  the .profile file:

·        ARBORPATH

·        HYPERION_HOME

·        ESSBASEPATH

No

InteractionGroup name=”SFTP Details”

SFTP_ENABLE

Identifies if the SFTP (Secure File Transfer Protocol) feature is to be enabled. The following numeric value must be set depending on the choice:

·        SFTP: 1

·        FTP: 0

Yes

NOTE: The default value for SFTP_ENABLE is 1, which signifies that SFTP is used. Oracle recommends using SFTP instead of FTP because SFTP is more secure. However, you can ignore this recommendation and use FTP by setting SFTP_ENABLE to 0. You can change this selection later from the OFSAAI administration interface.

Set SFTP_ENABLE to -1 to configure ftpshare and web local path as local path mounted for OFSAAI server.

FILE_TRANSFER_PORT

Identifies the port used for the file transfer service. The default value specified is 22 (SFTP). Specify the value as 21 or any other PORT value if the value for SFTP_ENABLE is 0.

For example, <InteractionVariable name="FILE_TRANSFER_ PORT">21</InteractionVariable>

Yes

InteractionGroup name=”Locale Detail”

LOCALE

Identifies the locale information to be used during the installation. This release of the OFSAA Infrastructure supports only US English.

For example, <InteractionVariable name="LOCALE">en_US</InteractionVariable>

Yes

InteractionGroup name=”OFSAA Infrastructure Communicating ports"

Note: The following ports are used internally by the various OFSAA Infrastructure services. The default values mentioned are set in the installation. If you intend to specify a different value, update the parameter value accordingly, ensure that the port value is in the range 1025 to 65535, and the respective port is enabled.

JAVAPORT

9999

Yes

NATIVEPORT

6666

Yes

AGENTPORT

6510

Yes

ICCPORT

6507

Yes

ICCNATIVEPORT

6509

Yes

OLAPPORT

10101

Yes

MSGPORT

6501

Yes

ROUTERPORT

6500

Yes

AMPORT

6505

Yes

InteractionGroup name="Web Details"

Note: If the value for HTTPS_ENABLE is set to 1, ensure that you have a valid certificate available from a trusted CA and it is configured on your web application server. For more details on configuring your setup for HTTPS.

HTTPS_ENABLE

Identifies whether the UI must be accessed using HTTP or HTTPS scheme. The default value is set to 0. The numeric value must be set depending on the following options:

·        YES: 1

·        NO: 0

For example, <InteractionVariable name="HTTPS_ENABLE">0</InteractionVariable>

Yes

WEB_SERVER_IP

Identifies the HTTP Server IP/ Hostname or Web Application Server IP/ Hostname, to be used to access the UI. This IP is typically the HTTP Server IP.

If a separate HTTP Server is not available, then the value must be Web Application Server IP/Hostname.

For example, <InteractionVariable name="WEB_SERVER_ IP">10.11.12.13</InteractionVariable>

or

<InteractionVariable name="WEB_SERVER_ IP">myweb.server.com</InteractionVariable>

No

WEB_SERVER_PORT

Identifies the Web Server Port, which is typically 80 for non SSL and 443 for SSL. If a separate HTTP Server exists, the port value must be the value configured for the Web Server.

Warning: The installer will not accept the port value as:

·        80, if the HTTPS_ENABLE variable is 1

·        443, if the HTTPS_ENABLE variable is 0

For example, <InteractionVariable name="WEB_ SERVER_PORT">80</InteractionVariable>

No

CONTEXT_NAME

Identifies the web application context name which is used to build the URL to access the OFSAA application. You can identify the context name from the following URL format:

<scheme>://<host>:<port>/<context-name>/ login.jsp

The following is an example:

https://myweb:443/ofsaadev/login.jsp

For example, <InteractionVariable name="CONTEXT_ NAME">ofsaadev</InteractionVariable>

Yes

WEBAPP_CONTEXT_PATH

Identifies the absolute path of the exploded EAR file on the web application server.

·        For Tomcat, specify the Tomcat directory path till /webapps. For example, /oradata6/ revwb7/tomcat/webapps/.

·        For WebSphere, specify the WebSphere path as <WebSphere profile directory>/installedApps/<NodeCellName>. For example, / data2/test//WebSphere/AppServer/profiles/<Profile_Name>/installedApps/aiximfNode01Cell, where aix-imf is the Host name.

·        For WebLogic, specify the WebLogic home directory path. For example as /<WebLogic home directory path>/bea/wlserver_10.3

Note: For WebLogic, the value specified for this attribute is ignored and the value provided against the attribute WEBLOGIC_DOMAIN_HOME is considered.

Yes

WEB_LOCAL_PATH

Identifies the absolute path to any directory on the web application server that can hold temporary files, which are uploaded as part of the applications usage.

Set this in the FTPSHARE location.

Note: During a clustered deployment, ensure that this path and the directory are the same on all the nodes.

Yes

InteractionGroup name="Weblogic Setup Details”

WEBLOGIC_DOMAIN_HOME

Identifies the WebLogic Domain Home.

For example, <InteractionVariable name="WEBLOGIC_DOMAIN_

HOME">/home/weblogic/bea/user_ projects/ domains/mydomain

</InteractionVariable>

Yes.

Specify the value only if WEBAPPSERVERTYPE is set as 3 (WebLogic)

InteractionGroup name="OFSAAI FTP Details”

OFSAAI_FTPSHARE_PATH

Identifies the absolute path of the directory that is identified as the file system stage area.

Note: The directory must exist on the same system on which the OFSAA Infrastructure is being installed (can be on a separate mount).

The user mentioned in the APP_SFTP_USER_ID parameter in the following example must have RWX permission on the directory.

For example, <InteractionVariable name="APP_FTPSHARE_PATH">">/oradata6/revwb7/ftpshare</ InteractionVariable>

Yes

OFSAAI_SFTP_USER_ID

Identifies the user who has RWX permissions on the directory identified for the parameter APP_FTPSHARE_PATH.

Yes

OFSAAI_SFTP_PRIVATE_KEY

Identifies the SFTP private key for OFSAAI.

For example,

<InteractionVariable name="OFSAAI_SFTP_PRIVATE_KEY">/home/ofsaapp/.ssh/id_rsa</InteractionVariable>

By default, the value is NA, which indicates that, for authentication, you are prompted to enter the password for the user <OFSAAI_SFTP_USER_ ID>.

For more information on how to generate an SFTP Private key, see the Setting Up SFTP Private Key section.

No

OFSAAI_SFTP_PASSPHRASE

Identifies the passphrase for the SFTP private key for OFSAAI.

For example,

InteractionVariable name="OFSAAI_SFTP_PASSPHRASE">enter a pass phrase here</InteractionVariable>

By default, the value is NA.

If the OFSAAI_SFTP_PRIVATE_KEY value is given and the OFSAAI_SFTP_PASSPHRASE value is NA, then the passphrase is identified as empty.

No

Property Name

Description of Property

Permissible Values

Comments

UPLOAD_MODEL

To perform the Model Upload.

0: No

1: Yes

Mandatory

MODEL_TYPE

The released data model or customized data model.

0: Released

1: Customized

Mandatory only if you want to upload the data model.

DATAMODEL

The path for the customized data model.

Not Applicable

Mandatory only if you want to upload the customized data model.

DM_DIRECTORY

The file name for the customized data model.

Not Applicable

Mandatory only if you want to upload the customized data model.

Property Name

Description of Property

Permissible values

Comments

LOG_MODE

Mode for logging

0 = Debug

1= General

# Optional; Default: 0

HIVE_APPFTP_LOG_PATH

Infodom Maintenance log path(to be created) for the new Infodom

Example:

/scratch/ofsaa/ftpshare/BCEINFO/logs

# Mandatory to create a new Information Domain

HIVE_DBFTP_LOG_PATH

Information Domain Maintenance log path(to be created) for the new Information Domain for DB Layer

Example:

/scratch/ofsaa/ftpshare/BCEINFO/logs

# Mandatory to create a new Information Domain

HIVE_UPLOAD_MODEL

Whether you want to perform Model Upload on hive infodom

0 = No

1 = yes

# Mandatory

HIVE_MODEL_TYPE

Released data model or Customized data model for model upload process

0 = released

1 = customized

# Option selected for HIVE_MODEL_TYPE=0

HIVE_DATAMODEL

The file name for the customized data model in Hive

Not Applicable

# Mandatory only in the case of uploading the customized data model

# Option selected for HIVE_MODEL_TYPE=1

HIVE_DM_DIRECTORY

The path for the customized data model in Hive

Not Applicable

# Mandatory only in the case of uploading the customized data model

# Option selected for

HIVE_MODEL_TYPE=1

ENABLE_CONCURRENCY

#Support for Parallelism

0 = No

1 = Yes

#Optional

CONCURRENCY_LEVEL

#Support for Parallelism

Example:

CONCURRENCY_LEVEL=10, which means 10 threads are triggered to handle the processing of fsapps.

#Optional

File Name

Directory

OFS_IBCE_SCHEMA_IN.xml

OFS_IBCE_SCHEMA_BIGDATA_IN.xml

OFS_IBCE_PACK/schema_creator/conf

OFS_IBCE_SCHEMA_IN.OUTPUT.xml

OFS_IBCE_PACK/schema_creator/

Silent.props

OFS_IBCE_PACK/appsLibConfig/conf

NOTE

Explicit Grants to the User are required. Grants assigned through Roles are not supported.

NOTE

If there are any errors during the SQL script execution, reconfigure the OFS_IBCE_SCHEMA_IN.xml file and repeat steps in this procedure to execute the utility. This regenerates the script with the correct information.

NOTE

If there are any errors during the SQL script execution, reconfigure the OFS_IBCE_SCHEMA_IN.xml and/or OFS_IBCE_SCHEMA_ BIGDATA_IN.xml files and repeat steps in this procedure to execute the utility. This regenerates the scripts with the correct information.

NOTE

See the sysdba_output_scripts.log file for execution status. If there are any errors, contact My Oracle Support (MOS). If there are no errors in the execution, the log file is empty.

NOTE

See the sysdba_output_scripts.log file for execution status. If there are any errors, contact Oracle Support Services. If there are no errors in the execution, the log file is empty.

NOTE

You must use the same config schema user name as the previous Application Pack.

NOTE

If there are any errors, contact Oracle Support Services.

ATTENTION

Before you begin the installation, ensure you have configured and executed the following files:

1.     Configure the OS File System Settings and Environment Settings in the .profile File. Add TNS Entries in TNSNAMES.ORA File.

2.     Configure the OFS_IBCE_PACK.xml File.

3.     Configure the Schema Creator Utility:

·        Configure the OFS_IBCE_SCHEMA_IN.xml File (for RDBMS installation)

·        Configure the OFS_IBCE_SCHEMA_BIGDATA_IN.xml File (for Big Data installation)

4.     Configure the OFSAAI_InstallConfig.xml File (Do not configure this file if an installation of OFSAAI 8.1 already exists).

5.     Configure the Silent.props file:

·        Silent.template for RDBMS

·        Silent.BIGDATA.template for Stage and Results on Hive

6.     Execute the Schema Creator Utility.

NOTE

When installing OFSBCE on the Solaris OS, the following error occurs:

FICDB LIBRARIES WILL NOT BE DEPLOYED AS DEFAULT COMBINATION solaris11/oracle19.0 IS NOT AVAILABLE IN KIT.

You can ignore this error.

NOTE

When installing OFSBCE on an integrated environment, the following error occurs:

ORA-01427: single-row subquery returns more than one row.

You can ignore this error.

NOTE

Enter the password to access the OFSBCE Hive directory FTPSHAREH in the application server.

NOTE

When installing OFSBCE on the Solaris OS, the following error occurs:

FICDB LIBRARIES WILL NOT BE DEPLOYED AS DEFAULT COMBINATION solaris11/oracle19.0 IS NOT AVAILABLE IN KIT.

You can ignore this error.

NOTE

When installing OFSBCE on an integrated environment, the following error occurs:

ORA-01427: single-row subquery returns more than one row.

You can ignore this error.

NOTE

Configuring the OFSAAI_InstallConfig.xml file is not required in this scenario.

NOTE

While defining the schema details for the application packs, provide the same schema details given in the previous v8.1.0.0.0 installation of the other application pack. The output file OFS_BFND_SCHEMA_OUTPUT.xml is generated as a result of the schema creation process.
