4 Manage Transactions

The Transaction Maintenance module allows you to investigate and correct errors in the external system transactions. You can review the transactions that were flagged by the automated audit process.

Transactions may have many types of errors, which need to be reviewed and corrected manually. In addition, it is also possible to review and edit the data from missing transactions or transactions that have passed the automated audit. Corrected transactions are exported to external systems by a batch program.

You can use the Transaction Maintenance window to view, create, and edit transactions.

Figure 4-1 Transaction Maintenance Window

Transaction Maintenance Window

View Errors

To view errors:

  1. On the Transaction Maintenance window, from the More Actions menu, select Errors. The Sales Audit Errors window appears. You can view all the errors associated with the transaction in this window.

  2. Click OK to close the window.

Refresh the Errors

To refresh the errors:

  1. On the Transaction Maintenance window, from the More Actions menu, select Refresh Errors.

    The errors are refreshed taking into account any updates that were made to the transaction.

    Note:

    When refreshing errors, Total and Store Day Level rules are not included during the refresh.

Create a Transaction

To create a transaction:

  1. From the Tasks menu, select Operations > Manage Transactions. The Transaction Search window appears.

  2. Select Actions > Create. The Transaction Maintenance window appears.

    Note:

    You can also navigate to the Transaction Maintenance window by selecting Operations > Create Transaction.

  3. In the Chain field, enter a chain number.

  4. In the Store field, enter the store ID.

  5. In the Business Day field, enter a date, or click the calendar button and select a date.

    Entering a store results in opening a Search and Select pop-up which allows you to select a Business Date. The selection of store and business automatically populates the Chain, Banner and Business Date fields if they were not entered.

  6. In the Transaction Date/Time field, enter the date and time the transaction occurred.

    Note:

    The External Transaction field displays the transaction number that was used by the external system.

  7. In the Transaction Type field, enter the type of transaction you are creating.

    Note:

    Depending on the type of transaction you select, additional fields are enabled. Enter the appropriate information in the enabled fields.

  8. Add any of the following details to the transaction as needed:

    • Transaction Attributes to a transaction.

    • Reference field values to a transaction.

    • Paid out details to a transaction.

    • Items to a transaction.

    • Tax to the items on a transaction.

    • Discount to the item on a transaction.

    • Tender records to a transaction.

    • Customer information and attributes to a transaction.

    • Tax details to a transaction, if the store accepts transaction level tax.

  9. Click Save and Close to save your changes and close the window.

    Note:

    You cannot create a transaction that contains an error. The respective validations are performed upon clicking Save and Close.

Add Transaction Attributes

  1. On the Transaction Maintenance window, click the arrow next to the Transaction Attributes section. The Transaction Attributes section is expanded.

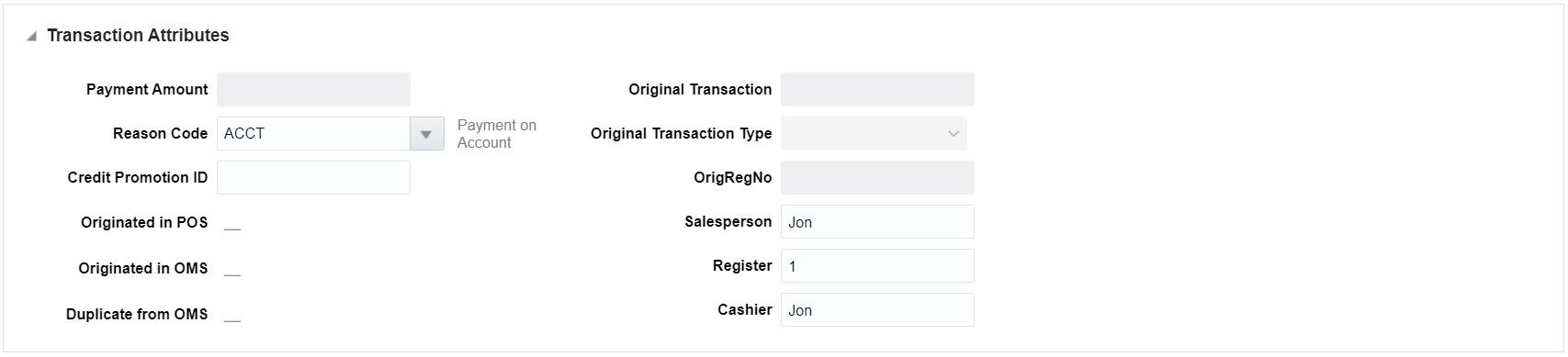

    Figure 4-2 Transaction Attributes

    Transaction Attributes

  2. Enter the information as required.

Add Reference Information

  1. On the Transaction Maintenance window, click the arrow next to the Reference section. The Reference section is expanded.

    Figure 4-3 Reference Section on the Transaction Maintenance Window

    Reference Section on the Transaction Maintenance Window

  2. In the Reference fields, enter the reference information as needed.

Add Paid Out Details

To add paid out details to a transaction:

  1. On the Transaction Maintenance window, expand the Paid Out Details section.

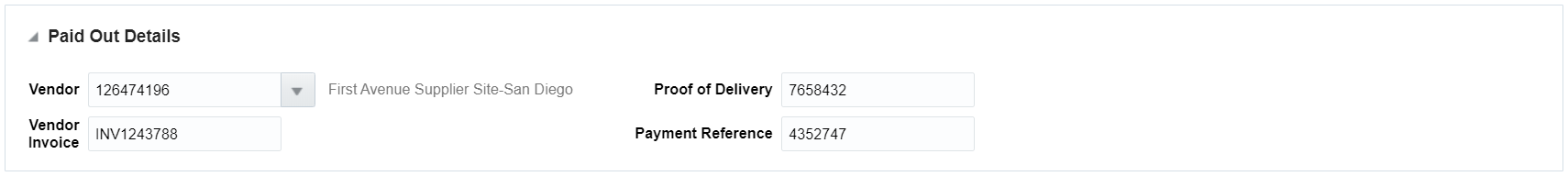

    Figure 4-4 Paid Out Details

    Paid Out Details

  2. In the Vendor field, enter a vendor number.

  3. In the Vendor Invoice No. field, enter a vendor invoice number.

  4. In the Proof of Delivery No. field, enter a proof of delivery number.

  5. In the Payment Reference No. field, enter a payment reference number.

  6. Click OK to save your changes and close the window.

Add Item Information

You can use the following procedures to add item information to a transaction.

To Add an Item to a Transaction

  1. On the Transaction window, in the Items section, select Actions > Add. The Add Item window appears.

  2. Select the Item Type.

  3. Enter the Item ID. Details such as Unit Retail, Selling UOM are defaulted and can be overridden.

    Figure 4-5 Transaction - Add Item Window

    Transaction - Add Item Window

  4. Enter details such as Quantity and Item Status.

  5. Click OK to save your changes and close the window.

To Add Return Reason Code

  1. On the Transaction Maintenance window, in the Items section, select Actions > Edit. The Edit Item window appears.

  2. In the Item Status field, select Return. The Return Reason field is activated.

  3. In the Return Reason field, select the return reason code.

  4. Click OK to save your changes and close the window.

Add Customer Order Information

  1. On the Transaction Maintenance window, in the Items section, select Actions > Edit. The Edit Item window appears.

  2. In the Customer Order Attributes section, select the type of sales from the Sales Type field.

  3. Update the other fields as required.

    Figure 4-6 Add Item Window

    Add Item Window

  4. Click OK to save your changes and close the window.

Override Price Information

  1. On the Transaction Maintenance window, in the Items section, select Actions > Edit. The Edit Item window appears.

  2. In the Price Override section, enter the override reason in the Override Reason field.

  3. In the Original Unit Retail field, enter the original retail of the item.

  4. Click OK to save your changes and close the window.

Add Item Taxes

  1. In the Items section, click the arrow next to Item Details.

    The Items Details section is expanded. You can add taxes and discounts here.

    Figure 4-7 Item Details Section on the Transaction Maintenance Window

    Item Details Section on the Transaction Maintenance Window

To add Taxes at the Item Level, follow the below steps:

Figure 4-8 Add Tax

Add Tax screen

  1. Enter the Tax Authority.

  2. Select the Tax Code from the list.

  3. Enter the Tax Rate Type. This field is only displayed if GTS is on in the system.

  4. Enter the Total Tax Amount and the Tax Rate.

  5. Enter the values in the Reference Fields as required.

  6. Click OK to save your changes and close the window.

Add Item Discounts

  1. In the Items section, click the arrow next to Discounts to expand the discounts section. Click Actions > Add. The Add Discount window appears.

  2. In the Component Type field, select the type of promotion or discount you are creating.

    • If you are creating a promotion, in the Promotion field, enter the promotion.

    • If you are creating a discount, from the Discount Type field, select the type of discount that you want to apply to the item.

    Figure 4-9 Add Discount Window

    Add Discount Window

  3. In the Promotion Component field, edit the component of the promotion as necessary.

  4. In the Coupon No. field, enter the ID of the promotion or discount.

  5. In the Quantity field, enter the quantity for the discount.

  6. In the Unit Discount Amount field, enter the amount of the discount.

  7. Add the appropriate reference information.

  8. Click OK to save your changes and close the window.

Add Comments

To add comments:

  1. On the Transaction Maintenance window, from the More Actions menu, select Comments. The Comments window appears.

  2. Select Actions > Add. The next line in the table is enabled for commenting.

    Figure 4-10 Comments Window

    Comments Window

  3. Enter your comments.

  4. Click OK to save your changes and close the window.

Add Tenders

To add tender information to a transaction:

  1. On the Transaction Maintenance window, in the Tender section, select Actions > Add. The Add Tender window appears.

  2. In the Tender Type Group field, select the tender type group.

  3. In the Tender Type field, select the tender type.

  4. In the Amount field, enter the tender amount.

    Figure 4-11 Add Tender Window

    Add Tender Window

    You can enter details in the respective sections based on the tender type you select.

  5. If you select a type of card payment in the Tender Type Group field the Credit Card section is enabled:

    1. In the Authorization No. field, enter the authorization for user ID.

    2. In the Token field, enter the credit card token.

    3. In the remaining fields, select the information needed.

      Figure 4-12 Credit Card Section on the Transaction Maintenance - Add Tender Window

      Credit Card Section on the Transaction Maintenance

    4. Click OK to save your changes and close the window.

      Note:

      The Token field is only available when the selected Tender Type Group is either Credit Card, Debit Card, PayPal, Fonacot or Others. The section label is updated dynamically, based on the selected Tender Type Group. For example, if you select the Tender Type Group Debit Card, the section is labeled Debit Card.

  6. You can add user-defined reference information to a type of tender in the Reference section.

  7. Click OK to save your changes and close the window.

Add Customer Information

To add customer information to a transaction:

  1. On the Transaction Maintenance window, expand the Customer section.

  2. In the Identification Type field, select the source of the customer information.

  3. In the Identification No. field, enter the ID from the source document selected in the Identification Type field.

  4. In the remaining fields, enter the name and the address information for the customer.

    Figure 4-13 Transaction Maintenance Window - Customer Section

    Transaction Maintenance Window

  5. In the Customer Attributes section, select Actions > Add. The Add Customer Attribute window appears.

  6. In the Attribute Type field, select the attribute type.

  7. In the Attribute field, enter an attribute.

    Figure 4-14 Add Customer Attribute Window

    Add Customer Attribute Window

  8. Click OK to save your changes and close the window.

Add Transaction Tax

To add Taxes at the Transaction Level, follow the below steps:

  1. Select the Tax Code from the list.

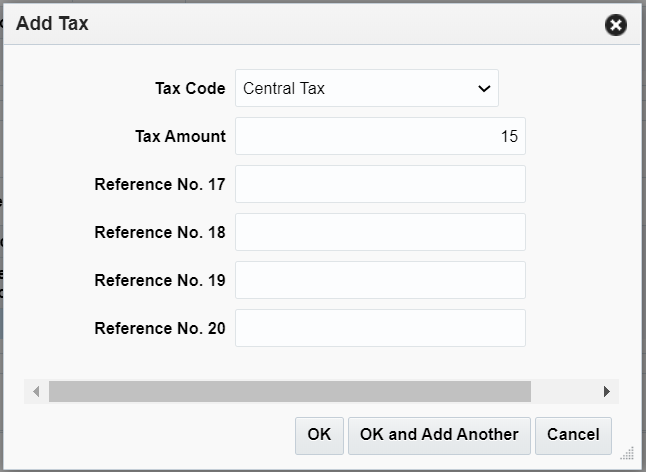

    Figure 4-15 Add Tax

    Add Tax dialog

  2. Enter the Tax Amount.

  3. Enter values for the Reference Fields as required.

  4. Click OK to save your changes and close the window.

Edit a Transaction

To Edit a transaction:

  1. From the Tasks menu, select Operations > Manage Transactions. The Manage Transactions window appears.

  2. Enter search criteria to find the transaction that you want to view and click Search.

  3. Select the transaction from the Results table.

  4. Select Actions > Edit. The Transaction Maintenance window appears in view mode.

  5. To edit any transaction data, go to the respective container, select an existing record and select Actions > Edit. The similar screens as mentioned above will be opened in the edit mode.

  6. Add or edit the values of the fields.

  7. Click Save and Close to save your changes and close the window.

    Note:

    Saving a transaction with errors, after editing is not restricted as it happens in the create mode. You are able to save an existing transaction that contains an error. The respective validations are performed upon clicking Save and Close.

View Transaction Audit Trails

To view the revisions of a transaction:

  1. On the Transaction Maintenance window, from the More Actions menu, select Transaction Audit Trail. The Transaction Audit Trail window displays an audit trail of all revisions to the transaction.

    Figure 4-16 Transaction Audit Trail Window

    Transaction Audit Trail Window

  2. Click OK to close the window.

View a Transaction

To view a transaction:

  1. From the Tasks menu, select Operations > Manage Transactions. The Manage Transactions window appears.

  2. Enter search criteria to find the transaction that you want to view and click Search.

  3. Select the transaction from the Results table.

  4. Select Actions > View. The Transaction Maintenance window appears in view mode.

  5. You can view all the information related to the transaction on this window.

  6. Click Done to close the window.
