Schedule Assessment Page

How to Get Here

Sign in to Construction Intelligence Cloud.
On the Project Listings page, select the Schedule Assessment KPI of a project.
On the Schedule Health page, select any metric in the Schedule Assessment section.

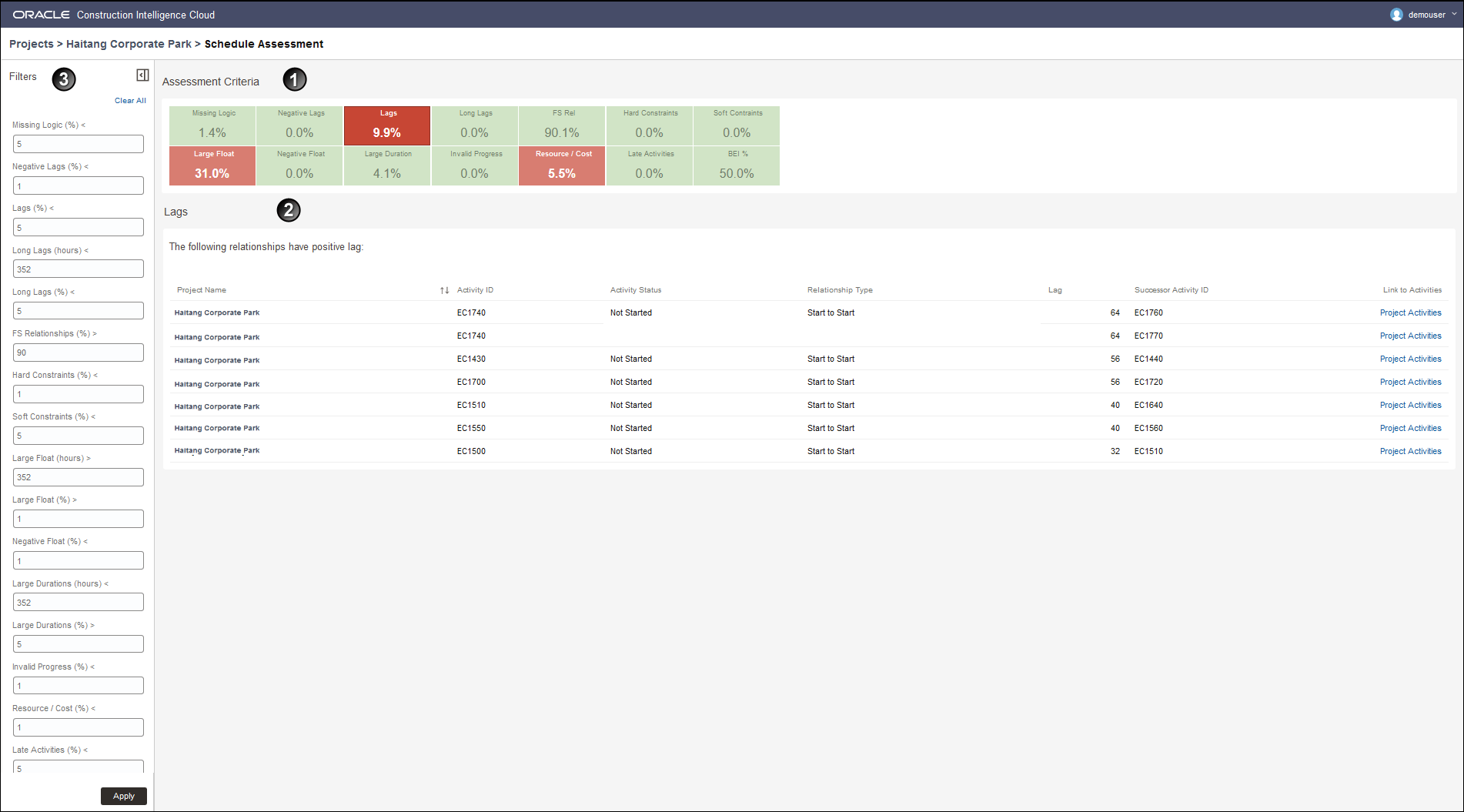

In the following example, Lags has been selected in the Schedule Assessment section.
In the Assessment Criteria section, select the metric again to view a list of associated problematic activities.
Select the Link to Activities to navigate to the specific activity and make changes to the project schedule.

The Schedule Assessment page allows you to drill down to the specific activities that have contributed towards a predicted value of a metric.

In the above example, clicking on the Lags metric displays the activities that are responsible for the predicted metric value.

This page includes the following sections:

Section Number	Section Title
1	Assessment Criteria Section.
2	Activity Details for Selected Metric Section
3	Filters Pane
