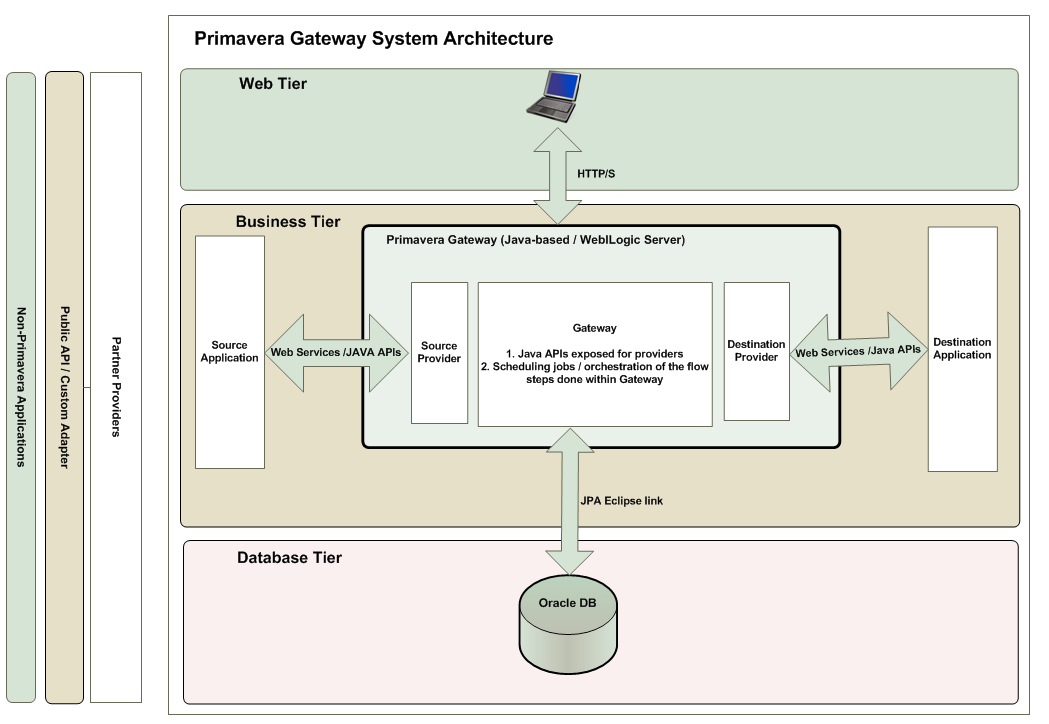

Primavera Gateway is a three-tier system that includes web, business, and database tiers. Each of these tiers provide specific functions to synchronize data between a source application and a destination application. The system architecture diagram below describes how these three tiers work together to synchronize data between applications.
The following table provides additional information about how the three tiers work together to synchronize data.
Tier | Description |
|---|---|
1. Web Tier | This tier provides a browser-based user interface. You use this interface to create, view, schedule, and monitor business flows to synchronize data between a source application and a destination application. |
2. Business Tier | This tier provides the provider logic that orchestrates the business flow steps and includes the Gateway Framework and the following providers:
The Gateway framework is a web application that is deployed on a WebLogic application server and provides the following functions:
|
3. Database Tier | This tier stores the Primavera Gateway schema and data, which includes the following items:
|
