3 GL File Format

The following table describes the various file formats supported by the GL Accounting Interface.

Delimann GL Format

Table 3-1 Delimann Format Header Structure

Field Name	Data Type	Description
Record Type	CHAR	“1”
Transaction code	CHAR	/
Record Date (YYYYMMDD)	CHAR	Date of Summary
Others	CHAR	/
Ship ID	CHAR	Ship-ID
Date of Summary Accounting Date (YYYYMMDD)	CHAR	Date of Summary (same as Record Date)
Month of Summary Date	CHAR	Month of Summary Date
Currency Code	CHAR	Currency Code
Record Number	CHAR	/
Reference Record Number	CHAR	Empty at the moment
End of Record Indicator	CHAR	/

Table 3-2 Delimann Segment Structure

Field Name	Data Type	Description
Record Type	CHAR	“2”
Department Flag	CHAR	Credit Amount = “40”, Debit Amount = “50”
Amount in Currency Code	CHAR	Amount (Total/Day)
Tax Amount	CHAR	Empty
VAT Descriptor	CHAR	/ (Not Used)
Position Text	CHAR	/ (Not Used)
Cruise ID	CHAR	Cruise ID (SCR_ITN_ID)
GL Company Code (GL Original)	CHAR	Company code
GL Department Code (GL_DEPARTMENT)	CHAR	Department Code
GL Main Account (GL_CONTROLACC)	CHAR	Gl Main Account code
GL Sub Account ID (GL SUBACC)	CHAR	GL Sub-Accoiunt ID
GL_MPM_ISSUE	CHAR	/
GL Material Code (GL_MATERIAL)	CHAR	/
Department ID	CHAR	Department ID
Department Description	CHAR	Department ID Description
End of Record Indicator	CHAR	/

Delimann Sample Output File

The following is the sample output file. The fields are separated by a semicolon (;) and each record is fed by line feed. The file name is saved in “XXXX_Application_Date” format.

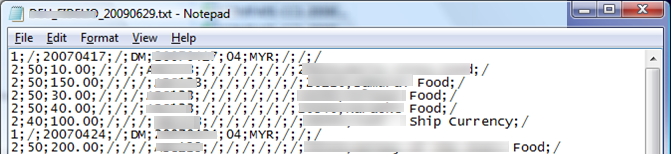

Figure 3-1 Sample Delimann Output File

AIDA GL Format

Table 3-3 Segment Structure for AIDA GL Format

Field Name	Data Type	Description
Company	CHAR	Acc GL Origin
Location	CHAR	Acc GL Dept
Center	CHAR	Acc GL Control Acc
Account	CHAR	Acc GL SubAccount
Analysis	CHAR	Acc GL Material
Intercompany	CHAR	Acc GL Mpm Issue
Debit	CHAR	Total debit amount
Credit	CHAR	Total credit amount
Department Code	CHAR	Department code (DEP_ID) or System account (UXP_A_SYS) when system account posts to department that are tagged with City Ledger (CL)
Description	CHAR	Cruise comment (SCR_COMMENT)

AIDA Sample Output File

The filename for this output format is in a Comma Separated Value (CSV) format and its columns are separated by a comma (,).

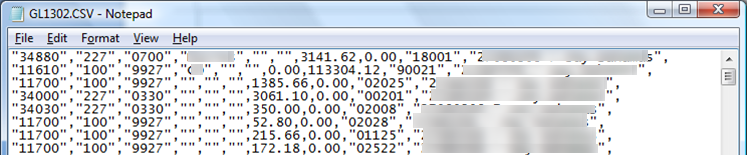

Figure 3-2 Sample AIDA Output File
