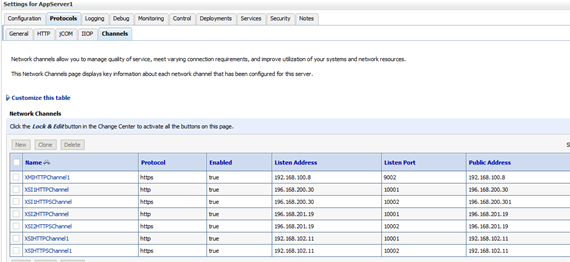

Service Capability Exposure Function User Guide OCSG Introduction Custom Configuration Add New XSI to OCSG Add New XSI to OCSG This procedure adds a new External Signaling Interface (XSI) to the Oracle Communications Services Gatekeeper (OCSG). Attach XSI interface to VMs. Configure ifcfg files so the network is configured and the IP address is picked up by the VM. Run these command to open ports in the firewall for the new XSI: sudo iptablesAdm append --type=rule --protocol=IPv4 --domain=01dsrapigw --table=filter --chain=INPUT --match='-m state --state NEW -m tcp -p tcp --dport 10001 -d <XSI-IP> -j ACCEPT' --persist=yes sudo iptablesAdm append --type=rule --protocol=IPv4 --domain=01dsrapigw --table=filter --chain=INPUT --match='-m state --state NEW -m tcp -p tcp --dport 10002 -d <XSI-IP> -j ACCEPT' --persist=yes Access the DSR API GW Admin console using https://<Admin-Server-XMI-IP>:9002/console. Login using the admin account created when configuring the API GW. The default username is weblogic. Navigate to Environment, and then Servers, and then AppServerx, and then Protocols, and then Channels. Click Lock & Edit. Add new channels. Each channel name should be unique. Change the name, protocol, IP and port. Leave the rest of the options as default. Add a channel for the new XSI IP and 10001 for http protocol. Add another channel for XSI and 10002 for https protocol. Figure A-8 Add New XSI to OCSG
