Change SNMP Version

This procedure is performed on each AppServer.
  1. Access the DSR API GW Admin console using https://<Admin-Server-XMI-IP>:9002/console.
  2. Login using the admin account created when configuring the API GW.
    The default username is weblogic.
  3. Navigate to OCSG, and then AppServerx, and then Container Services, and then SnmpService, and then Attributes (tab).
  4. Change the SNMPVersion to 1 or 2.
  5. Mark the associated checkbox and click Update Attributes.

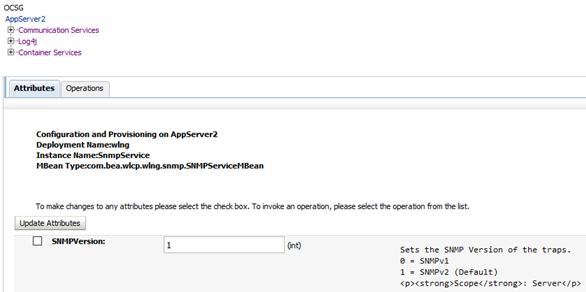

Figure A-3 Change SNMP Version

img/change-snmp-version.png
